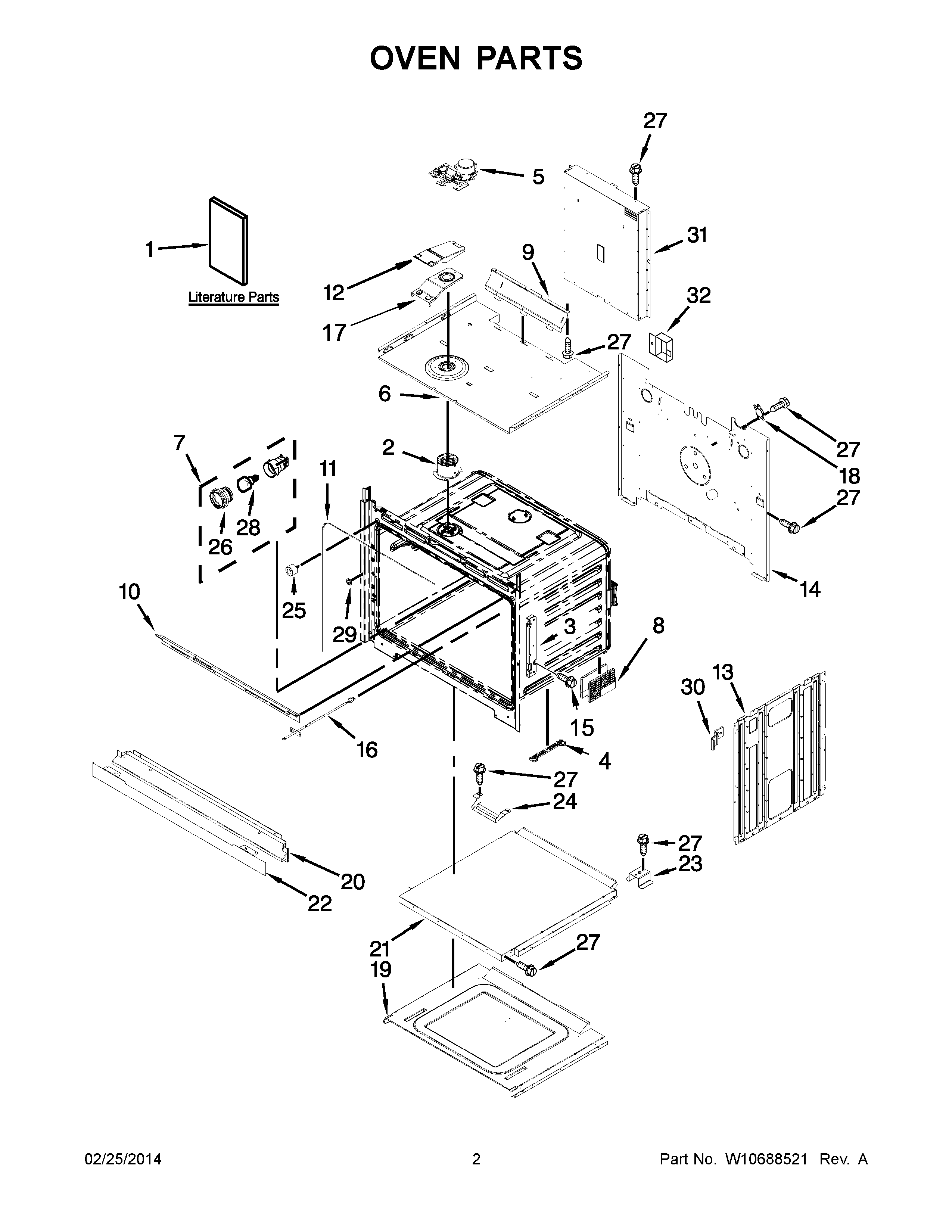

MEW7530AS02 02 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10507057
1	MAY W10354192
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10641573
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10671661
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
15	MAY W10254050
16	MAY 7430P043-60
17	BASE, VENT EXHAUST
18	THERMOSTAT
19	MAY W10282900
20	MAY W10327373
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	MAY W10351236
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10412711
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
