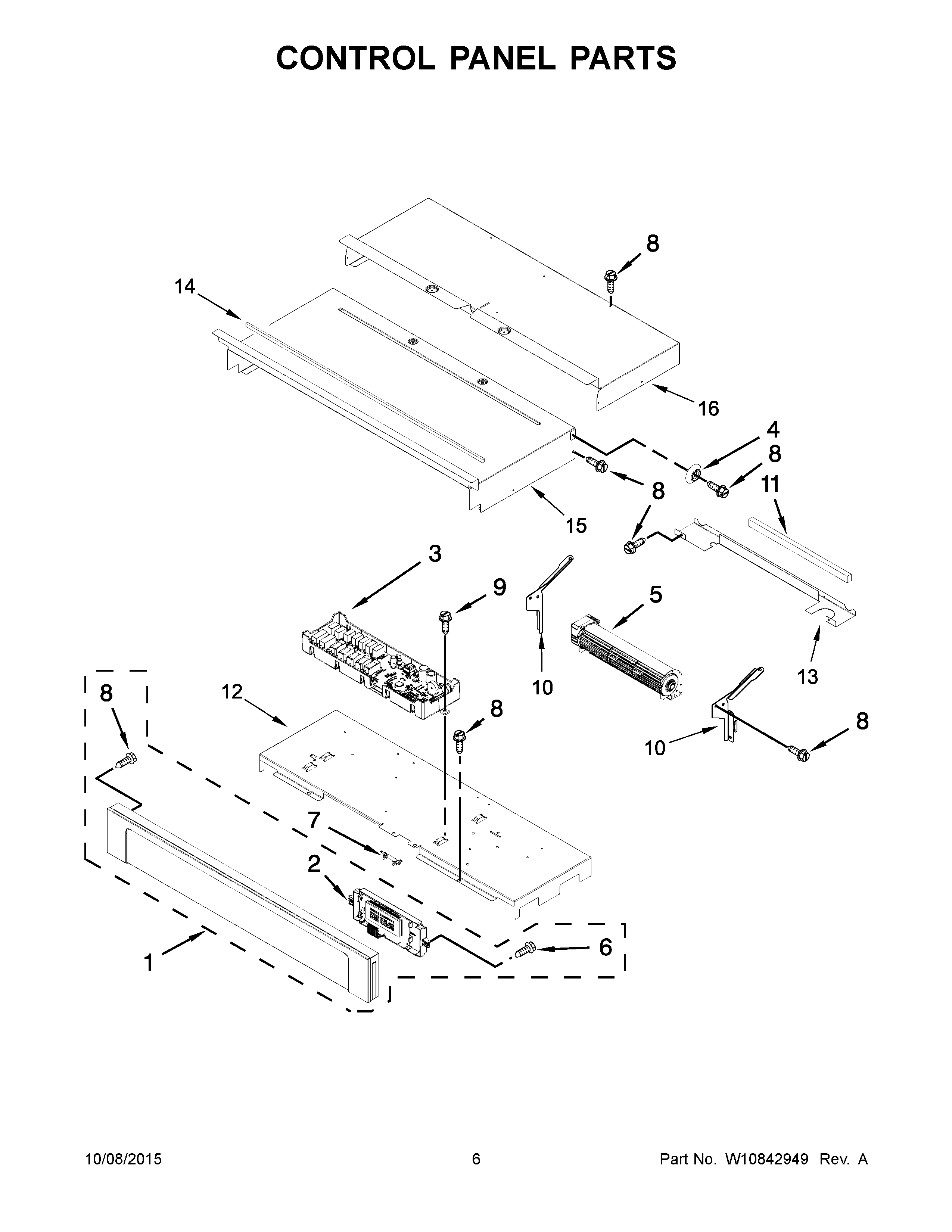

MEW7530DB01 04 – CONTROL PANEL PARTS

MEW7530DB01 04 – CONTROL PANEL PARTS

Written by

in

MEW7530DB01 04 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10812313
1AMAY W10812315
1BMAY W10812314
2INTERFACE (MAXWELL), USER BOARD
3MAY W10758877
4SPACER, LATERAL
5MAY W10641253
6MAY 7101P403-60
7MAY W10545255
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12MAY W10347650
13CHASSIS, BACK DIVIDER
14MAY W10657548
15MAY W10318192
16CHASSIS, COVER TOP BACK 30"
