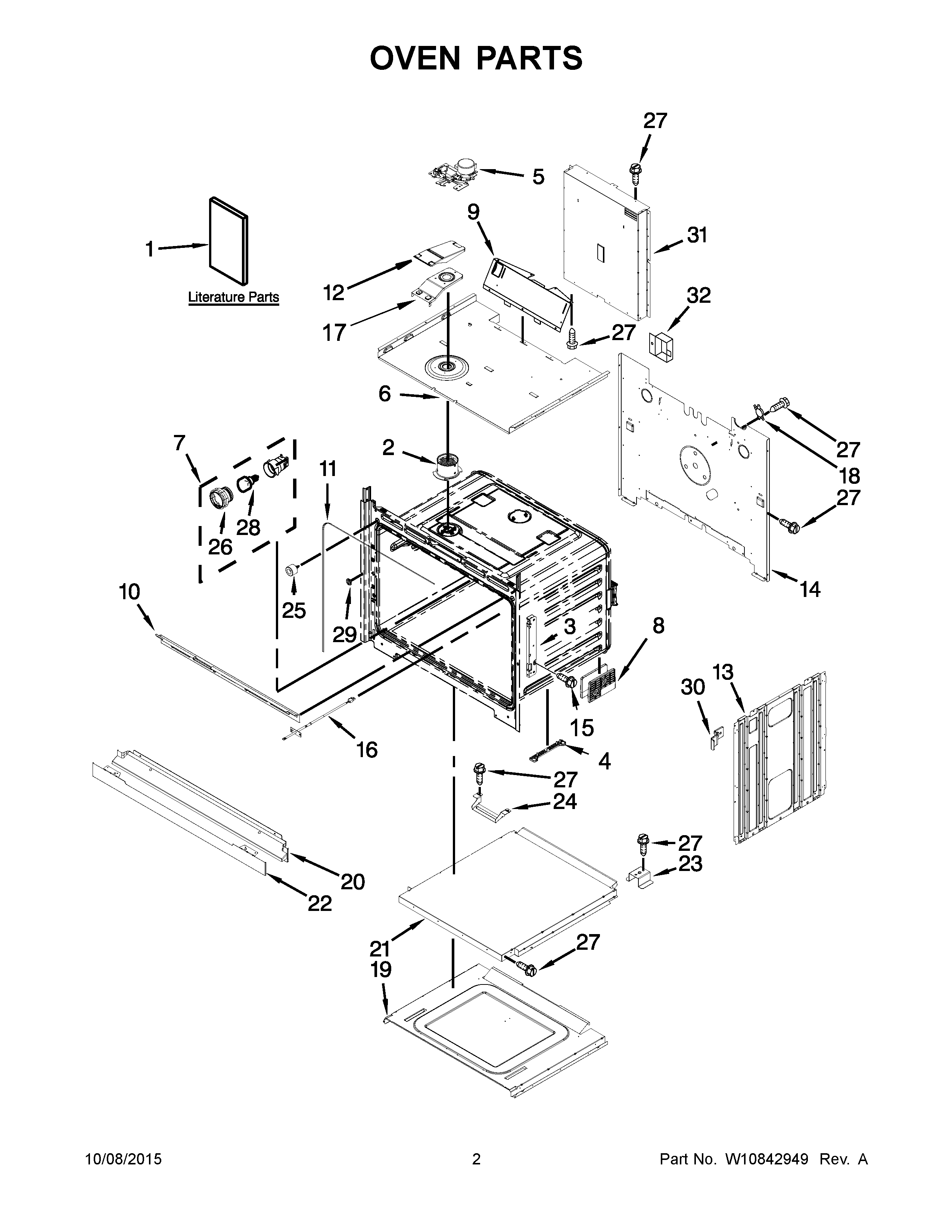

MEW7530DE01 02 – OVEN PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	WIRING HARNESS PARTS, CONDUIT, SINGLE
NI	MAY W10775302
NI	STRAP, LEAD GROUND
NI	BRACKET, HARNESS
NI	CLAMP, CONDUIT
NI	INSULATION, WRAP
NI	HARNESS, DOOR LATCH
NI	MAY W10282944
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, EOL (MRC)
NI	MAY 4450800
1B	INSTRUCTIONS, UNDERCOUNTER INSTALL
1C	MAY W10796080
1	MAY W10674133
1A	MAY W10795607
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	MAY W10314880
6	MAY W10813743
7	MAY W10734063
8	FOOT, BASE
9	MAY W10641572
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813703
15	MAY W10254050
16	MAY W10622170
17	BASE, VENT EXHAUST
18	THERMOSTAT
19	MAY W10282900
20	MAY W10327373
20A	MAY W10506348
20B	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22A	MAY W10504026
22B	TRIM, BOTTOM VENT (STAINLESS)
22	MAY W10351236
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10412711
29	MAY W10283016
30	MAY W10618106
31	DUCT, CHASSIS BACK
32	MAY 8285593
