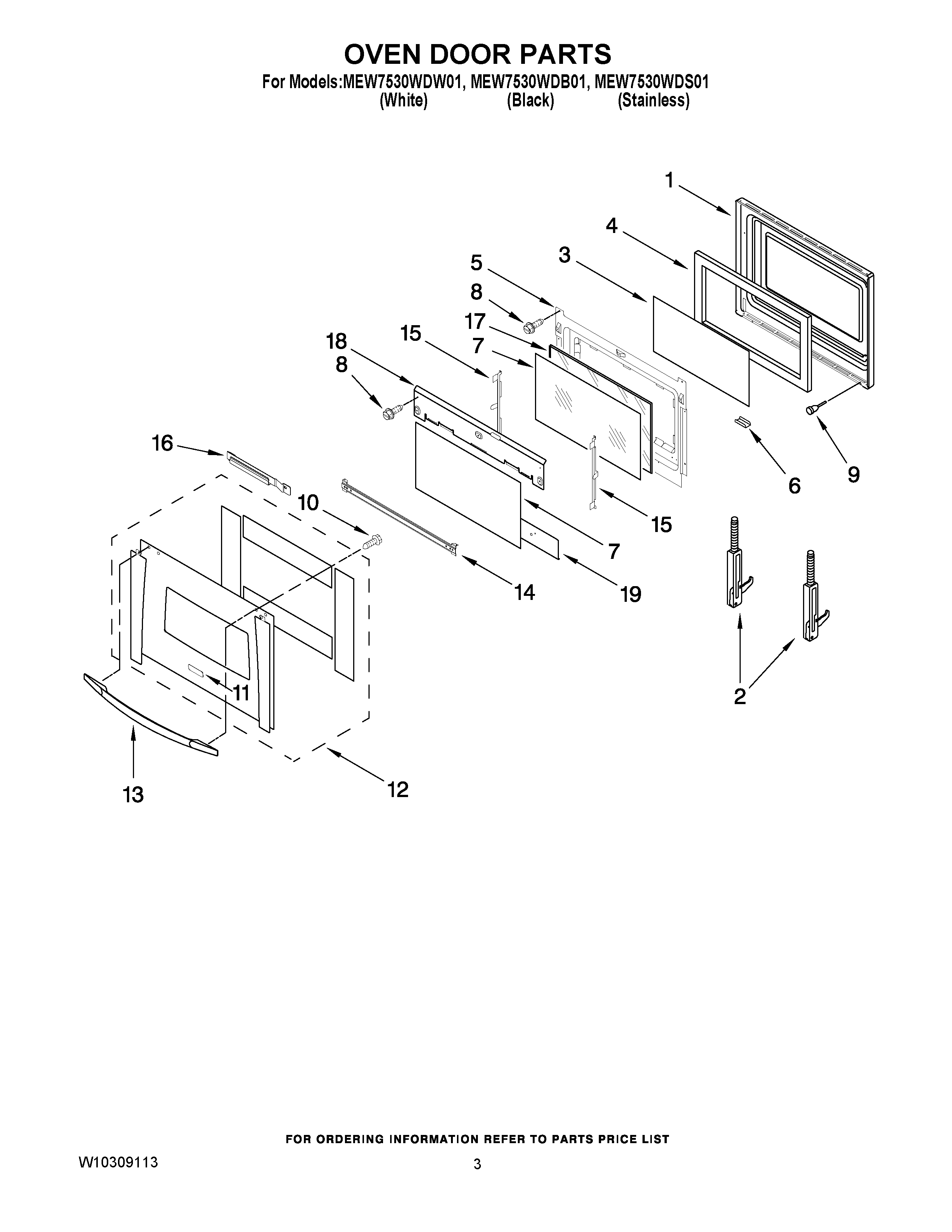

MEW7530WDB01 02 – OVEN DOOR PARTS
Written by
in
MEW7530WDB01 02 – OVEN DOOR PARTS
Products
Position
Product
1
MAY 9759413
2
HINGE, DOOR (SS ONLY) (RIGHT)
2
HINGE, DOOR (SS ONLY) (LEFT)
2
HINGE, DOOR (RIGHT)
2
HINGE, DOOR (LEFT)
3
MAY 4449259
4
MAY 4451722
5
MAY 4457132
6
RETAINER, GLASS CLIP (BLACK)
7
MAY 9759225
8
MAY 4449809
9
MAY 4448520
10
MAY 4449743
11
BADGE (BLACK)
12
MAY W10270347
12
MAY W10270349
12
MAY W10270350
13
MAY W10269407
13
MAY W10161708
13
MAY W10269408
14
MAY W10256645
15
MAY 9759229
16
MAY 9759230
17
MAY 9759228
18
SHIELD, HEAT TOP
19
SHIELD, HEAT BOTTOM
←
