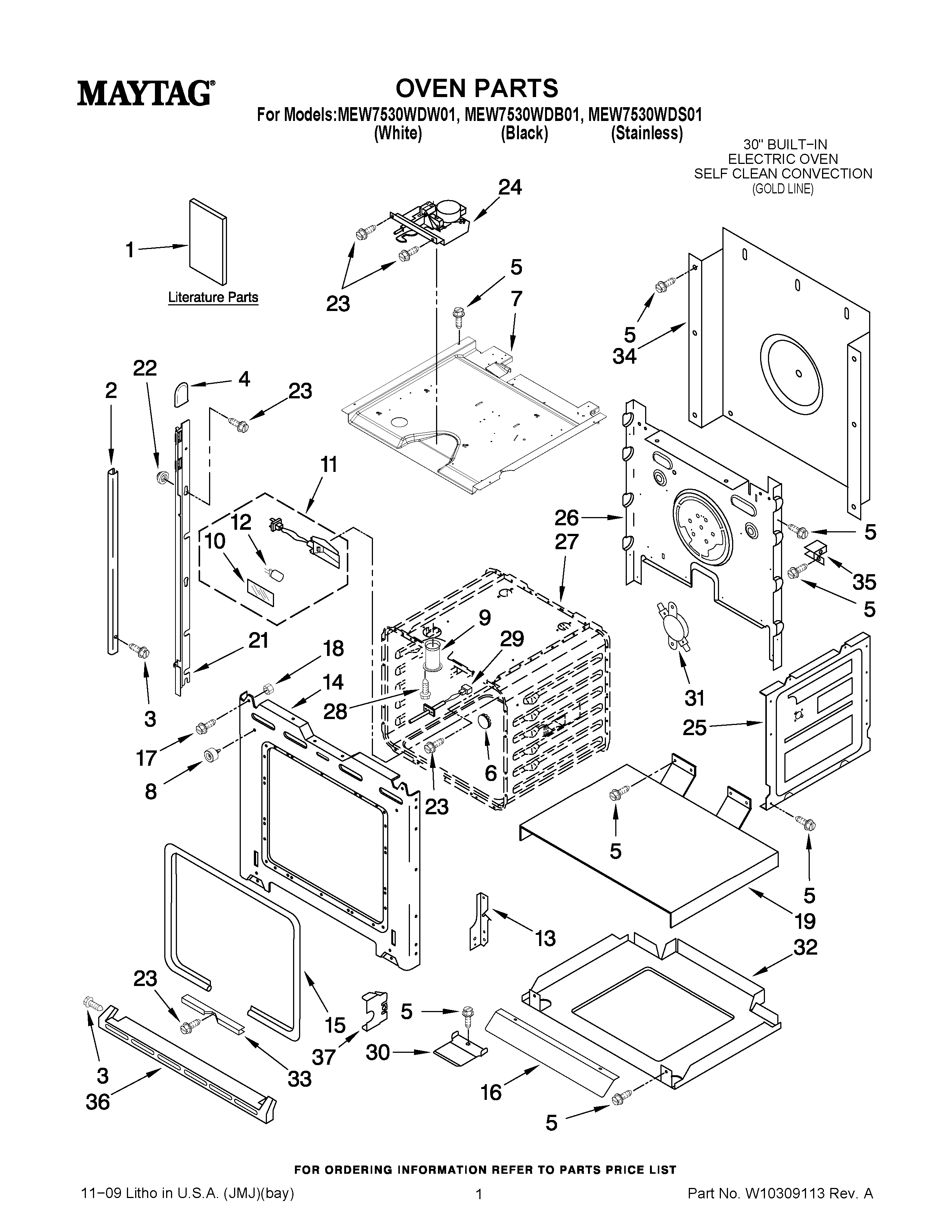

MEW7530WDS01 01 – OVEN PARTS

Products

Position	Product
NI	MAY 4449316
NI	MAY 4450365
1	TIPS, SAFE COOKING (ENGLISH)
1	USE & CARE GUIDE
1	INSTALL- INSTR BOTTOM TRIM
1	INSTALLATION/ UNDERCOUNTER
1	MAY W10185218
1	MAY W10205112
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10192049
2	TRIM, SIDE RIGHT (BLACK)
2	TRIM, SIDE LEFT (STAINLESS)
2	TRIM, SIDE RIGHT (STAINLESS)
2	MAY W10278486
2	MAY W10278485
2	TRIM, SIDE LEFT (BLACK)
3	Screw
4	MAY 4451605
5	MAY 4449809
6	PLUG, BUTTON
7	TOP, CHASSIS
8	ASSEMBLY, BUMPER
9	MAY 4452158
10	LENS
11	MAY W10009940
12	BULB, OVEN
13	MAY 4455605
13	MAY 4455606
14	MAY W10115831
15	MAY 4455382
16	DEFLECTOR, VENT
17	MAY 4449040
18	MAY 4450118
19	MAY 4451478
21	MAY 4450580
21	MAY 4450579
22	Grommet, Mounting Rail
23	MAY 4449154
24	MAY W10195934
25	Side, Chassis
26	MAY W10161110
27	LINER (NOT A SERVICEABLE PART)
28	Screw
29	MAY W10131825
30	DEFLECTOR, VENT BOX
31	FUSE, THERMAL
32	MAY 9759713
33	MAY 4448933
34	MAY 4451747
35	SUPPORT, BRACKET
36	TRIM, BOTTOM VENT (BLACK)
36	TRIM, BOTTOM VENT (STAINLESS)
36	TRIM, BOTTOM VENT (WHITE)
37	BRACKET, MOUNTING BOTTOM VENT TRIM
