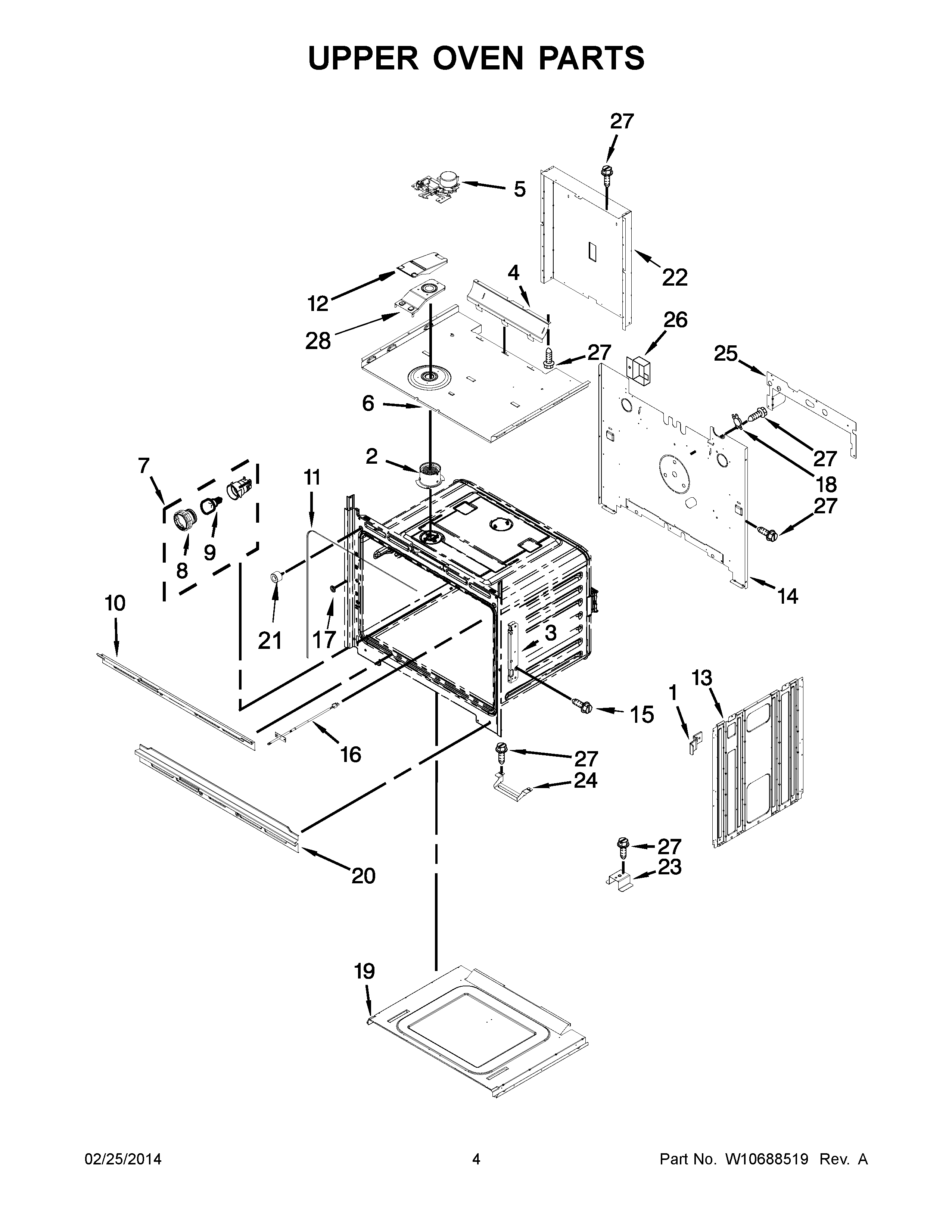

MEW7627AB02 03 – UPPER OVEN PARTS

MEW7627AB02 03 – UPPER OVEN PARTS

Written by

in

MEW7627AB02 03 – UPPER OVEN PARTS

Products

Position	Product
NI	MAY W10520716
NI	INSULATION, BACK
1	MAY W10347649
2	MAY W10282946
3	MAY W10282975
4	MAY W10671661
5	MAY W10314880
6	MAY W10641574
7	LIGHT, INDICATOR
8	MAY W10412722
9	MAY W10412711
10	MAY W10283037
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282991
15	MAY W10254050
16	MAY 7430P043-60
17	MAY W10283016
18	THERMOSTAT
19	MAY W10282901
20	MAY W10283041
21	BUMPER & SCREW
22	DUCT, CHASSIS BACK
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	MAY W10504028
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
