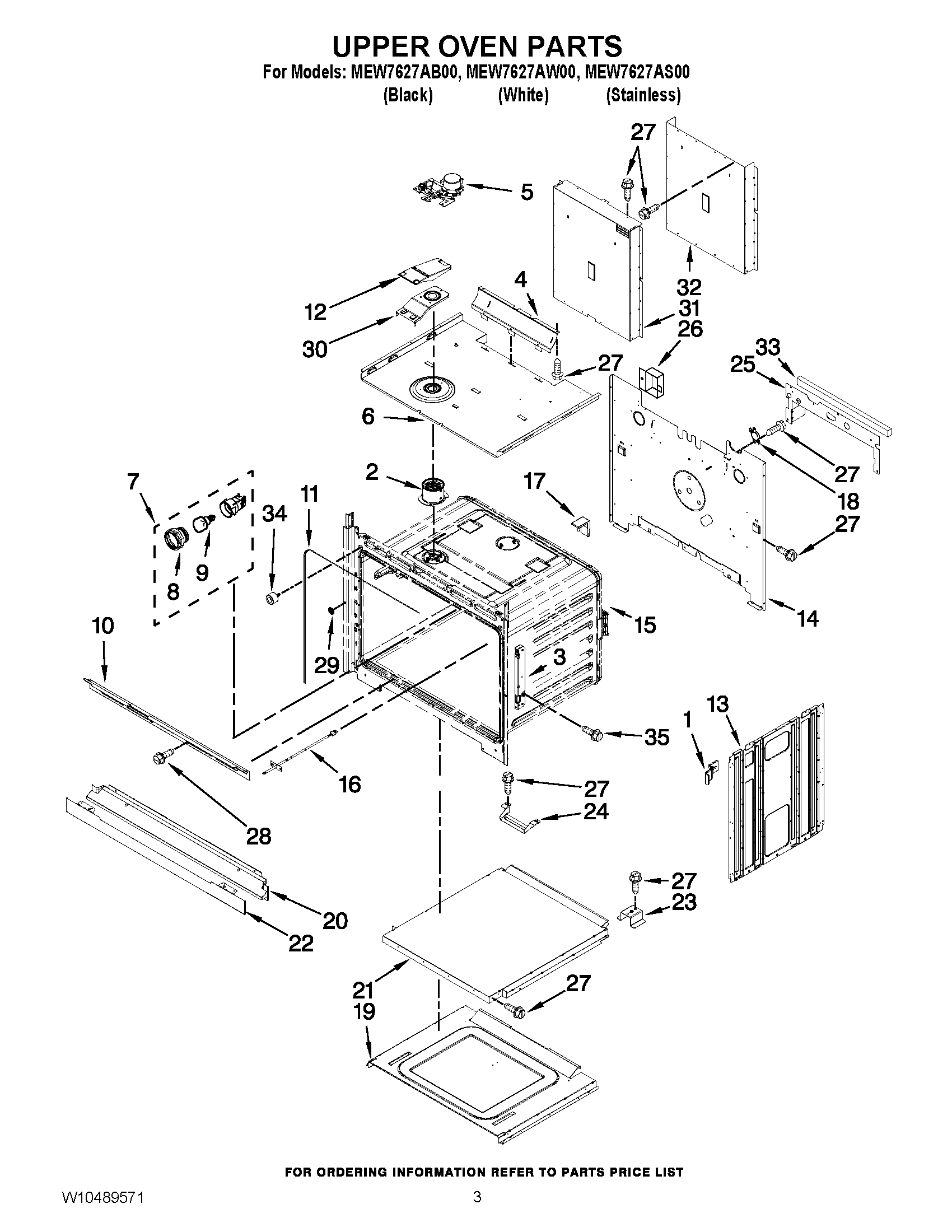

MEW7627AS00 02 – UPPER OVEN PARTS
Written by
in
MEW7627AS00 02 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY W10282943
NI
INSULATION, BACK
1
MAY W10347649
2
MAY W10282946
3
MAY W10282975
4
MAY W10351258
5
MAY W10314880
6
CHASSIS, TOP
7
LIGHT, INDICATOR
8
MAY W10412722
9
MAY W10412711
10
MAY W10283037
11
MAY W10282961
12
MAY W10282985
13
SIDE, CHASSIS (RIGHT)
14
MAY W10282991
15
LINER (NOT A SERVICEABLE PART)
16
MAY 7430P043-60
17
MAY W10392683
18
THERMOSTAT
19
MAY W10282901
20
MAY W10327375
20
MAY W10351280
21
CHASSIS, BOTTOM DUCT
22
MAY W10327378
22
MAY W10351237
23
MAY W10213759
24
SPACER, CHASSIS BOTTOM DUCT
25
MAY W10351283
26
MAY 8285593
27
MAY 7101P426- 60
28
MAY 4450038
29
MAY W10283016
30
MAY W10282984
31
DUCT, CHASSIS BACK
32
MAY W10283000
33
BLOCK, FOAM
34
BUMPER & SCREW
35
MAY W10254050
←
