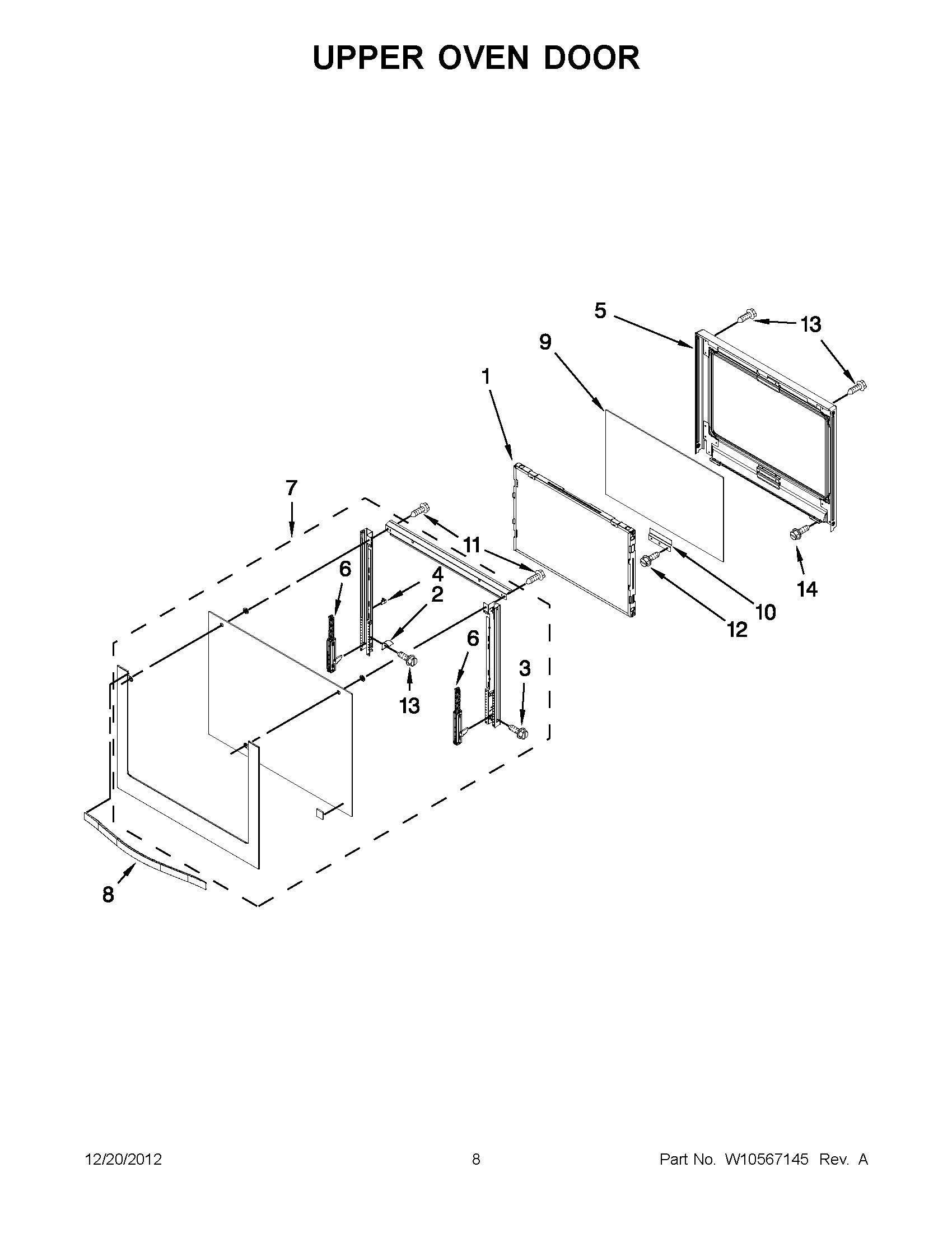

MEW7627AW01 04 – UPPER OVEN DOOR

MEW7627AW01 04 – UPPER OVEN DOOR

Written by

in

MEW7627AW01 04 – UPPER OVEN DOOR

Products

PositionProduct
1MAY W10347597
2MAY W10284285
3SCREW
4MAY W10392683
5ASSEMBLY, LINER WELDED
6MAY W10282976
7MAY W10364113
7MAY W10364112
7MAY W10364111
8HANDLE, DOOR (STAINLESS)
8HANDLE, DOOR (BLACK)
8HANDLE, DOOR (WHITE)
9LINER, INNER GLASS
10MAY W10284297
11Screw
12MAY 7101P426- 60
13MAY 7101P653-60
14MAY 7101P635-60
