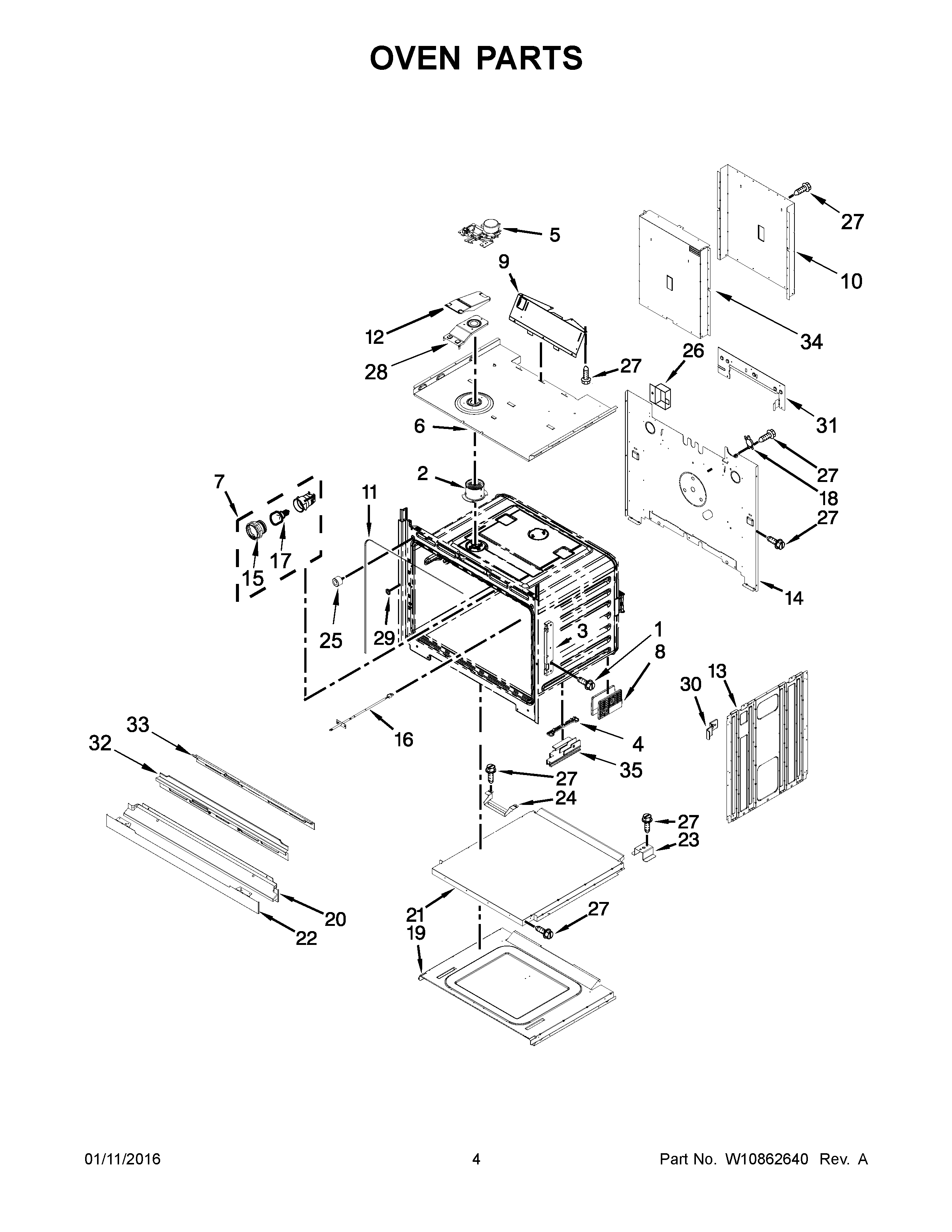

MEW7627DE02 03 – OVEN PARTS

MEW7627DE02 03 – OVEN PARTS

Written by

in

MEW7627DE02 03 – OVEN PARTS

Products

Position	Product
NI	MAY W10436188
NI	INSULATION, BACK
NI	MAY W10520716
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10254050
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	MAY W10314880
6	MAY W10813744
7	MAY W10734063
8	FOOT, BASE
9	MAY W10641572
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813734
15	MAY W10412722
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282901
20	MAY W10327375
20A	MAY W10506349
20B	MAY W10351280
21	CHASSIS, BOTTOM DUCT
22B	MAY W10327378
22A	MAY W10504025
22	MAY W10351237
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10283016
30	MAY W10347649
31	MAY W10588736
32	MAY W10730176
33	MAY W10283037
34	DUCT, CHASSIS BACK
35A	MAY W10618104
35	MAY W10618103
