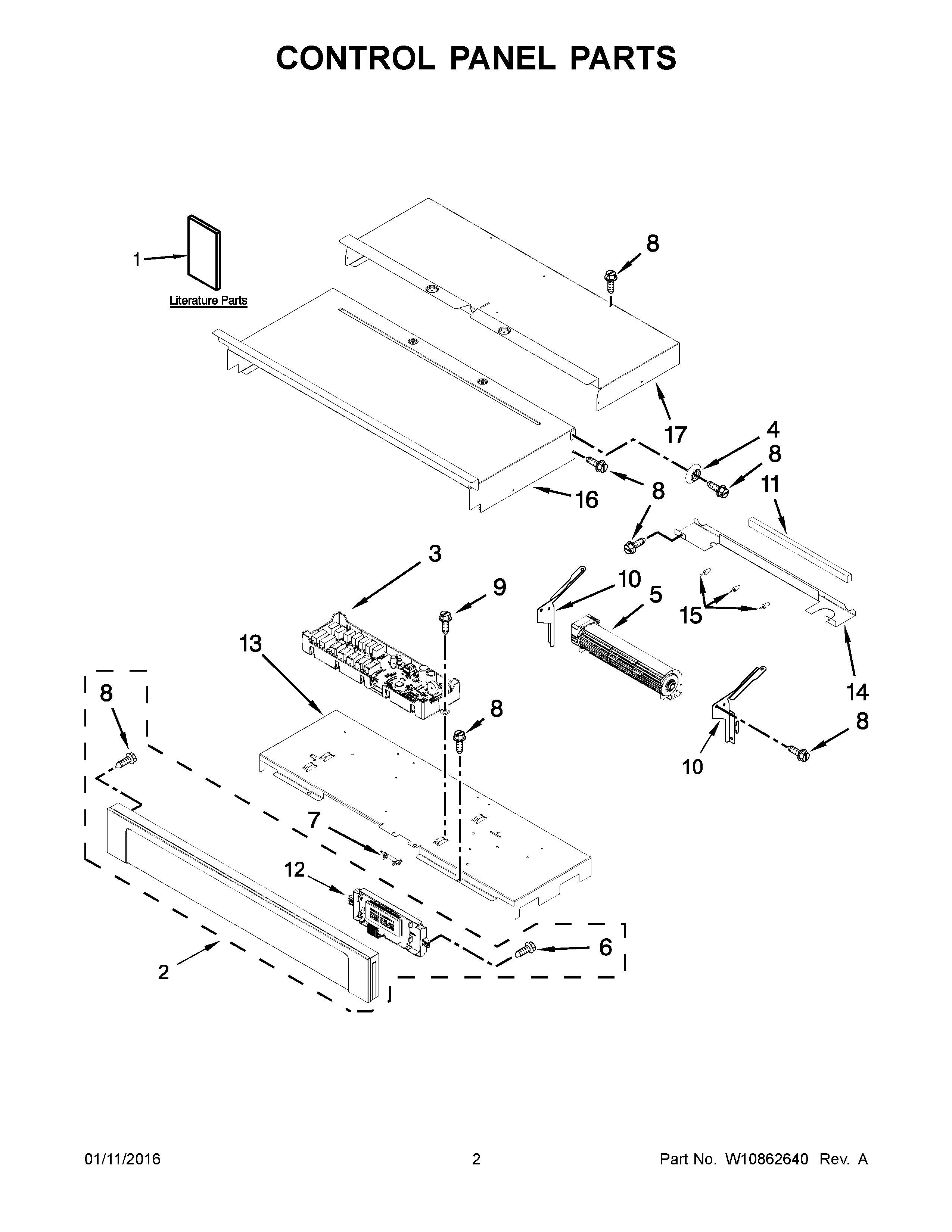

MEW7627DH02 02 – CONTROL PANEL PARTS

MEW7627DH02 02 – CONTROL PANEL PARTS

Written by

in

MEW7627DH02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	BRACKET, HARNESS
NI	CLAMP, CONDUIT
NI	MAY W10775068
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	MAY W10774726
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10679413
NI	HARNESS, EOL (MRC)
NI	MAY 4450800
1B	MAY W10796080
1	MAY W10674133
1A	MAY W10795607
2A	MAY W10812372
2	MAY W10812316
2B	MAY W10812317
3	MAY W10758880
4	SPACER, LATERAL
5A	MAY W10641253
5	MAY W10661038
6	MAY 7101P403-60
7	MAY W10545291
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	ASSEMBLY, DISPLAY
13	MAY W10283005
14	CHASSIS, BACK DIVIDER
15	MAY W10351295
16	MAY W10318193
17	CHASSIS, COVER TOP BACK 27"
