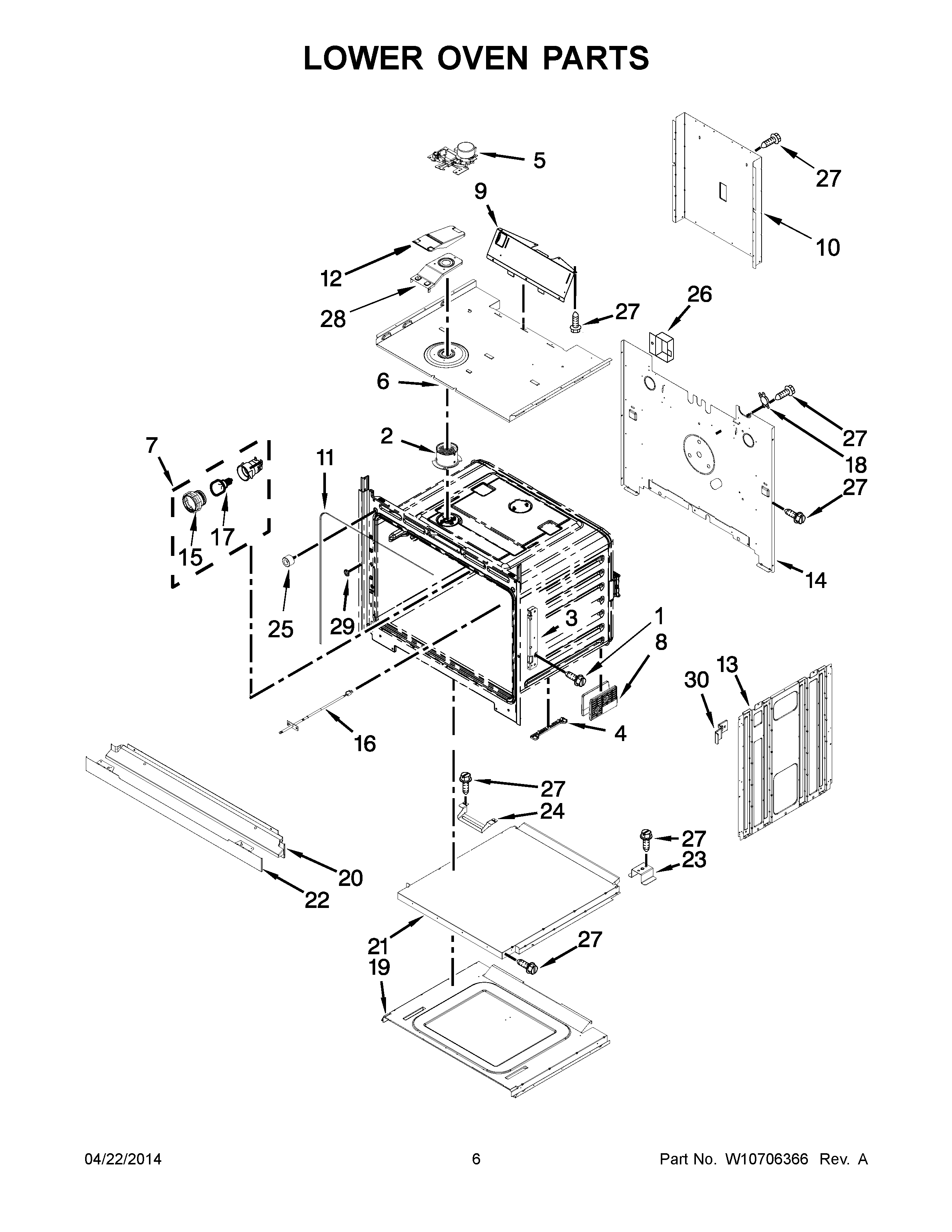

MEW7627DS00 04 – LOWER OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
NI	MAY W10520716
1	MAY W10254050
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10641574
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10641572
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10696136
15	MAY W10412722
16	MAY 7430P043-60
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282901
20	MAY W10351280
20	MAY W10327375
21	CHASSIS, BOTTOM DUCT
22	MAY W10351237
22	MAY W10327378
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10283016
30	MAY W10347649
