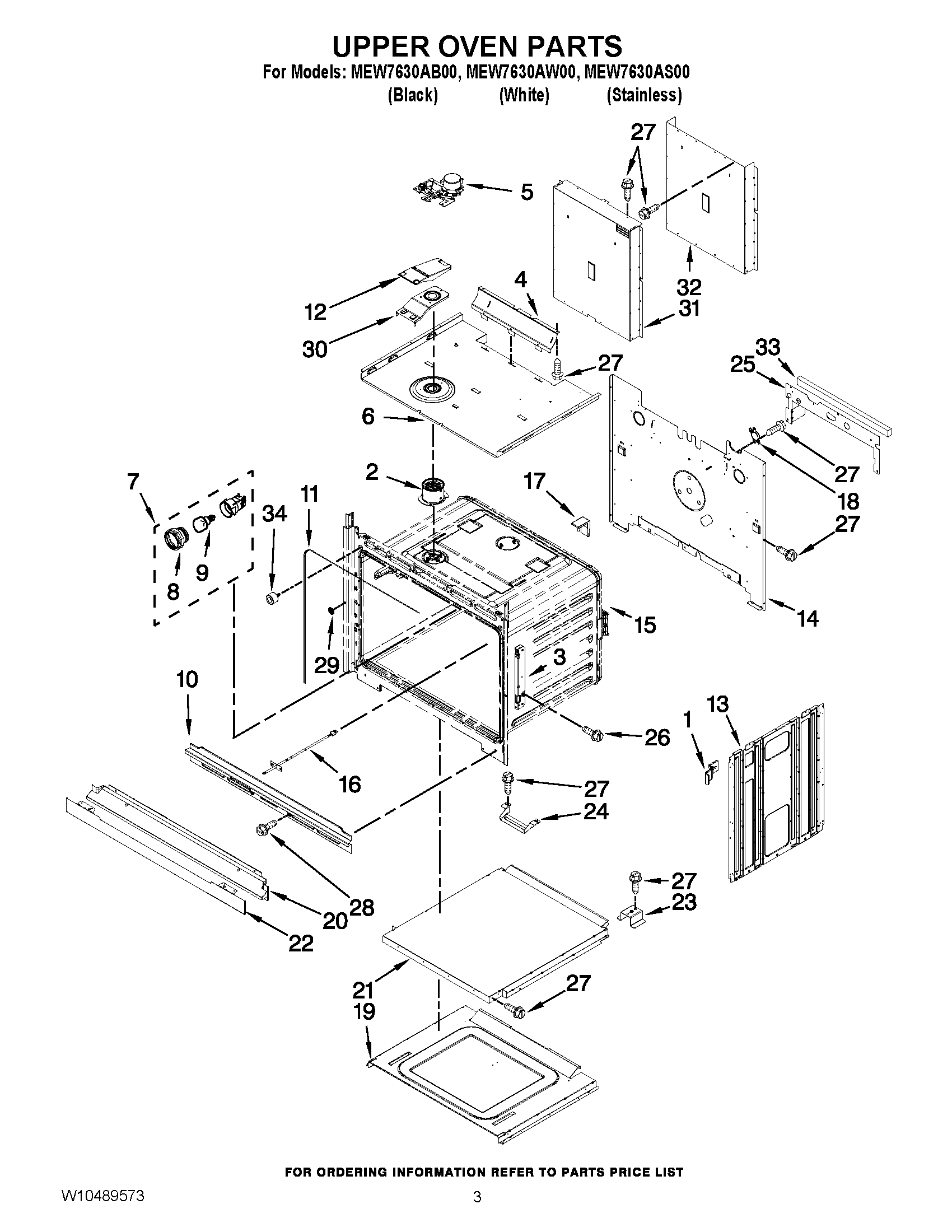

MEW7630AB00 02 – UPPER OVEN PARTS
Written by
in
MEW7630AB00 02 – UPPER OVEN PARTS
Products
Position
Product
NI
MAY W10282942
NI
MAY W10282944
1
MAY W10347649
2
MAY W10282946
3
MAY W10282975
4
MAY W10351258
5
MAY W10314880
6
MAY W10282980
7
LIGHT, INDICATOR
8
MAY W10412722
9
MAY W10412711
10
MAY W10283040
11
MAY W10282960
12
MAY W10282985
13
SIDE, CHASSIS (RIGHT)
14
MAY W10282990
15
LINER (NOT A SERVICEABLE PART)
16
MAY 7430P043-60
17
MAY W10392683
18
THERMOSTAT
19
MAY W10282900
20
MAY W10327373
20
MAY W10351279
21
CHASSIS, BOTTOM DUCT
22
MAY W10351236
22
TRIM, BOTTOM VENT (STAINLESS)
23
MAY W10213759
24
SPACER, CHASSIS BOTTOM DUCT
25
MAY W10351283
26
MAY W10254050
27
MAY 7101P426- 60
28
MAY 4450038
29
MAY W10283016
30
MAY W10282984
31
DUCT, CHASSIS BACK
32
MAY W10283000
33
BLOCK, FOAM
34
BUMPER & SCREW
←
