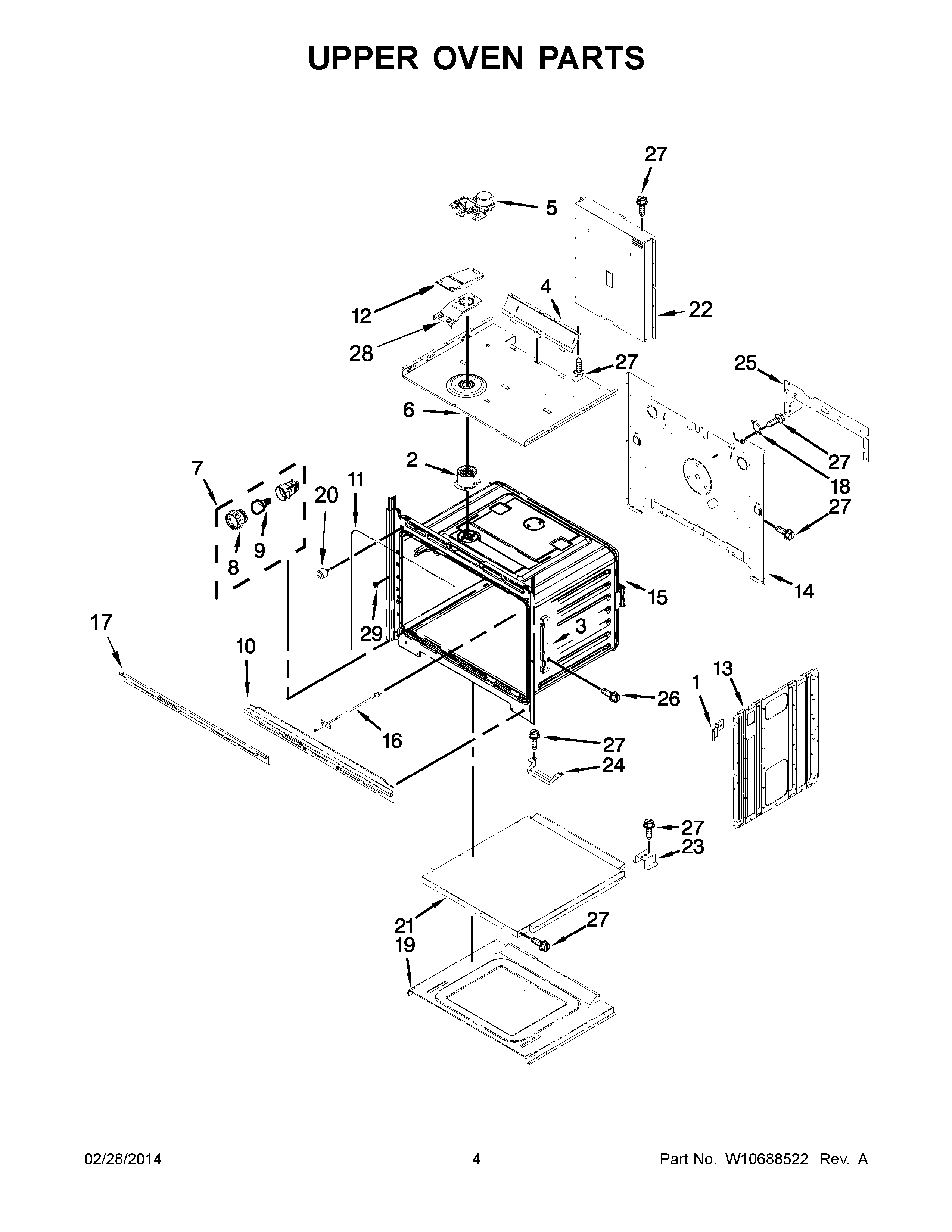

MEW7630AS02 03 – UPPER OVEN PARTS

MEW7630AS02 03 – UPPER OVEN PARTS

Written by

in

MEW7630AS02 03 – UPPER OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282944
1	MAY W10347649
2	MAY W10282946
3	MAY W10282975
4	MAY W10671661
5	MAY W10314880
6	MAY W10641573
7	LIGHT, INDICATOR
8	MAY W10412722
9	MAY W10412711
10	MAY W10283040
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
16	MAY 7430P043-60
17	VENT, TOP 30"
18	THERMOSTAT
19	MAY W10282900
20	BUMPER & SCREW
21	CHASSIS, BOTTOM DUCT
22	DUCT, CHASSIS BACK
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	MAY W10504028
26	MAY W10254050
27	MAY 7101P426-
28	BASE, VENT EXHAUST
29	MAY W10283016
