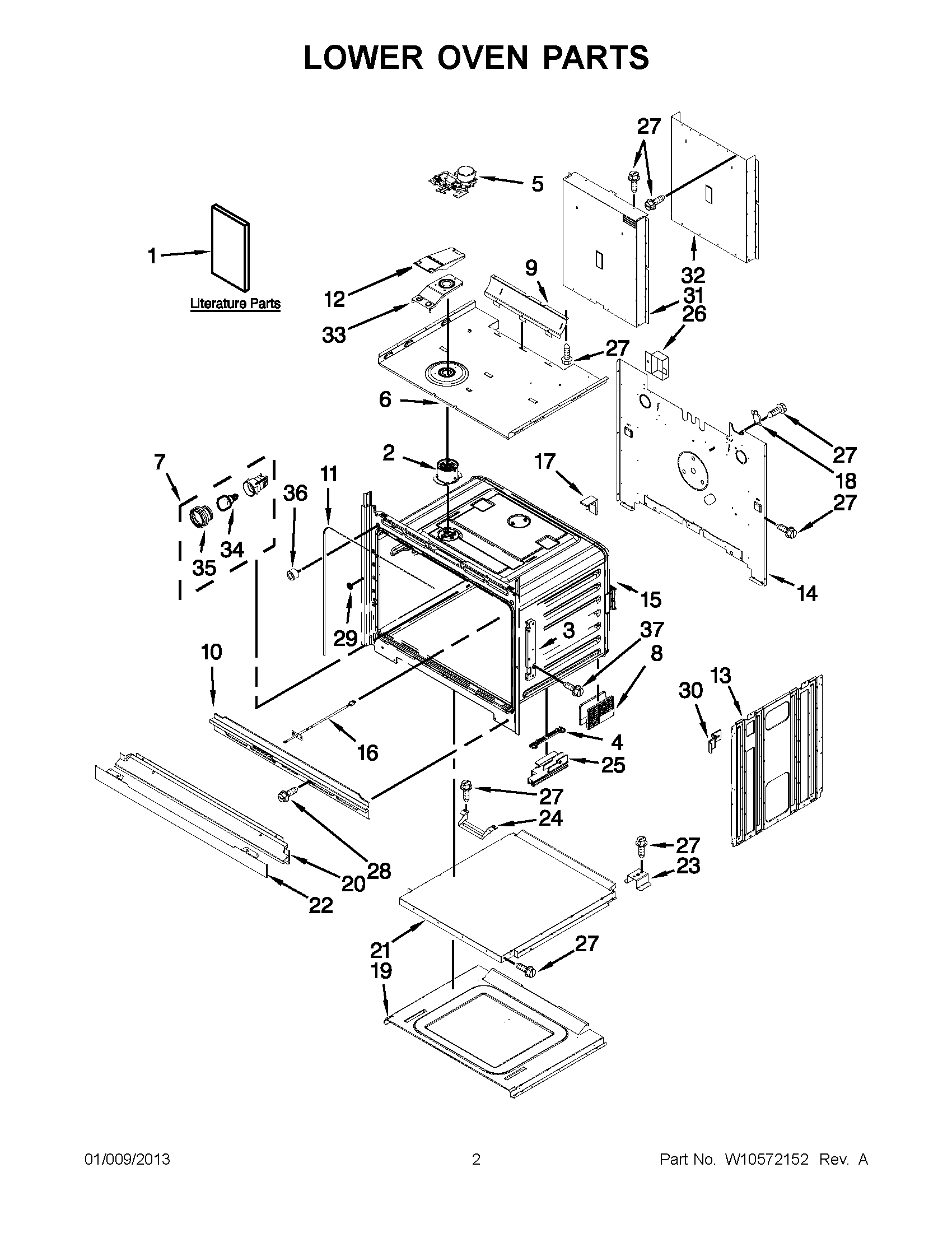

MEW7630AW01 01 – LOWER OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282944
NI	INSULATION, WRAP
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1	MAY W10354192
1	MAY W10507057
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	MAY W10282980
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10351258
10	MAY W10283040
11	MAY W10282960
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282900
20	MAY W10351279
20	MAY W10327373
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
22	MAY W10351236
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	FOOT, FRONT LEFT
25	FOOT, FRONT RIGHT
26	MAY 8285593
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	DUCT, CHASSIS BACK (LOWER)
33	MAY W10282984
34	MAY W10412711
35	MAY W10412722
36	BUMPER & SCREW
37	MAY W10254050
