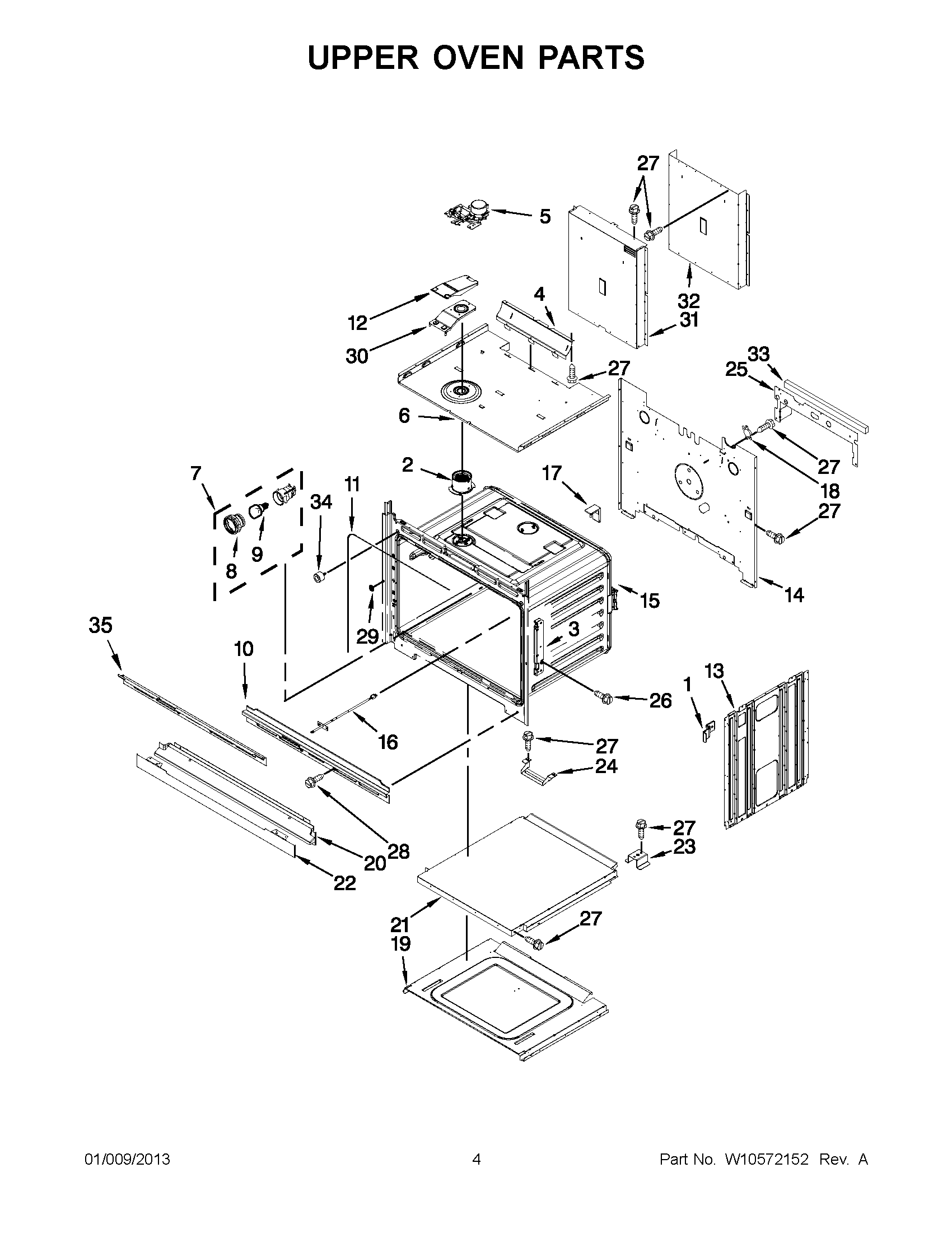

MEW7630AW01 02 – UPPER OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10282944
NI	INSULATION, WRAP
1	MAY W10347649
2	MAY W10282946
3	MAY W10282975
4	MAY W10351258
5	MAY W10314880
6	MAY W10282980
7	LIGHT, INDICATOR
8	MAY W10412722
9	MAY W10412711
10	MAY W10283040
11	MAY W10282960
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282990
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282900
20	MAY W10351279
20	MAY W10327373
21	CHASSIS, BOTTOM DUCT
22	MAY W10351236
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	MAY W10504028
26	MAY W10254050
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10282984
31	DUCT, CHASSIS BACK
32	DUCT, CHASSIS BACK (LOWER)
33	BLOCK, FOAM
34	BUMPER & SCREW
35	VENT, TOP 30"
