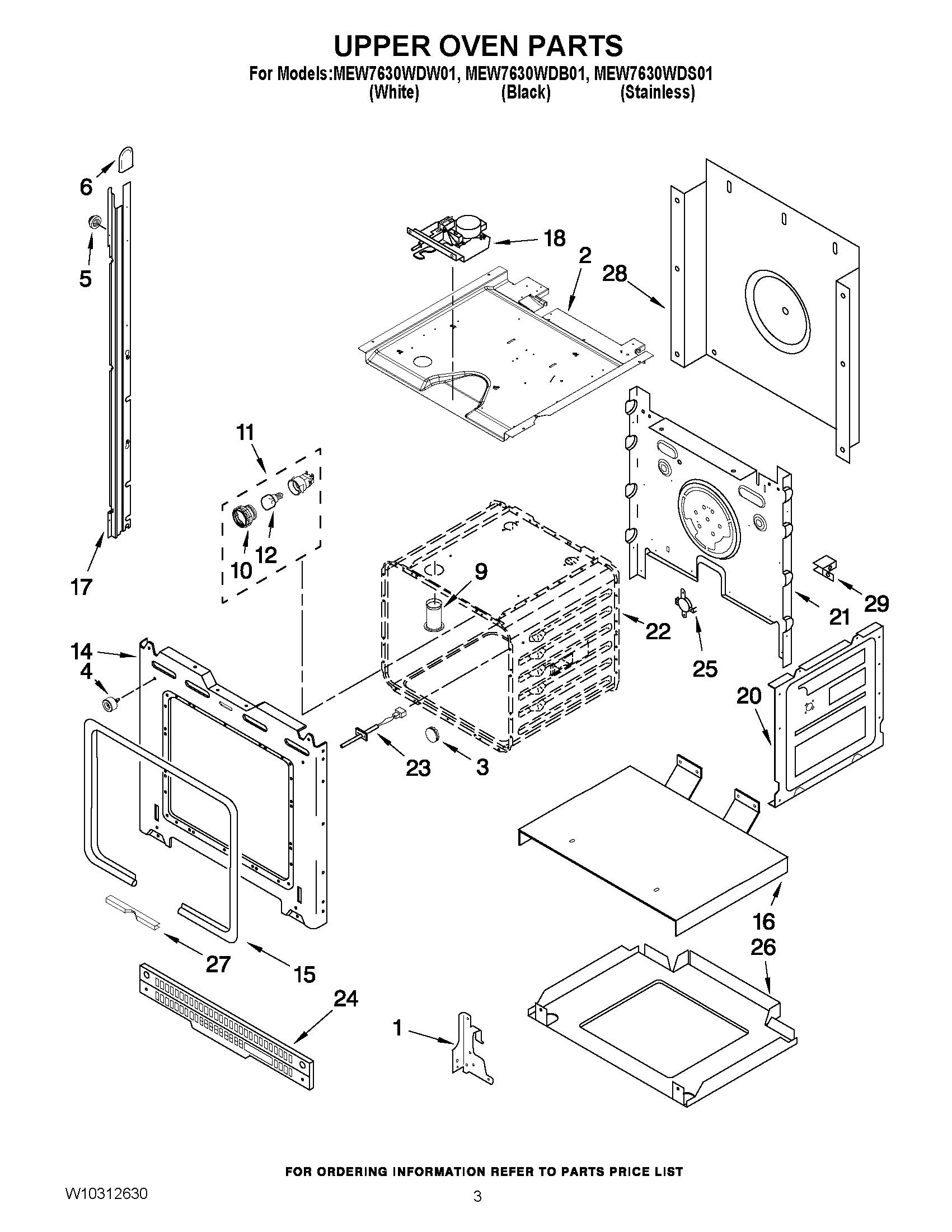

MEW7630WDB01 02 – UPPER OVEN PARTS

MEW7630WDB01 02 – UPPER OVEN PARTS

Written by

in

MEW7630WDB01 02 – UPPER OVEN PARTS

Products

Position	Product
NI	MAY 4449316
NI	MAY 4450365
1	MAY 4455605
1	MAY 4455606
2	TOP, CHASSIS
3	PLUG, BUTTON
4	ASSEMBLY, BUMPER
5	Grommet, Mounting Rail
6	MAY 4451605
9	MAY 4452158
10	LENS
11	MAY W10009940
12	BULB, OVEN
14	MAY W10115831
14	MAY 4449040
15	MAY 4455382
16	MAY 4451478
17	MAY 4450582
17	MAY 4450581
18	MAY W10195934
20	Side, Chassis
21	MAY W10161110
22	LINER (NOT A SERVICEABLE PART)
23	MAY W10131825
24	TRIM, CENTER VENT
25	FUSE, THERMAL
26	MAY 9759713
27	MAY 4448933
27	MAY 4449154
28	MAY 4451747
29	SUPPORT, BRACKET
29	MAY 4449809
