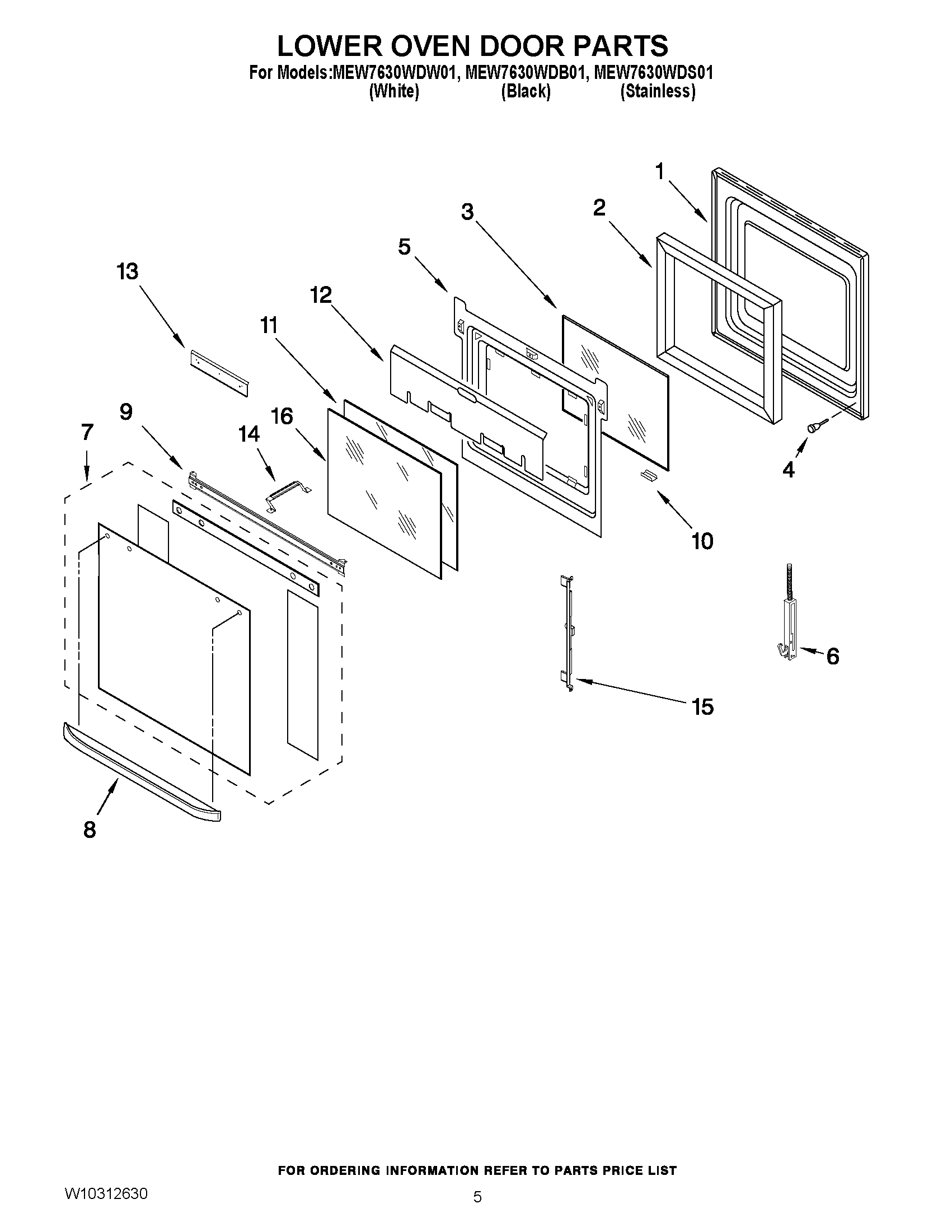

MEW7630WDS01 03 – LOWER OVEN DOOR PARTS
Written by
in
MEW7630WDS01 03 – LOWER OVEN DOOR PARTS
Products
Position
Product
1
MAY 9759413
2
MAY 4451722
3
MAY 4449259
4
MAY 4448520
5
MAY 4449809
5
MAY 4457132
6
HINGE, DOOR (SS ONLY) (LEFT)
6
HINGE, DOOR (RIGHT)
6
HINGE, DOOR (LEFT)
6
HINGE, DOOR (SS ONLY) (RIGHT)
6
MAY 4449743
7
MAY W10270349
7
MAY W10270347
7
MAY W10270350
8
MAY W10269407
8
MAY W10269408
8
MAY W10161708
9
MAY W10256645
10
RETAINER, GLASS CLIP (STAINLESS)
10
RETAINER, GLASS CLIP (BLACK)
11
MAY 9759228
12
SHIELD, HEAT TOP
13
SHIELD, HEAT BOTTOM
14
MAY 9759230
15
MAY 9759229
16
MAY 9759225
←
