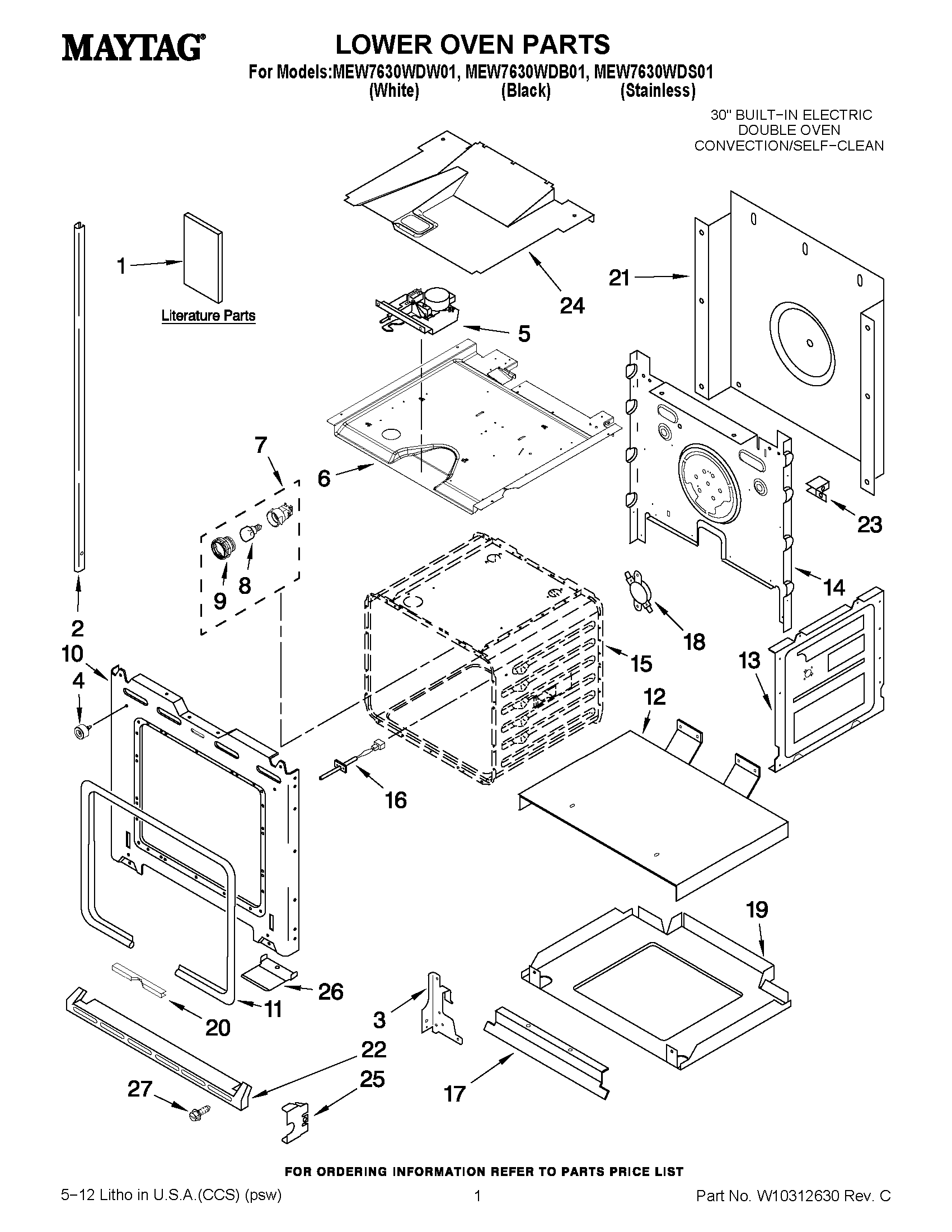

MEW7630WDW01 01 – LOWER OVEN PARTS

Products

Position	Product
NI	MAY 4450365
NI	MAY 4449316
1	TIPS, SAFE COOKING (ENGLISH)
1	INSTALL- INSTR BOTTOM TRIM
1	MAY W10185219
1	INSTR, INSTALLER
1	MAY W10192049
1	USE & CARE GUIDE
1	TIPS, SAFE COOKING (FRENCH)
2	MAY W10144986
2	MAY W10278487
2	MAY W10278488
2	MAY W10278489
2	MAY W10278490
2	MAY W10144985
3	MAY 4455606
3	MAY 4455605
4	ASSEMBLY, BUMPER
5	MAY W10195934
6	TOP, CHASSIS
7	MAY W10009940
8	BULB, OVEN
9	LENS
10	MAY 4450118
10	MAY W10115831
10	MAY 4449040
11	MAY 4455382
12	MAY 4451478
13	Side, Chassis
14	MAY W10161110
15	LINER (NOT A SERVICEABLE PART)
16	MAY W10131825
17	DEFLECTOR, VENT
18	FUSE, THERMAL
19	MAY 9759713
20	MAY 4449154
20	MAY 4448933
21	MAY 4451747
22	TRIM, BOTTOM VENT (WHITE)
22	TRIM, BOTTOM VENT (BLACK)
22	TRIM, BOTTOM VENT (STAINLESS)
23	SUPPORT, BRACKET
23	MAY 4449809
24	DIVIDER, CENTER VENT
25	BRACKET, MOUNTING BOTTOM VENT TRIM
26	DEFLECTOR, VENT BOX
27	MAY 3400805
27	Screw
