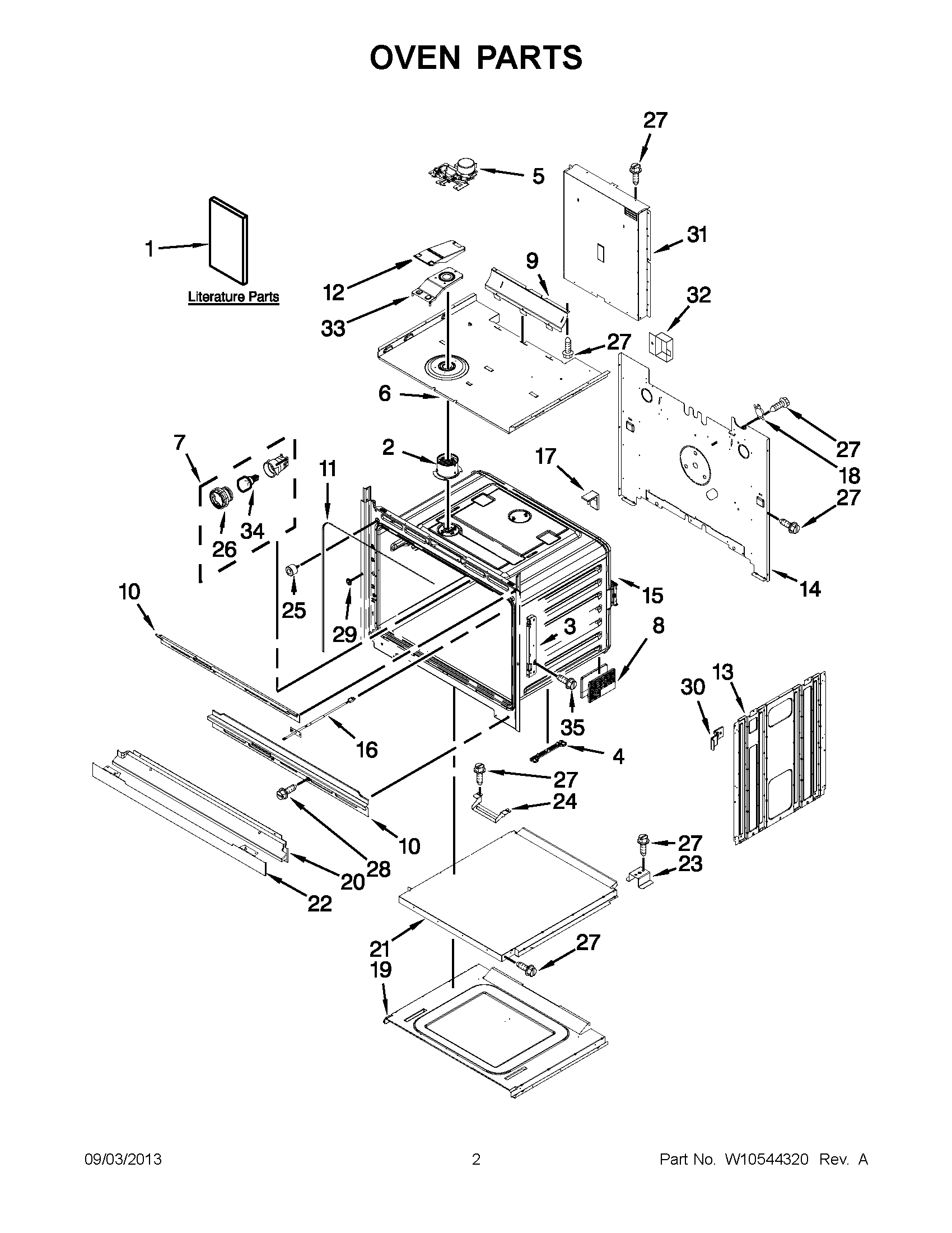

MEW9527AS01 02 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
NI	MAY W10520716
1	MAY W10507056
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1	MAY W10354189
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
2	MAY W10282946
3	MAY W10282975
4	MAY W10318220
5	MAY W10314880
6	CHASSIS, TOP
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10351258
10	MAY W10283037
11	MAY W10282961
12	MAY W10282985
13	SIDE, CHASSIS (RIGHT)
14	MAY W10282991
16	MAY 7430P043-60
17	MAY W10392683
18	THERMOSTAT
19	MAY W10282901
20	MAY W10327375
20	MAY W10351280
21	CHASSIS, BOTTOM DUCT
22	MAY W10351237
22	MAY W10327378
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY 4450038
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	MAY W10282984
34	MAY W10412711
35	MAY W10254050
