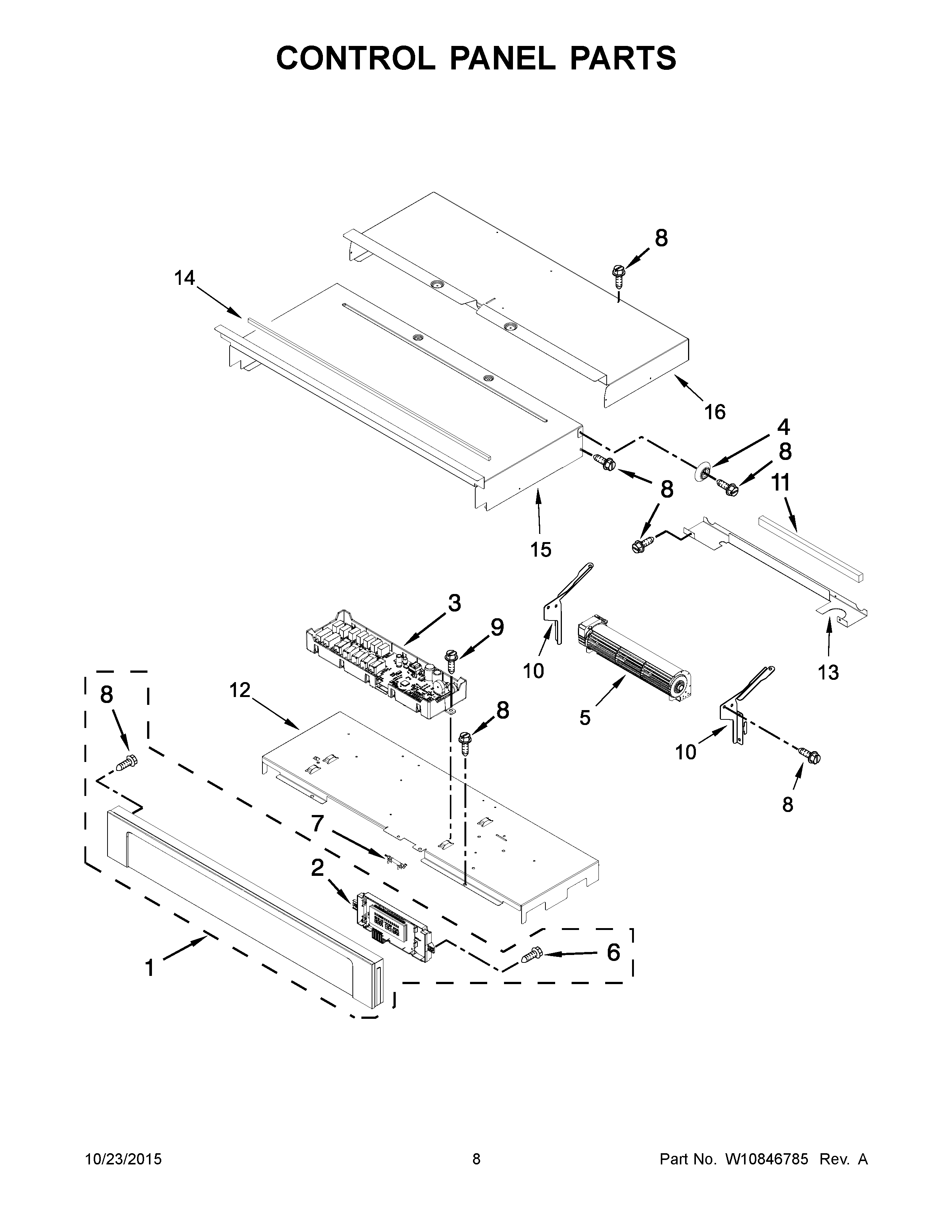

MEW9527DS01 05 – CONTROL PANEL PARTS
Written by
in
MEW9527DS01 05 – CONTROL PANEL PARTS
Products
Position
Product
1
MAY W10812320
2
INTERFACE (MAXWELL), USER BOARD
3
MAY W10759199
4
SPACER, LATERAL
5
MAY W10641253
6
MAY 7101P403-60
7
MAY W10545255
8
MAY 7101P426- 60
9
MAY 7101P434-60
10A
BRACKET, BLOWER (RIGHT)
10
BRACKET, BLOWER (LEFT)
11
BLOCK, FOAM
12
MAY W10283005
13
MAY W10509164
14
MAY W10657548
15
MAY W10318193
16
MAY W10318195
←
