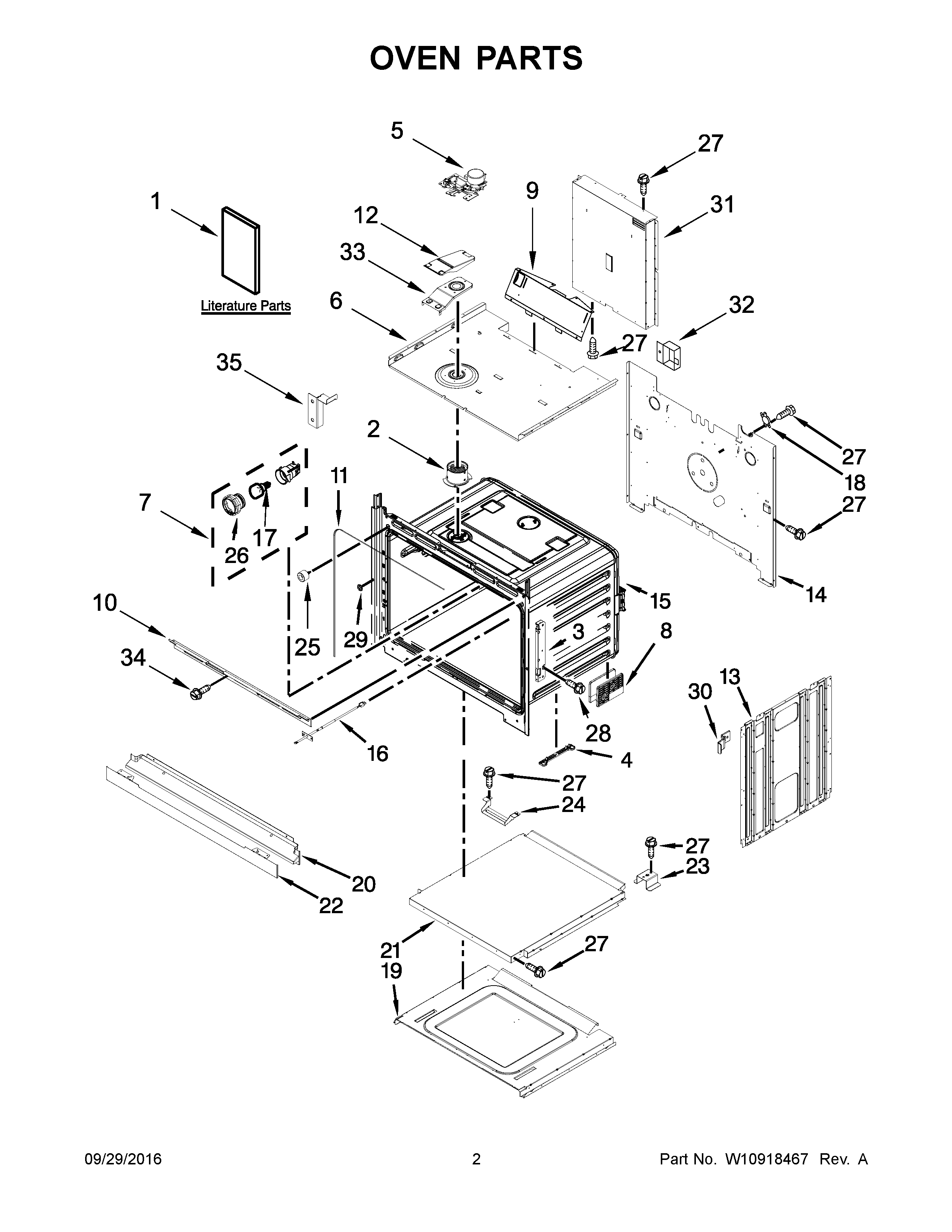

MEW9527FW00 02 – OVEN PARTSadmin2025-04-26T09:10:12+00:00MEW9527FW00 02 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | WIRING HARNESS PARTS, CONDUIT, SINGLE |
| NI | STRAP, LEAD GROUND |
| NI | INSULATION, BACK |
| NI | MAY W10520716 |
| NI | MAY W10775068 |
| NI | BRACKET, HARNESS |
| NI | CLIP, HARNESS |
| NI | CLAMP, CONDUIT |
| NI | MAY 4450800 |
| NI | HARNESS, EOL (MRC) |
| NI | MAY W10775305 |
| 1B | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1A | MAY W10674133 |
| 1C | MAY W10796080 |
| 1 | GUIDE, USE & CARE |
| 2 | MAY W10282946 |
| 3 | MAY W10616802 |
| 4 | SPACER, BASE |
| 5 | LATCH, MOTORIZED |
| 6 | MAY W10813744 |
| 7 | MAY W10734063 |
| 8 | FOOT, BASE |
| 9 | MAY W10641572 |
| 10 | MAY W10283037 |
| 11 | MAY W10282961 |
| 12 | COVER, VENT EXHAUST |
| 13 | SIDE, CHASSIS (RIGHT) |
| 14 | MAY W10813734 |
| 16 | MAY W10622170 |
| 17 | MAY W10412711 |
| 18 | THERMOSTAT |
| 19 | MAY W10282901 |
| 20A | MAY W10506345 |
| 20 | MAY W10327375 |
| 21 | CHASSIS, BOTTOM DUCT |
| 22A | MAY W10504025 |
| 22 | MAY W10351237 |
| 23 | MAY W10213759 |
| 24 | SPACER, CHASSIS BOTTOM DUCT |
| 25 | BUMPER & SCREW |
| 26 | MAY W10412722 |
| 27 | MAY 7101P426- 60 |
| 28 | MAY W10254050 |
| 29 | MAY W10283016 |
| 30 | MAY W10347649 |
| 31 | DUCT, CHASSIS BACK |
| 32 | MAY 8285593 |
| 33 | BASE, VENT EXHAUST |
| 34 | MAY W10607120 |
| 35A | BRACKET, SIDE COVER (RIGHT) |
| 35 | BRACKET, SIDE COVER (LEFT) |
