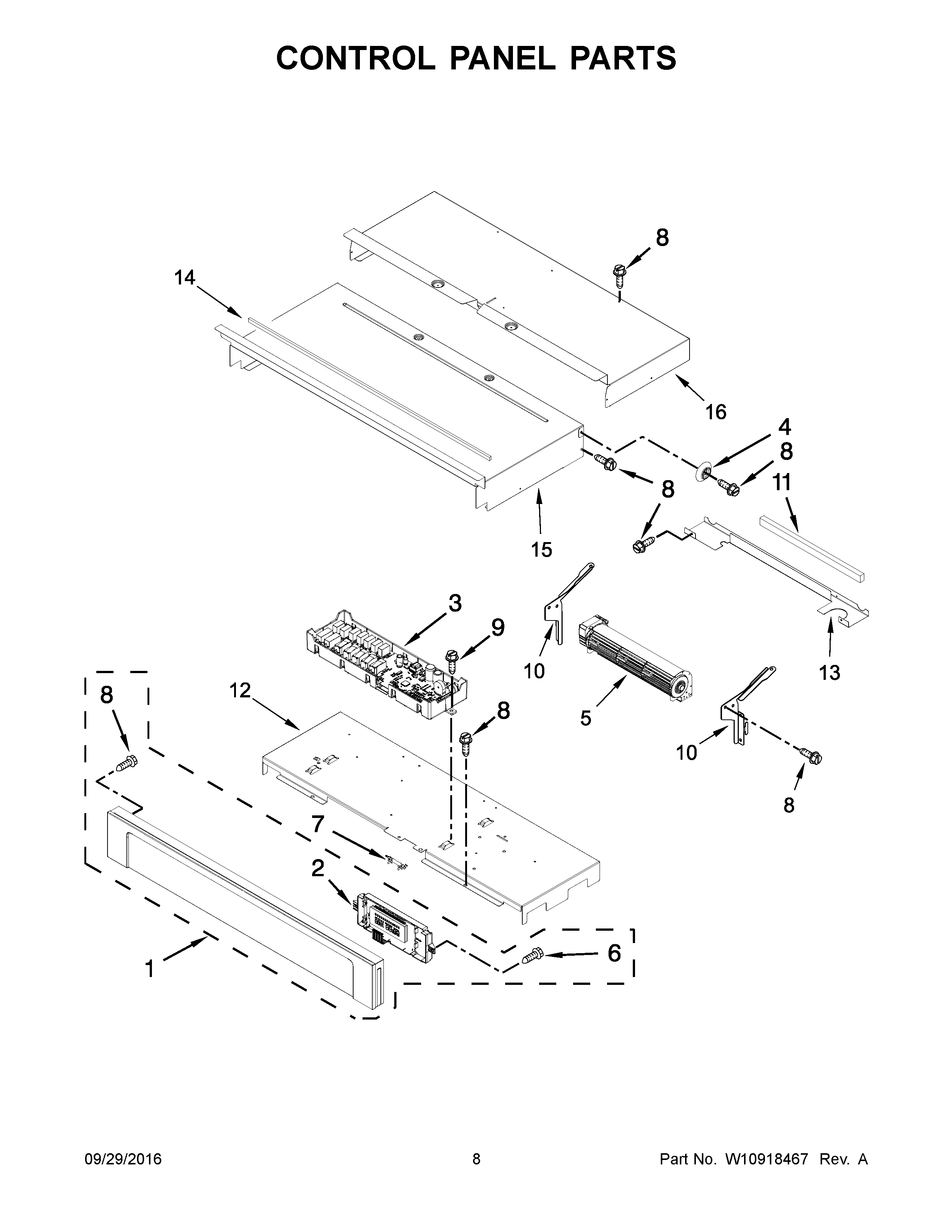

MEW9527FW00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1AMAY W10877213
1MAY W10877215
2INTERFACE (MAXWELL), USER BOARD
3CONTROL (MAXWELL), MAIN
4SPACER, LATERAL
5MAY W10641253
6MAY 7101P403-60
7MAY W10545255
8MAY 7101P426- 60
9MAY 7101P434-60
10ABRACKET, BLOWER (RIGHT)
10BRACKET, BLOWER (LEFT)
11BLOCK, FOAM
12MAY W10283005
13CHASSIS, BACK DIVIDER
14MAY W10671226
15MAY W10318193
16CHASSIS, COVER TOP BACK 27"
