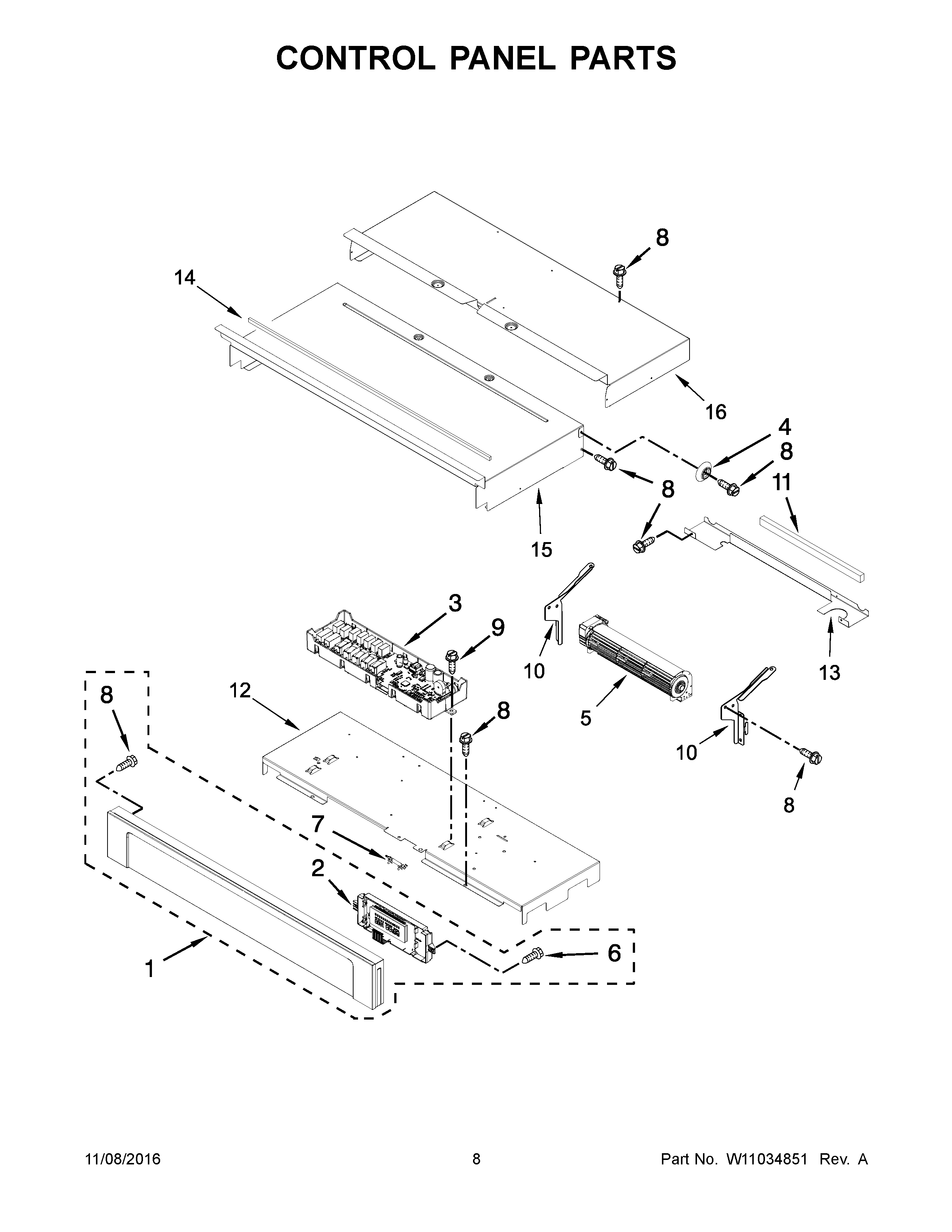

MEW9527FZ02 05 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS)
2	INTERFACE (MAXWELL), USER BOARD
3	CONTROL (MAXWELL), MAIN
4	SPACER, LATERAL
5	BLOWER
6	MAY 7101P403-60
7	MAY W10545255
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	MAY W10283005
13	CHASSIS, BACK DIVIDER
14	MAY W10671226
15	MAY W10318193
16	CHASSIS, COVER TOP BACK 27"
