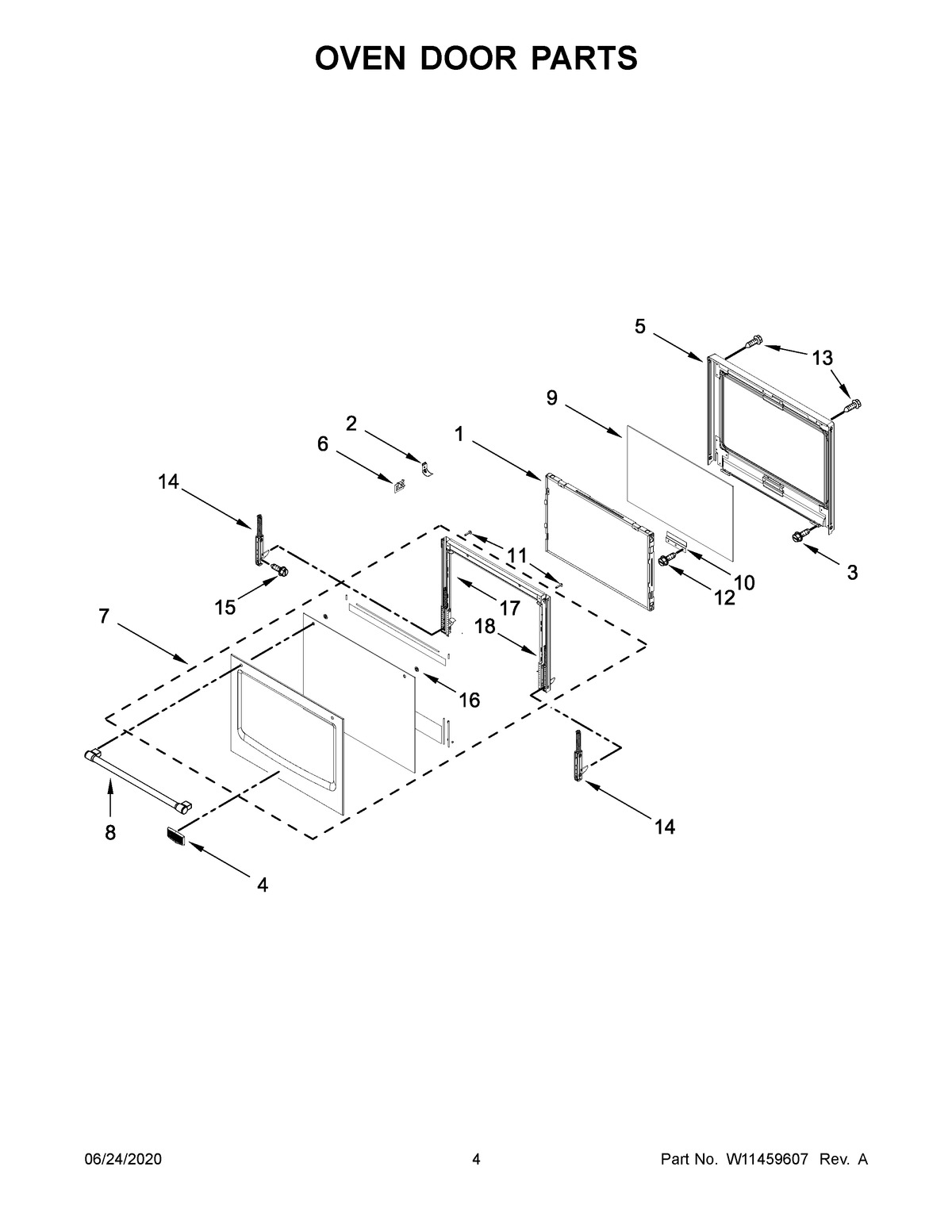

MEW9527FZ04 03 – OVEN DOOR PARTS

MEW9527FZ04 03 – OVEN DOOR PARTS

Written by

in

MEW9527FZ04 03 – OVEN DOOR PARTS

Products

PositionProduct
1MAY W11383650
2MAY W10284285
3MAY 7101P635-60
4BADGE
5ASSEMBLY, LINER WELDED
6MAY W10653954
7MAY W11318330
8MAY W10834519
9MAY W11368483
10MAY W10284297
11SCREW
12MAY 7101P426- 60
13MAY 7101P427-60
14MAY W10639071
15SCREW
16WASHER, DOOR
17RAIL, DOOR SIDE (LEFT)
18RAIL, DOOR SIDE (RIGHT)
