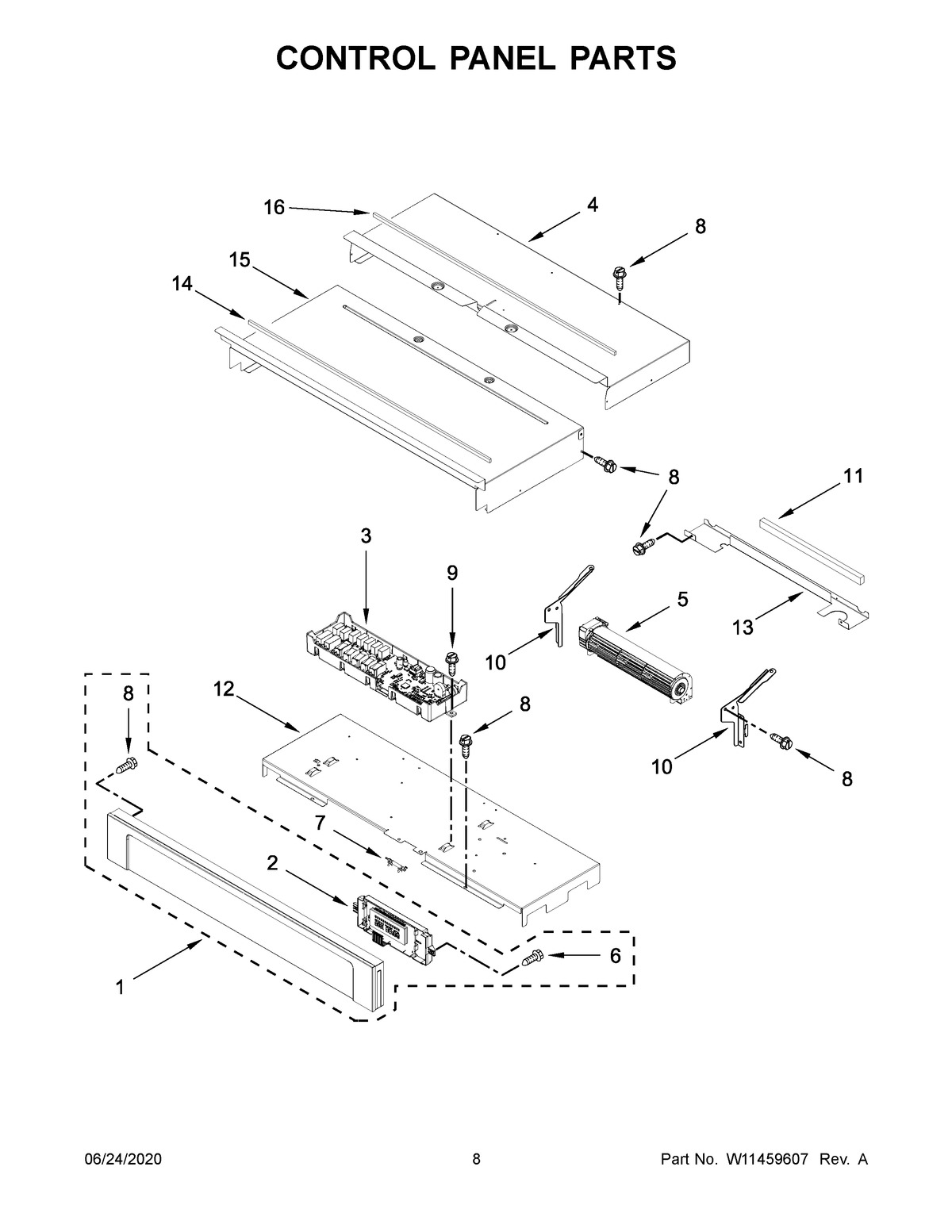

MEW9527FZ04 05 – CONTROL PANEL PARTSadmin2025-04-26T09:09:13+00:00MEW9527FZ04 05 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (STAINLESS) |
| 2 | INTERFACE (MAXWELL), USER BOARD |
| 3 | CONTROL (MAXWELL), MAIN |
| 4 | CHASSIS, COVER TOP BACK 27" |
| 5 | BLOWER |
| 6 | MAY 7101P403-60 |
| 7 | MAY W10545255 |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10A | BRACKET, BLOWER (RIGHT) |
| 10 | BRACKET, BLOWER (LEFT) |
| 11 | BLOCK, FOAM |
| 12 | MAY W10283005 |
| 13 | CHASSIS, BACK DIVIDER |
| 14 | GASKET, RUBBER (652MM) |
| 15 | MAY W10318193 |
| 16 | GASKET, RUBBER |
