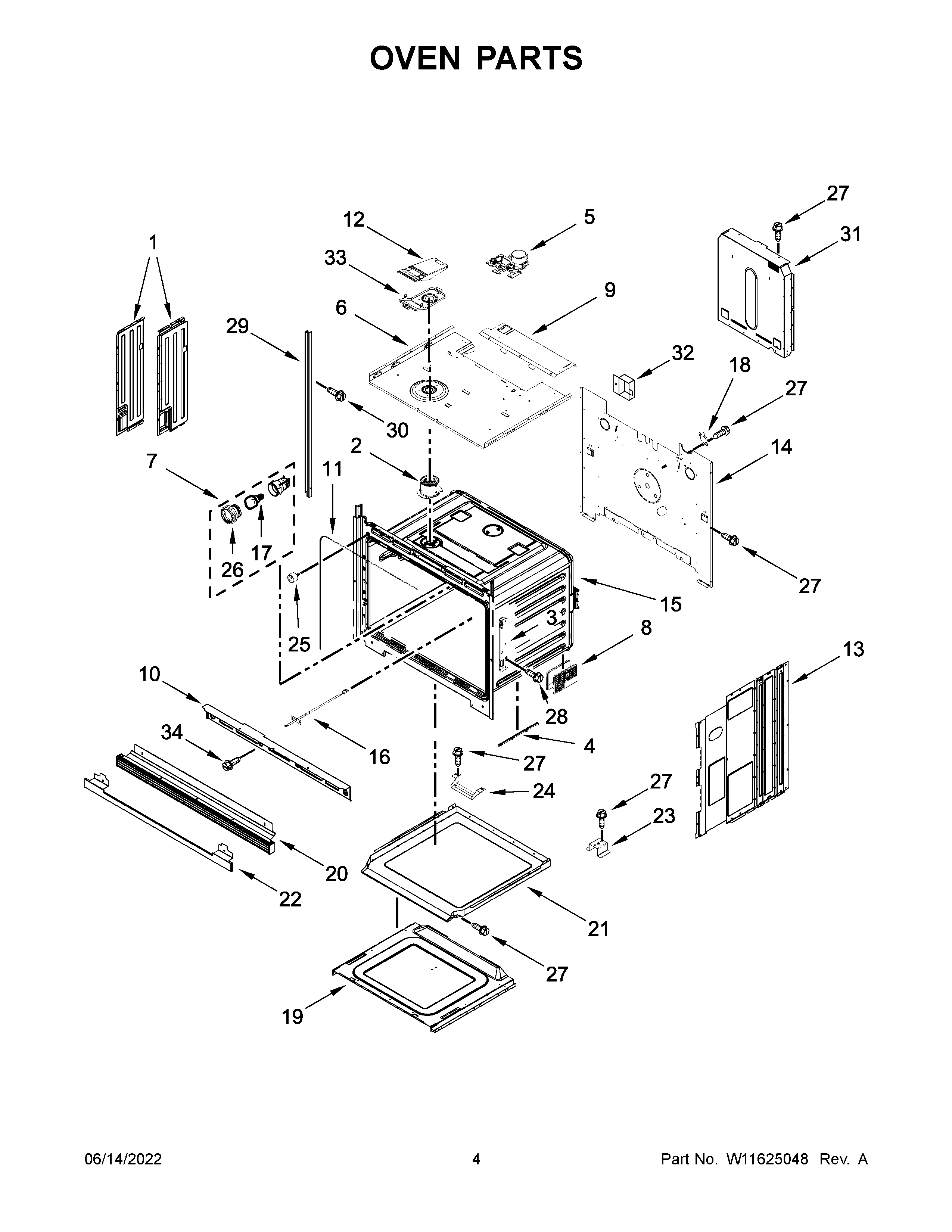

MEW9527FZ20 03 – OVEN PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIINSULATION, BACK
NIINSULATION, WRAP
1AW11598151 Whirlpool Side Cover
1W11598150 Whirlpool Side Cover
2W11240525 Whirlpool Vent Tube
3HINGE-RECV
4W11598116 Whirlpool Spacer
5W11686858 Whirlpool Door Latch
6TOP, CHASSIS
7W11325541 Whirlpool Indicator Light
8W11598170 Whirlpool Level Foot
9W10904163 Whirlpool Vent Deflector
10W11334858 Whirlpool Vent Exhaust
11GASKET, CAVITY
12COVER, VENT EXHAUST
13W11165274 Whirlpool Side Panel
16W11598120 Whirlpool Thermostat
17W11454079 Whirlpool Light Bulb
18WP4449751 Whirlpool Range Oven Thermostat Fix
19BASE, CHASSIS
20W11598189 Whirlpool Vent
21COVR-ACESS
22W11712432 Whirlpool Trim Assembly
23SUPPORT, AIR CHANNEL
24SPACER, CHASSIS BOTTOM DUCT
25W11598125 Whirlpool Bumper
26W11450856 Whirlpool Light Lens
27SCREW
28WPW10254050 Whirlpool Screw
29AW11235462 Whirlpool Mounting Rail
29W11235463 Whirlpool Mounting Rail
30W11602623 Whirlpool Screw
31W11165250 Whirlpool Rear Cover
328285593 Whirlpool Oven Wire Cover
33BASE, VENT EXHAUST
34WPY706189 Whirlpool Stove Screw
