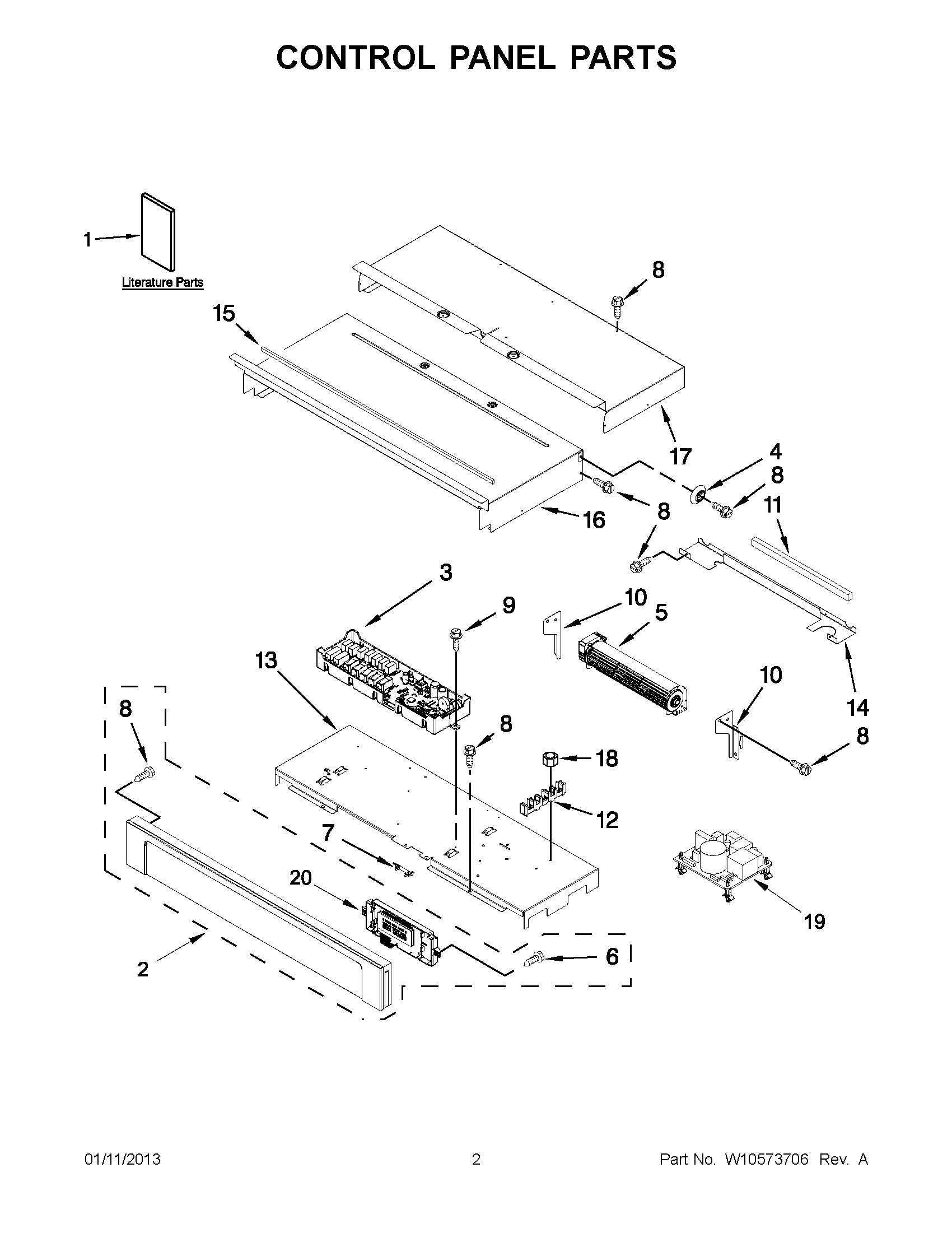

MEW9530AS01 01 – CONTROL PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION (ENGLISH)
1	INSTR, INSTALLER
1	MAY W10354189
1	INSTRUCTIONS, UNDERCOUNTER INSTALL
1	TECH SHEET (ENGLISH/FRENCH)
2	MAY W10540084
2	MAY W10540083
2	MAY W10540085
3	MAY W10496830
4	MAY W10363824
5	BLOWER (UPPER)
6	MAY 7101P403-60
7	MAY W10545255
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	MAY W10283078
10	MAY W10351257
11	BLOCK, FOAM
12	MAY 7401P038-60
13	MAY W10347650
14	MAY W10509164
15	MAY W10351292
16	MAY W10318192
17	CHASSIS, COVER TOP BACK 30“
18	WP7103P027-60 Whirlpool Nut
19	BOARD, POWER SUPPLY
20	MAY W10496841
