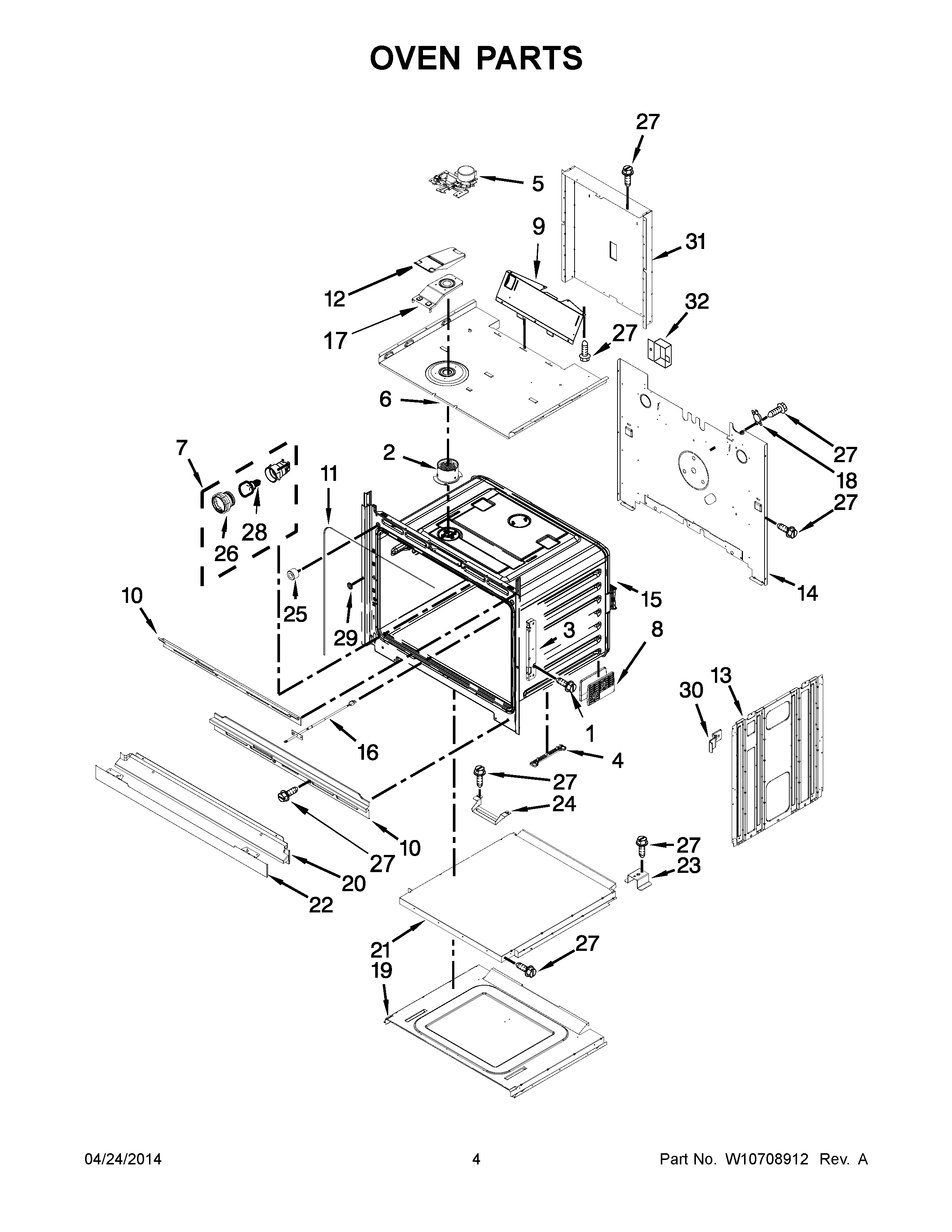

MEW9530DS00 03 – OVEN PARTS

MEW9530DS00 03 – OVEN PARTS

Written by

in

MEW9530DS00 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	MAY W10282944
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10254050
2	MAY W10282946
3	MAY W10616802
4	MAY W10318220
5	MAY W10314880
6	MAY W10641573
7	LIGHT, INDICATOR
8	MAY W10318219
9	MAY W10641572
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10696134
16	MAY 7430P043-60
17	BASE, VENT EXHAUST
18	THERMOSTAT
19	MAY W10282900
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P426- 60
28	MAY W10412711
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
