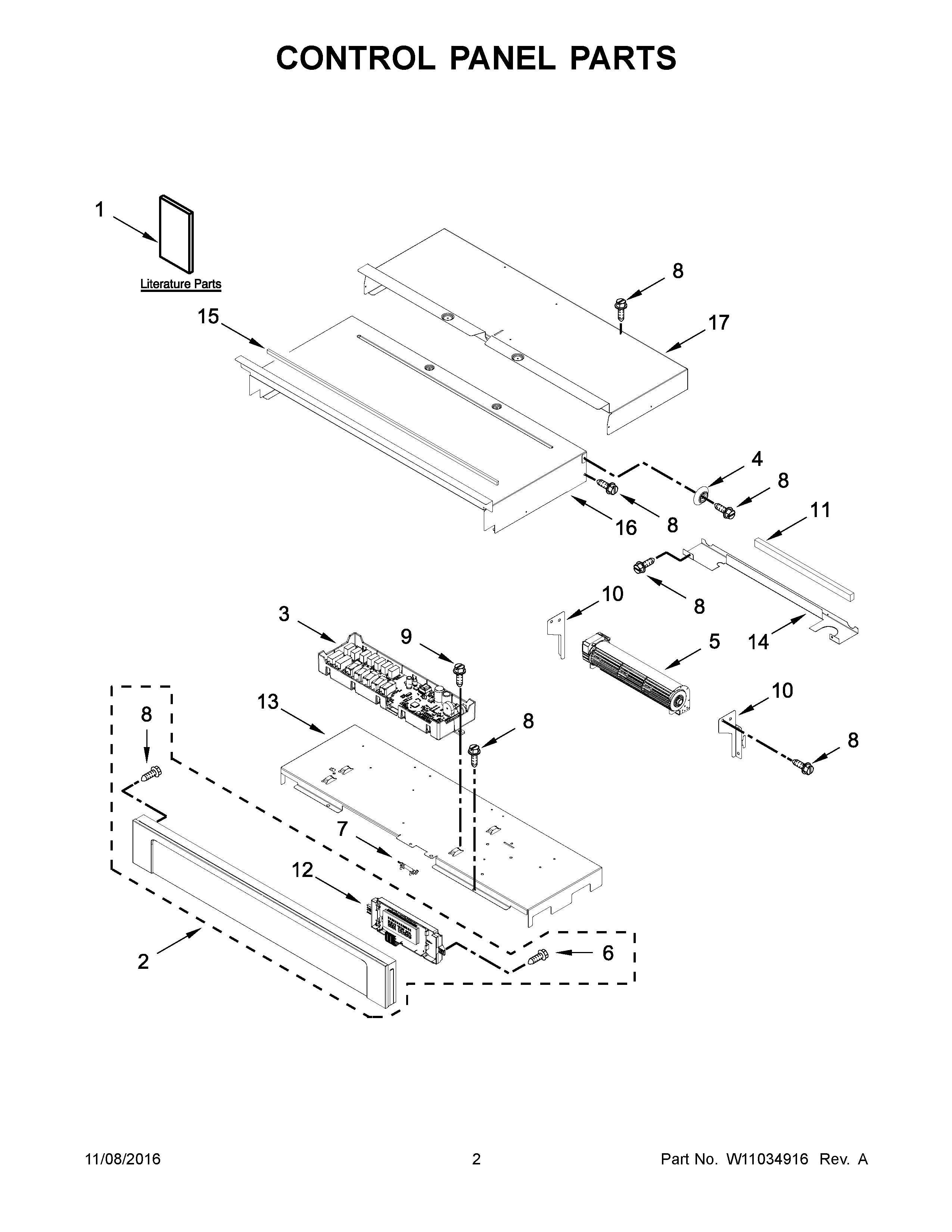

MEW9530FB01 02 – CONTROL PANEL PARTSadmin2025-04-26T09:07:35+00:00MEW9530FB01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | CLAMP, CONDUIT |
| NI | CLIP, HARNESS |
| NI | STRAP, LEAD GROUND |
| NI | WIRING HARNESS PARTS, CONDUIT, SINGLE |
| NI | MAY W10883023 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10775068 |
| NI | HARNESS, EOL (MRC) |
| NI | MAY 4450800 |
| NI | BRACKET, HARNESS |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALL |
| 1B | GUIDE, USE & CARE |
| 1C | MAY W10796080 |
| 1 | MAY W10674133 |
| 2A | MAY W10877210 |
| 2 | MAY W10877211 |
| 3 | CONTROL (MAXWELL), MAIN |
| 4 | SPACER, LATERAL |
| 5 | BLOWER |
| 6 | MAY 7101P403-60 |
| 7 | MAY W10545255 |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10 | BRACKET, BLOWER (LEFT) |
| 10A | BRACKET, BLOWER (RIGHT) |
| 11 | BLOCK, FOAM |
| 12 | INTERFACE (MAXWELL), USER BOARD |
| 13 | MAY W10347650 |
| 14 | CHASSIS, BACK DIVIDER |
| 15 | MAY W10657548 |
| 16 | MAY W10318192 |
| 17 | CHASSIS, COVER TOP BACK 30" |
