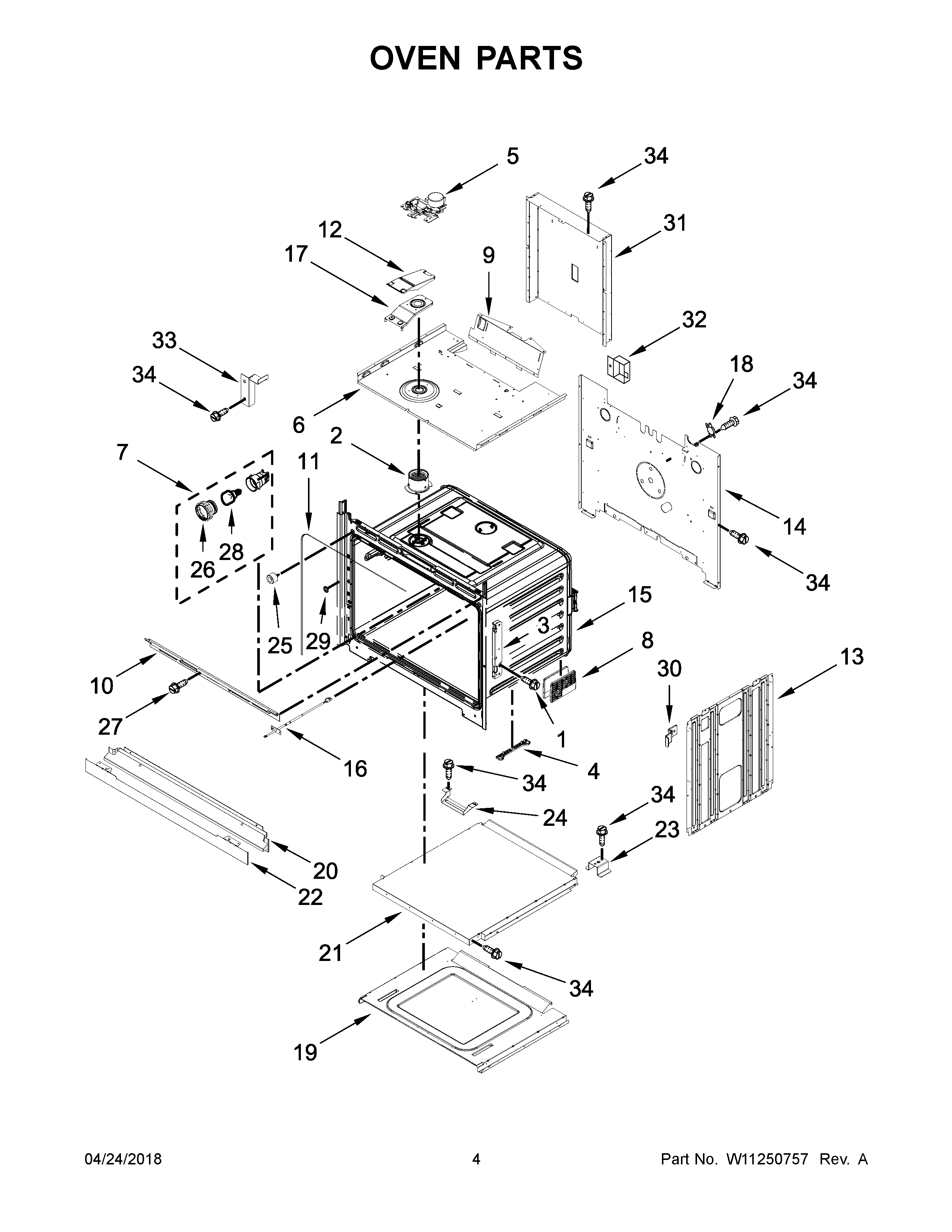

MEW9530FZ03 03 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10254050
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	MAY W10734063
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	MAY W10622170
17	BASE, VENT EXHAUST
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY W10412722
27	MAY 7101P427-60
28	MAY W10412711
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33	BRACKET, SIDE COVER (LEFT)
33A	BRACKET, SIDE COVER (RIGHT)
34	MAY 7101P426- 60
