MEW9530FZ04 03 – OVEN PARTS

MEW9530FZ04 03 – OVEN PARTS

Written by

in

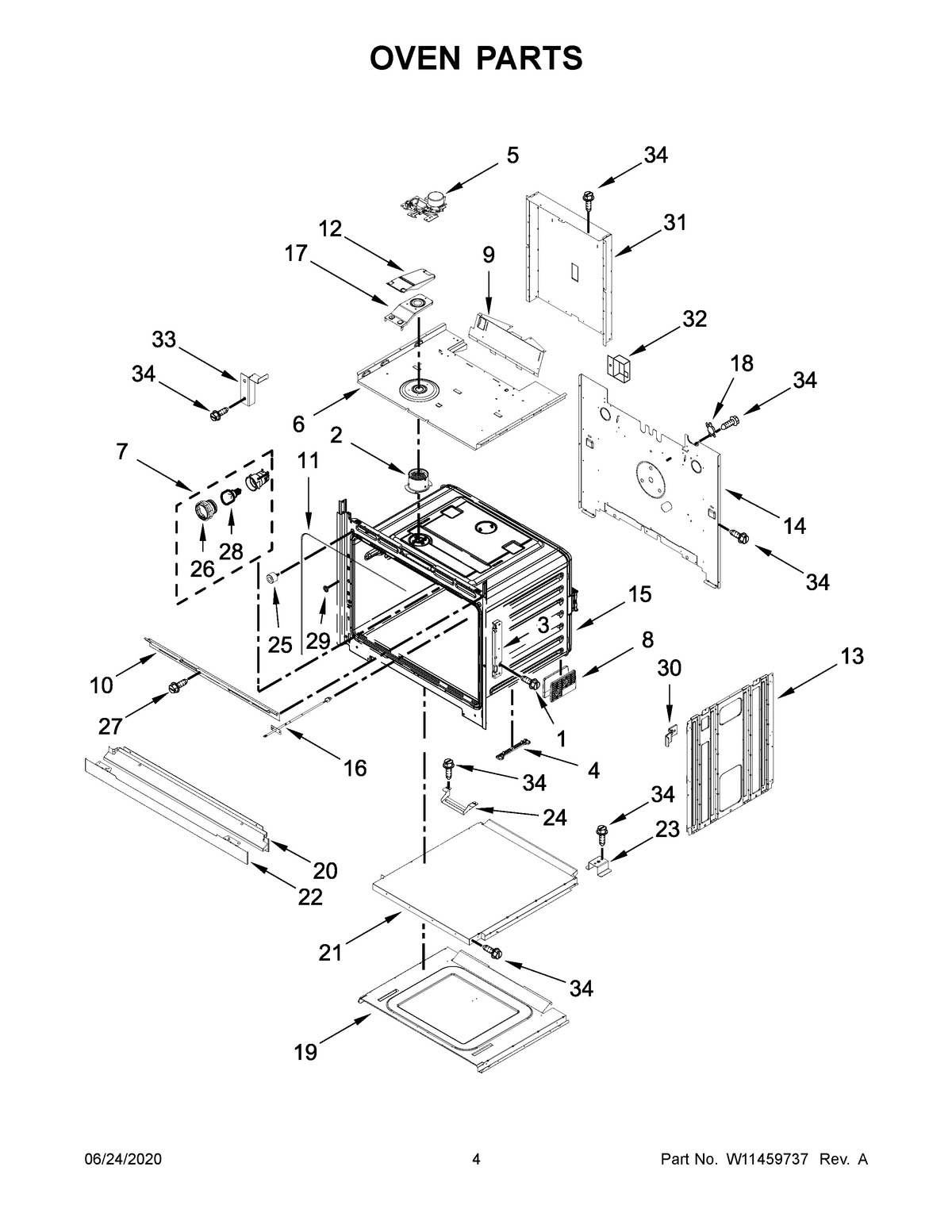

MEW9530FZ04 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, CAVITY
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10254050
2	TUBE, VENT
3	RECEIVER, HINGE
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	ASSEMBLY, LIGHT
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	VENT, TOP 30"
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
16	MAY W10622170
17	BASE, VENT EXHAUST
18	THERMOSTAT
19	BASE, CHASSIS
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	LENS, LIGHT
27	SCREW
28	BULB, LIGHT
29	MAY W10283016
30	MAY W10347649
31	DUCT, CHASSIS BACK
32	MAY 8285593
33A	BRACKET, SIDE COVER (RIGHT)
33	BRACKET, SIDE COVER (LEFT)
34	MAY 7101P426- 60
