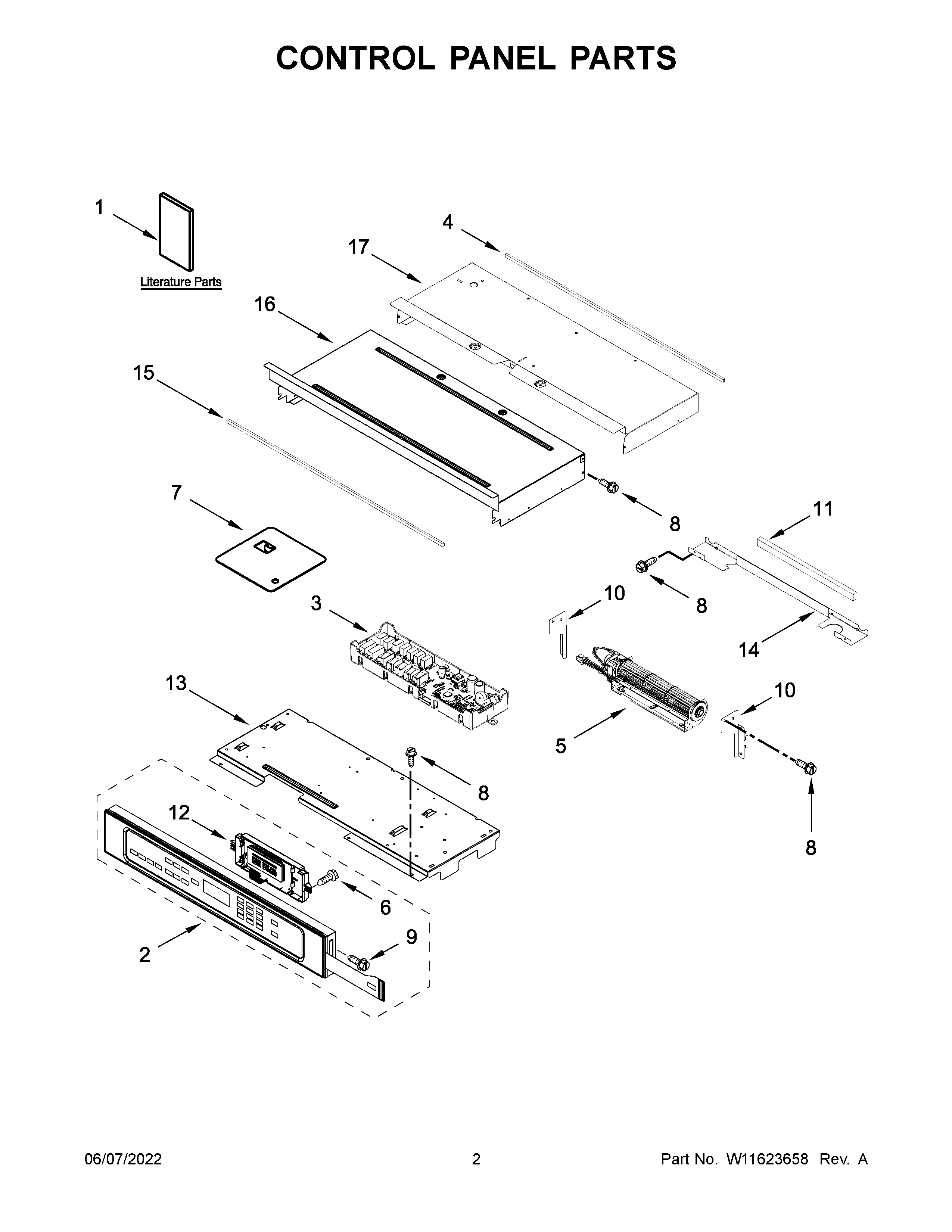

MEW9530FZ20 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIHARNESS, MAIN
NI4448664 Whirlpool Oven Mounting Bracket
NI4450800 Whirlpool Oven Screw
NIW10487999 Whirlpool Clip
NIW10655464 Whirlpool Bracket
NIW11727826 Whirlpool Wire Harness
NISTRAP, LEAD GROUND
NIBAG, HARDWARE
NIW11157775 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1BTECH SHEET
1AQUICK START GUIDE
1OWNER'S MANUAL
2W11624798 Whirlpool Console + Core
3W11598231-includeCORE Whirlpool W11598231 Electronic Control Board + Core
4W10728475 Whirlpool Foam Seal
5BLOWER
6SCREW
7COVER, WIFI
8SCREW
9SCREW (BLACK)
10W10655463 Whirlpool Bracket Mounting
10AW10655462 Whirlpool Mounting Bracket
11W10491987 Whirlpool Foam Seal
12W10803991 Whirlpool Electronic Control Board + Core
13TRAY, ELECTRONIC
14DIVIDER, CHASSIS BACK
15GASKET, RUBBER
16COVER, 30 IN CHASSIS TOP FRONT
17COVER, 30 IN CHASSIS TOP BACK
