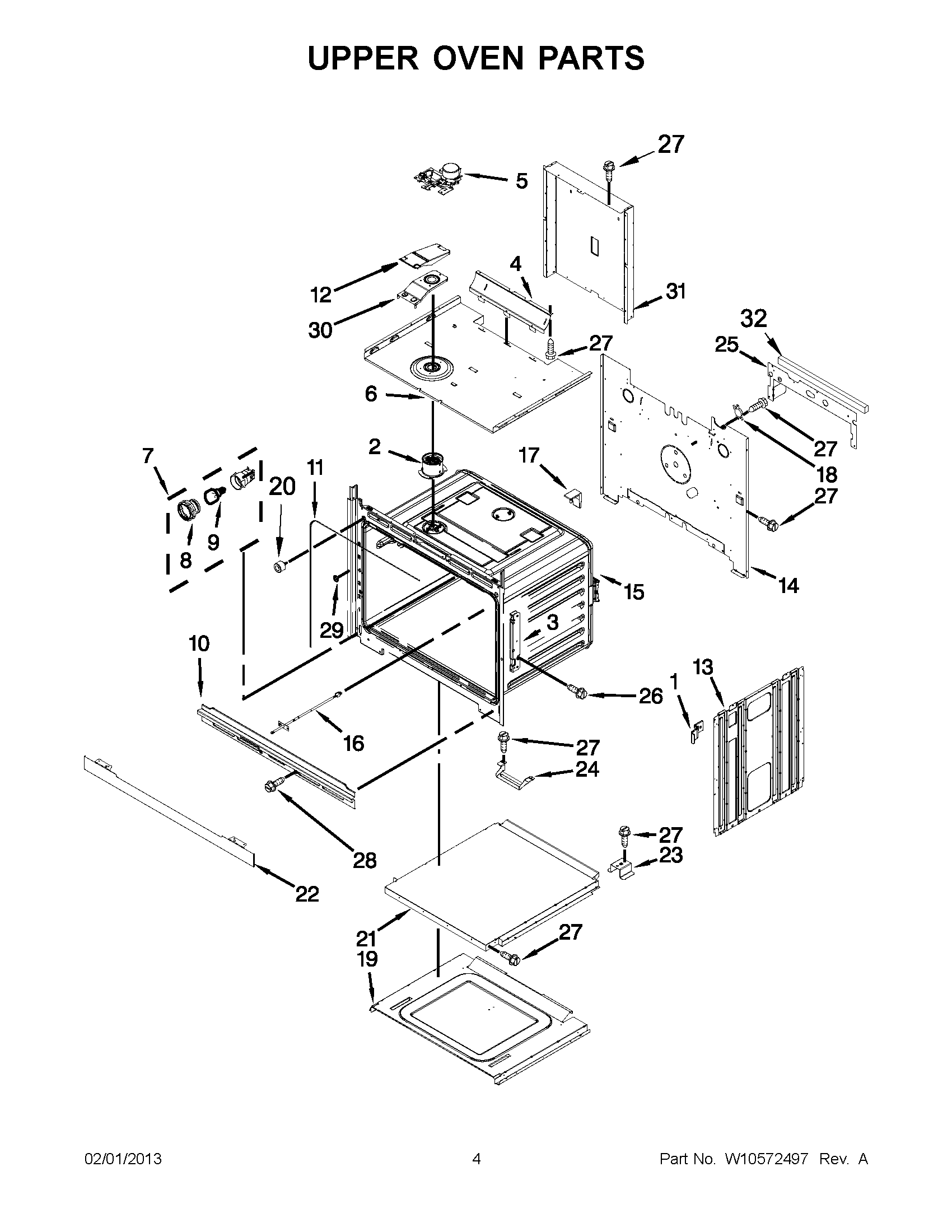

MEW9627AB01 02 – UPPER OVEN PARTS

MEW9627AB01 02 – UPPER OVEN PARTS

Written by

in

MEW9627AB01 02 – UPPER OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK
NIMAY W10520716
1MAY W10347649
2MAY W10282946
3MAY W10282975
4MAY W10351258
5MAY W10314880
6CHASSIS, TOP
7LIGHT, INDICATOR
8MAY W10412722
9MAY W10412711
10MAY W10283041
11MAY W10282961
12MAY W10282985
13SIDE, CHASSIS (RIGHT)
14MAY W10282991
15LINER (NOT A SERVICEABLE PART)
16MAY 7430P043-60
17MAY W10392683
18THERMOSTAT
19MAY W10282901
20BUMPER & SCREW
21CHASSIS, BOTTOM DUCT
22MAY W10327378
22MAY W10351237
23MAY W10213759
24SPACER, CHASSIS BOTTOM DUCT
25MAY W10504028
26MAY W10254050
27MAY 7101P426-
28MAY 4450038
29MAY W10283016
30MAY W10282984
31DUCT, CHASSIS BACK
32BLOCK, FOAM
