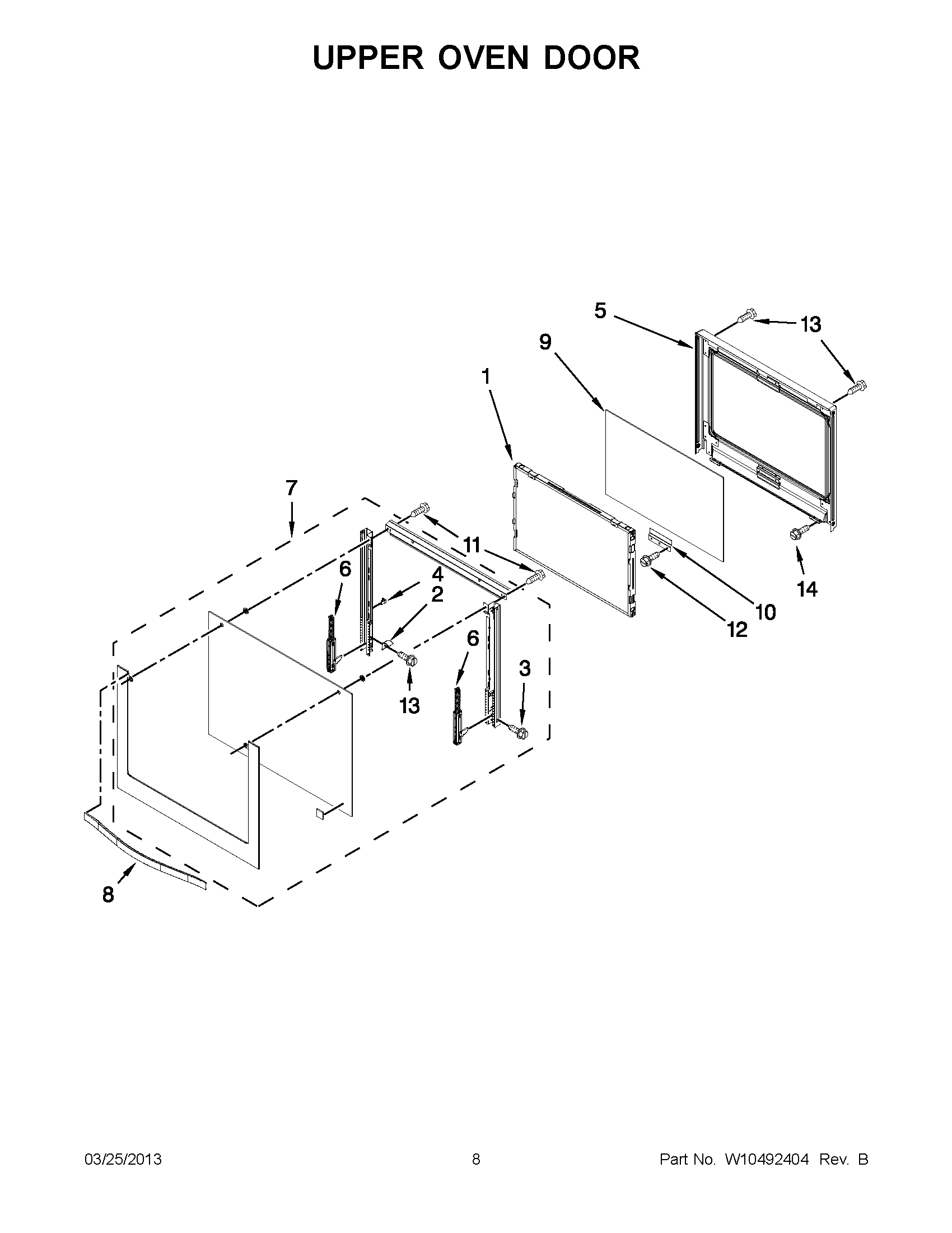

MEW9627AS00 04 – UPPER OVEN DOOR

MEW9627AS00 04 – UPPER OVEN DOOR

Written by

in

MEW9627AS00 04 – UPPER OVEN DOOR

Products

Position	Product
1	MAY W10347597
2	MAY W10284285
3	SCREW
4	MAY W10392683
5	ASSEMBLY, LINER WELDED
6	MAY W10282976
7	MAY W10364121
7	MAY W10364120
7	MAY W10364122
8	HANDLE, DOOR (BLACK)
8	HANDLE, DOOR (WHITE)
8	HANDLE, DOOR (STAINLESS)
9	LINER, INNER GLASS
10	MAY W10284297
11	MAY 9780271
12	MAY 7101P426- 60
13	MAY 7101P653-60
14	MAY 7101P635-60
