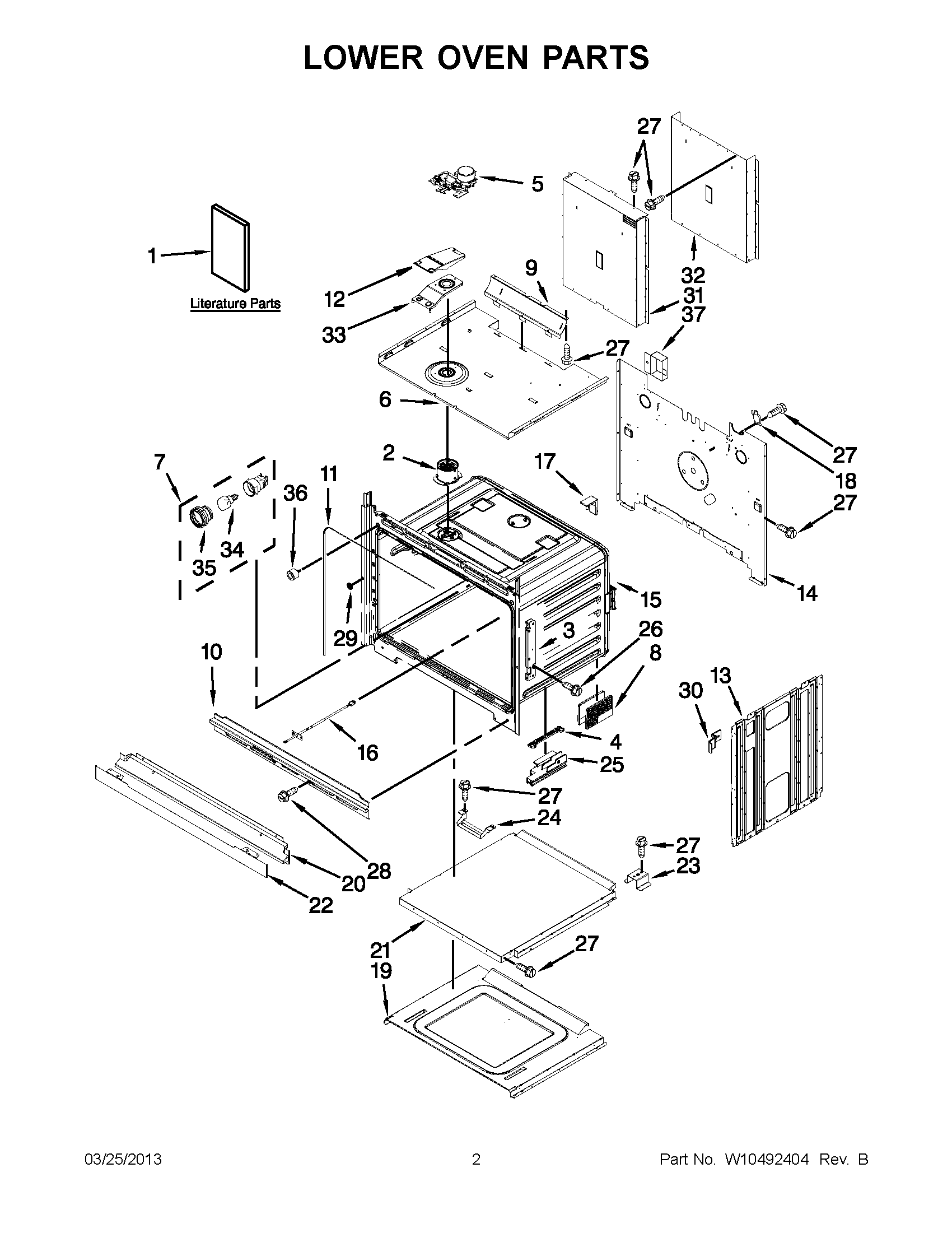

MEW9627AW00 01 – LOWER OVEN PARTSadmin2025-04-26T09:08:21+00:00MEW9627AW00 01 – LOWER OVEN PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10520716 |
| 1 | TECH SHEET (ENGLISH/FRENCH) |
| 1 | MAY W10354189 |
| 1 | INSTRUCTIONS, INSTALLATION (ENGLISH) |
| 1 | INSTR, INSTALLER |
| 2 | MAY W10282946 |
| 3 | MAY W10282975 |
| 4 | MAY W10318220 |
| 5 | MAY W10314880 |
| 6 | CHASSIS, TOP |
| 7 | LIGHT, INDICATOR |
| 8 | MAY W10318219 |
| 9 | MAY W10351258 |
| 10 | MAY W10283041 |
| 11 | MAY W10282961 |
| 12 | MAY W10282985 |
| 13 | SIDE, CHASSIS (RIGHT) |
| 14 | MAY W10282991 |
| 16 | MAY 7430P043-60 |
| 17 | MAY W10392683 |
| 18 | THERMOSTAT |
| 19 | MAY W10282901 |
| 20 | MAY W10327375 |
| 20 | MAY W10351280 |
| 21 | CHASSIS, BOTTOM DUCT |
| 22 | MAY W10351237 |
| 22 | MAY W10327378 |
| 23 | MAY W10213759 |
| 24 | SPACER, CHASSIS BOTTOM DUCT |
| 25 | FOOT, FRONT RIGHT |
| 25 | FOOT, FRONT LEFT |
| 26 | MAY W10254050 |
| 27 | MAY 7101P426- 60 |
| 28 | MAY 4450038 |
| 29 | MAY W10283016 |
| 30 | MAY W10347649 |
| 31 | DUCT, CHASSIS BACK |
| 32 | DUCT, CHASSIS BACK (LOWER) |
| 33 | MAY W10282984 |
| 34 | MAY W10412711 |
| 35 | MAY W10412722 |
| 36 | BUMPER & SCREW |
| 37 | MAY 8285593 |
