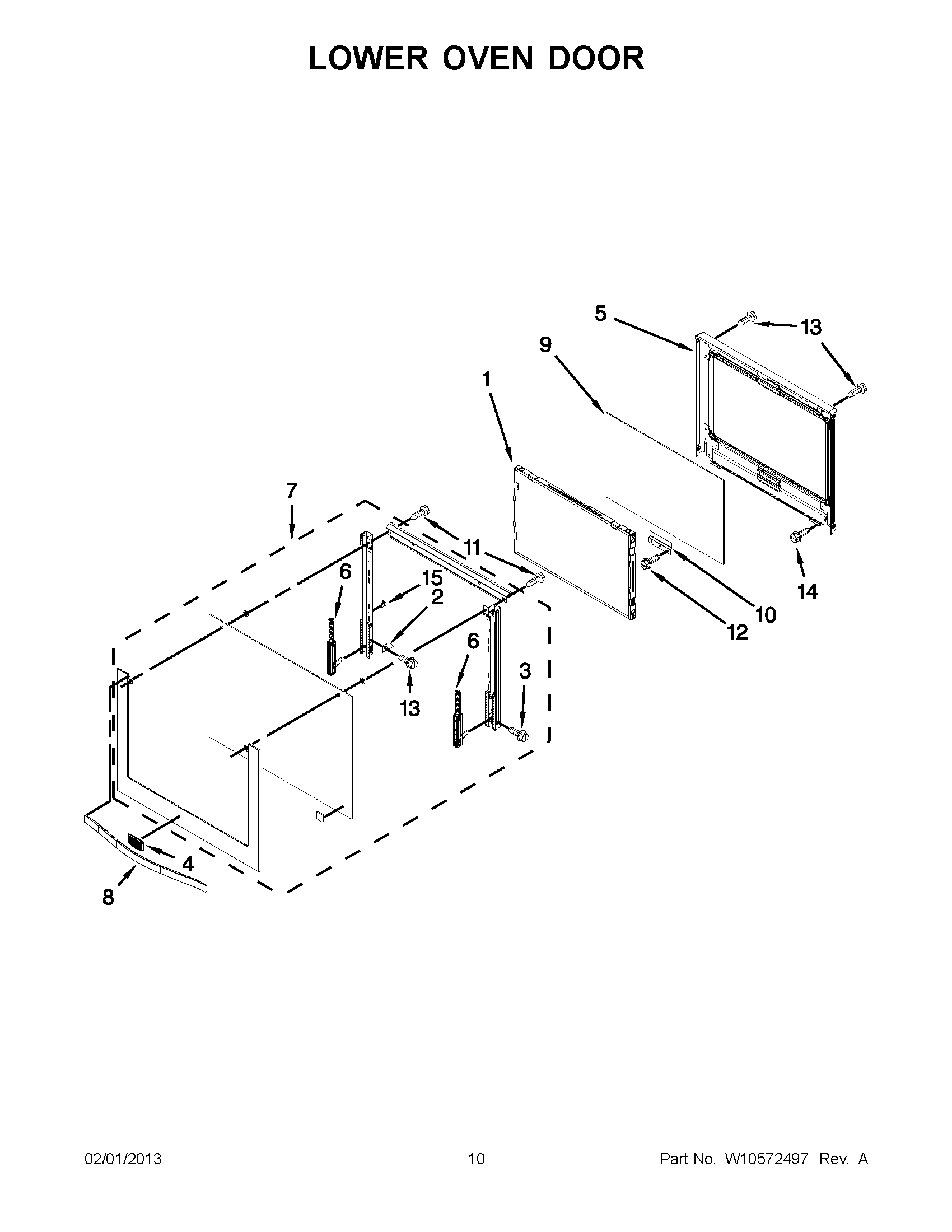

MEW9627AW01 05 – LOWER OVEN DOOR

MEW9627AW01 05 – LOWER OVEN DOOR

Written by

in

MEW9627AW01 05 – LOWER OVEN DOOR

Products

PositionProduct
1MAY W10347597
2MAY W10284285
3SCREW
4BADGE (BLACK)
5ASSEMBLY, LINER WELDED
6MAY W10282976
7MAY W10364113
7MAY W10364111
7MAY W10364112
8HANDLE, DOOR (WHITE)
8HANDLE, DOOR (BLACK)
8HANDLE, DOOR (STAINLESS)
9LINER, INNER GLASS
10MAY W10284297
11MAY W10491021
12MAY 7101P426- 60
13MAY 7101P653-60
14MAY 7101P635-60
15MAY W10392683
