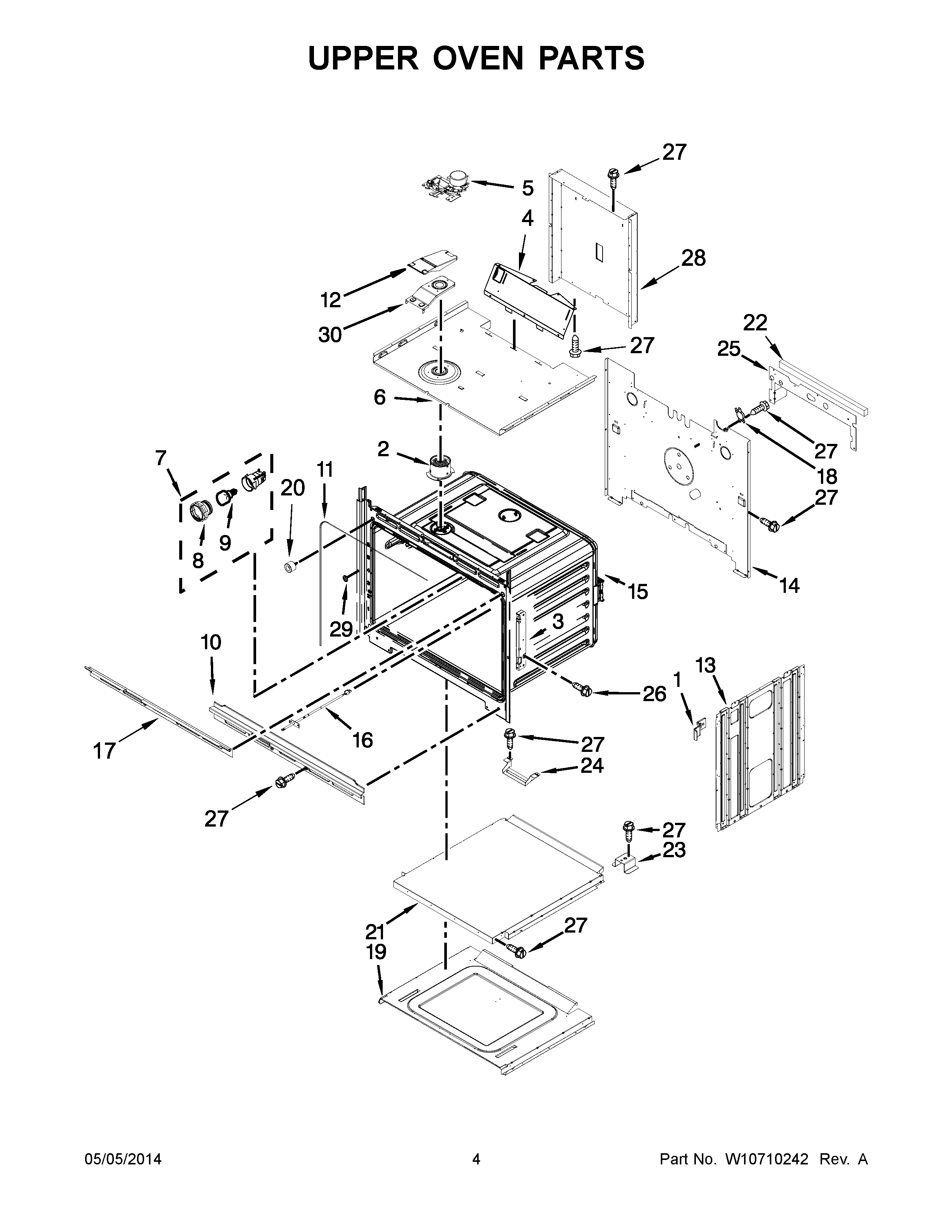

MEW9627DS00 03 – UPPER OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
NI	MAY W10520716
1	MAY W10347649
2	MAY W10282946
3	MAY W10616802
4	MAY W10641572
5	MAY W10314880
6	MAY W10641574
7	LIGHT, INDICATOR
8	MAY W10412722
9	MAY W10412711
10	MAY W10283041
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10696136
16	MAY 7430P043-60
17	MAY W10283037
18	THERMOSTAT
19	MAY W10282901
20	BUMPER & SCREW
21	CHASSIS, BOTTOM DUCT
22	BLOCK, FOAM
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	MAY W10504028
26	MAY W10254050
27	MAY 7101P426- 60
28	DUCT, CHASSIS BACK
29	MAY W10283016
30	BASE, VENT EXHAUST
