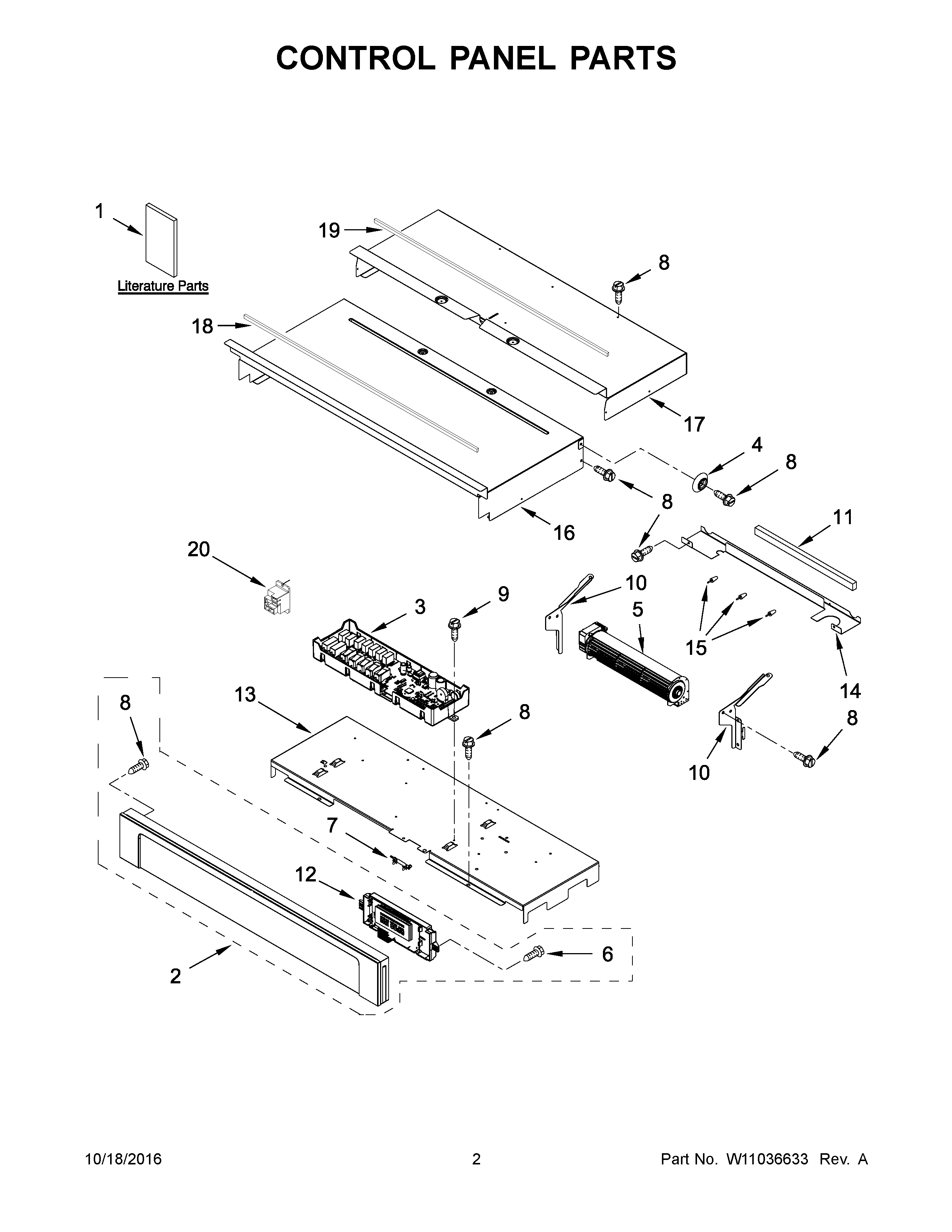

MEW9627FB01 02 – CONTROL PANEL PARTSadmin2025-04-26T09:09:07+00:00MEW9627FB01 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| NI | CLIP, HARNESS |
| NI | MAY W10775068 |
| NI | BRACKET, HARNESS |
| NI | CLAMP, CONDUIT |
| NI | STRAP, LEAD GROUND |
| NI | HARNESS, SIGNAL |
| NI | MAY W10436188 |
| NI | HARNESS, EOL (MRC) |
| NI | MAY W10876817 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10766377 |
| NI | MAY 4450800 |
| 1 | MAY W10674133 |
| 1A | GUIDE, USE & CARE |
| 1B | SHEET, TECH |
| 2A | MAY W10877219 |
| 2 | MAY W10877220 |
| 3 | ASSEMBLY, MAXWELL CONTROL |
| 4 | SPACER, LATERAL |
| 5 | BLOWER |
| 6 | MAY 7101P403-60 |
| 7 | MAY W10545291 |
| 8 | MAY 7101P426- 60 |
| 9 | MAY 7101P434-60 |
| 10 | BRACKET, BLOWER (LEFT) |
| 10A | BRACKET, BLOWER (RIGHT) |
| 11 | BLOCK, FOAM |
| 12 | ASSEMBLY, DISPLAY |
| 13 | MAY W10283005 |
| 14 | CHASSIS, BACK DIVIDER |
| 15 | MAY W10351295 |
| 16 | MAY W10318193 |
| 17 | CHASSIS, COVER TOP BACK 27" |
| 18 | MAY W10671226 |
| 19 | GASKET, RUBBER |
| 20 | RELAY, POWER (12V DC COIL) |
