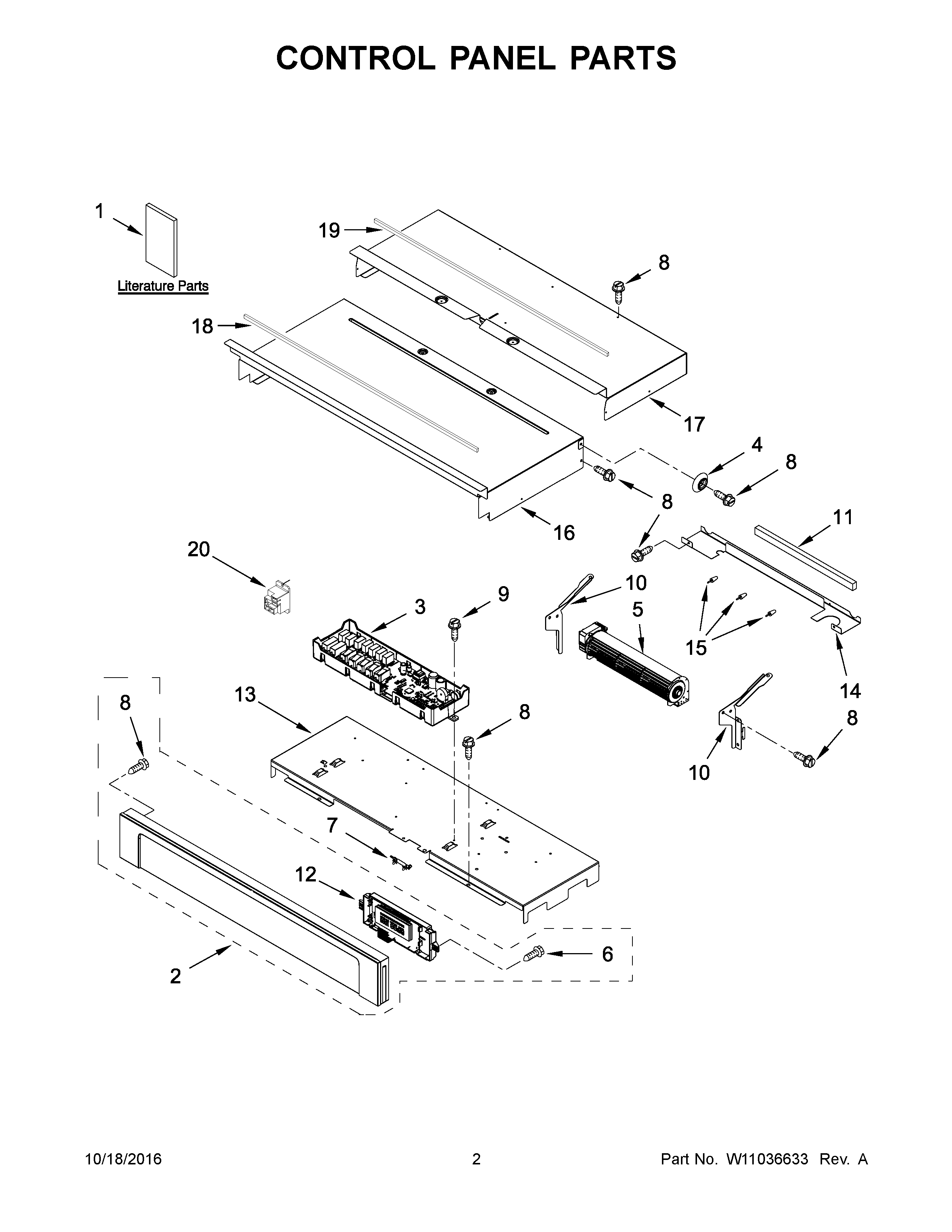

MEW9627FW01 02 – CONTROL PANEL PARTS

MEW9627FW01 02 – CONTROL PANEL PARTS

Written by

in

MEW9627FW01 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	MAY W10775068
NI	BRACKET, HARNESS
NI	CLAMP, CONDUIT
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	MAY W10436188
NI	HARNESS, EOL (MRC)
NI	MAY W10876817
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10766377
NI	MAY 4450800
1	MAY W10674133
1A	GUIDE, USE & CARE
1B	SHEET, TECH
2A	MAY W10877219
2	MAY W10877220
3	ASSEMBLY, MAXWELL CONTROL
4	SPACER, LATERAL
5	BLOWER
6	MAY 7101P403-60
7	MAY W10545291
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	BRACKET, BLOWER (LEFT)
10A	BRACKET, BLOWER (RIGHT)
11	BLOCK, FOAM
12	ASSEMBLY, DISPLAY
13	MAY W10283005
14	CHASSIS, BACK DIVIDER
15	MAY W10351295
16	MAY W10318193
17	CHASSIS, COVER TOP BACK 27"
18	MAY W10671226
19	GASKET, RUBBER
20	RELAY, POWER (12V DC COIL)
