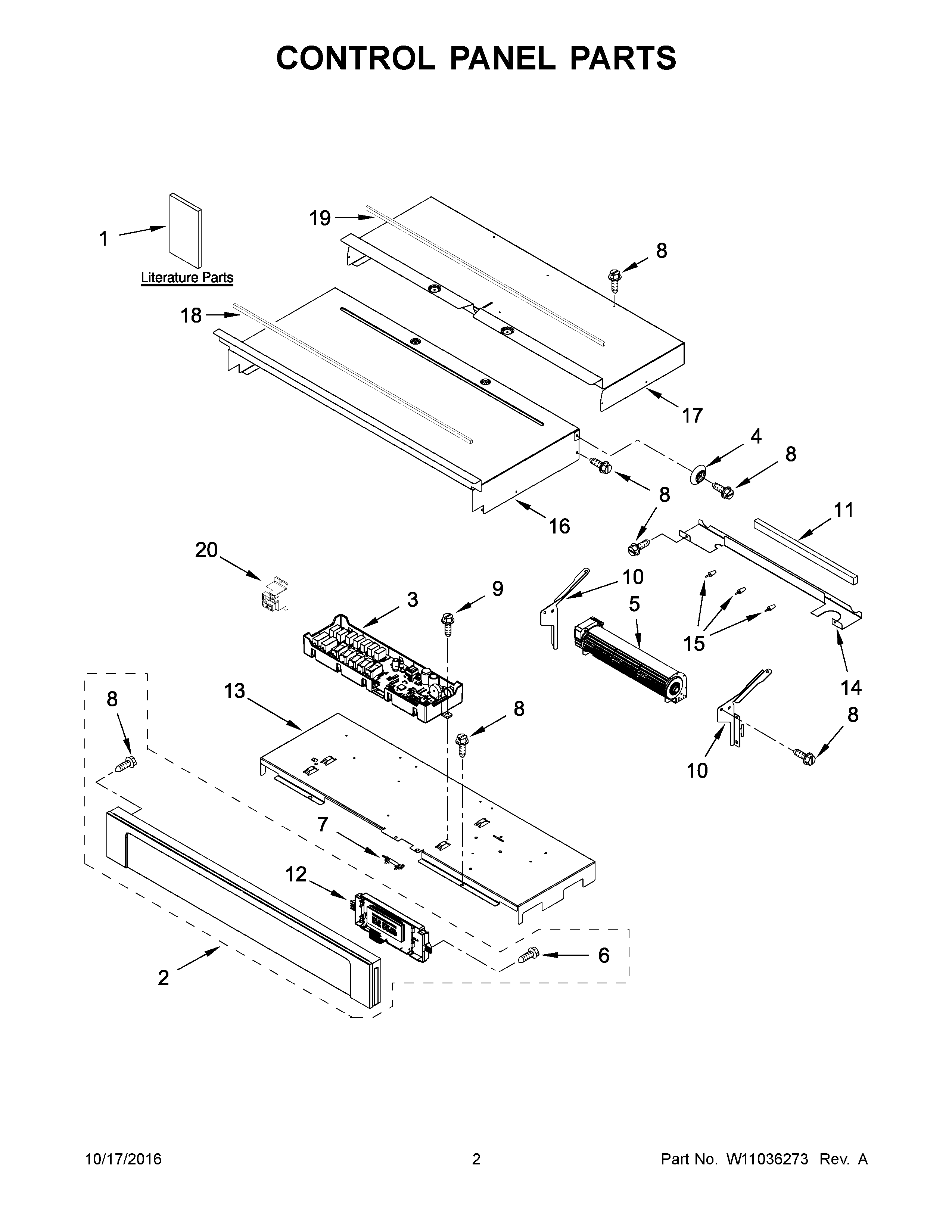

MEW9627FZ02 02 – CONTROL PANEL PARTS

MEW9627FZ02 02 – CONTROL PANEL PARTS

Written by

in

MEW9627FZ02 02 – CONTROL PANEL PARTS

Products

PositionProduct
NICLIP, HARNESS
NISTRAP, LEAD GROUND
NIHARNESS, SIGNAL
NICLAMP, CONDUIT
NIBRACKET, HARNESS
NILINER (NOT A SERVICEABLE PART)
NIMAY W10766377
NIHARNESS, EOL (MRC)
NIMAY 4450800
NIMAY W10876817
NIMAY W10775068
1BSHEET, TECH
1AGUIDE, USE & CARE
1MAY W10674133
2MAY W10877217
3ASSEMBLY, MAXWELL CONTROL
4SPACER, LATERAL
5BLOWER
6MAY 7101P403-60
7MAY W10545291
8MAY 7101P426- 60
9MAY 7101P434-60
10BRACKET, BLOWER (LEFT)
10ABRACKET, BLOWER (RIGHT)
11BLOCK, FOAM
12ASSEMBLY, DISPLAY
13MAY W10283005
14CHASSIS, BACK DIVIDER
15MAY W10351295
16MAY W10318193
17CHASSIS, COVER TOP BACK 27"
18MAY W10671226
19GASKET, RUBBER
20RELAY, POWER (12V DC COIL)
