MEW9627FZ02 03 – OVEN PARTS

MEW9627FZ02 03 – OVEN PARTS

Written by

in

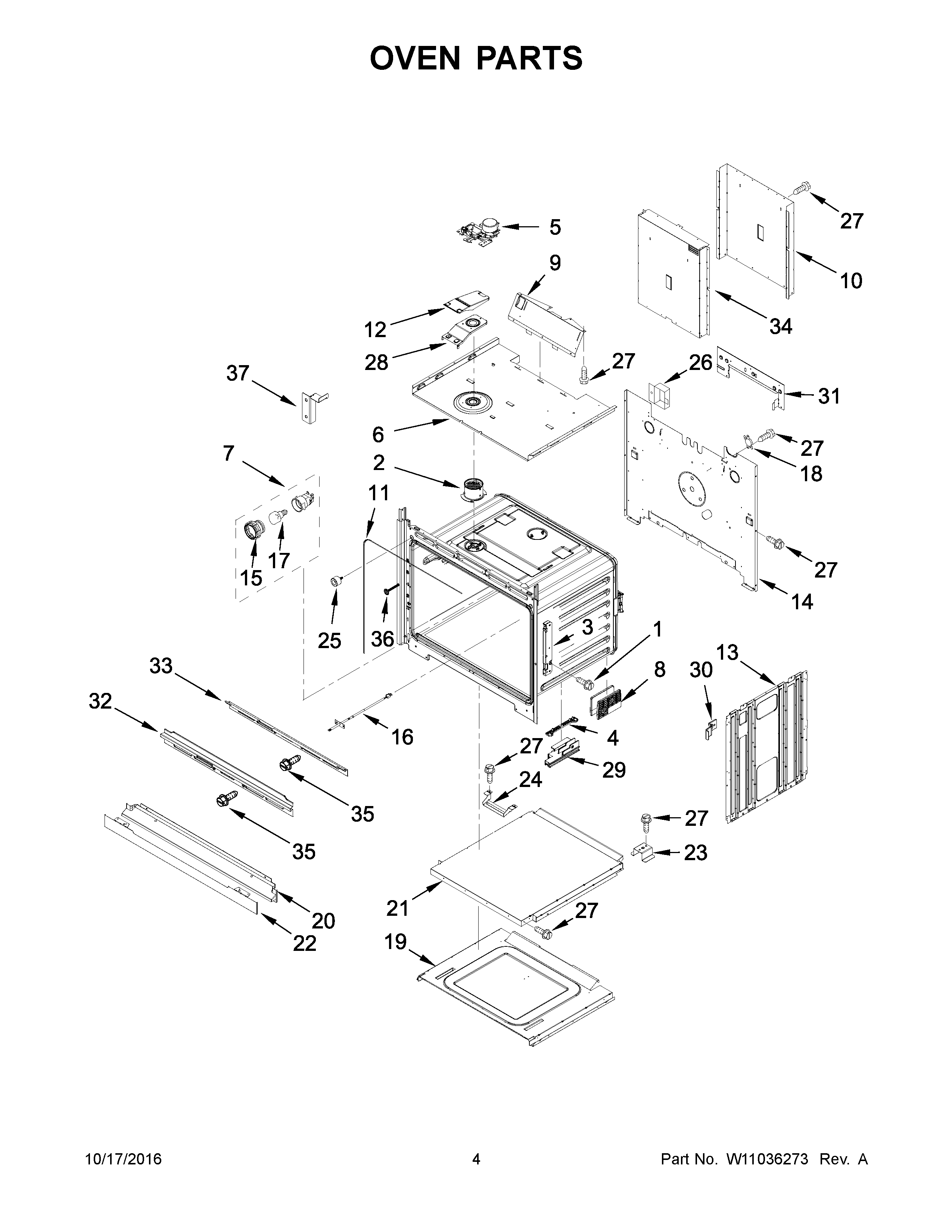

MEW9627FZ02 03 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10520716
1	MAY W10254050
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	MAY W10813744
7	MAY W10734063
8	FOOT, BASE
9	MAY W10641572
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282961
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813734
15	MAY W10412722
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282901
20	MAY W10869572
21	CHASSIS, BOTTOM DUCT
22	MAY W10327378
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10618103
29A	MAY W10618104
30	MAY W10347649
31	MAY W10588736
32	MAY W10730176
33	MAY W10283037
34	DUCT, CHASSIS BACK
35	MAY W10607120
36	MAY W10283016
37A	BRACKET, SIDE COVER (RIGHT)
37	BRACKET, SIDE COVER (LEFT)
