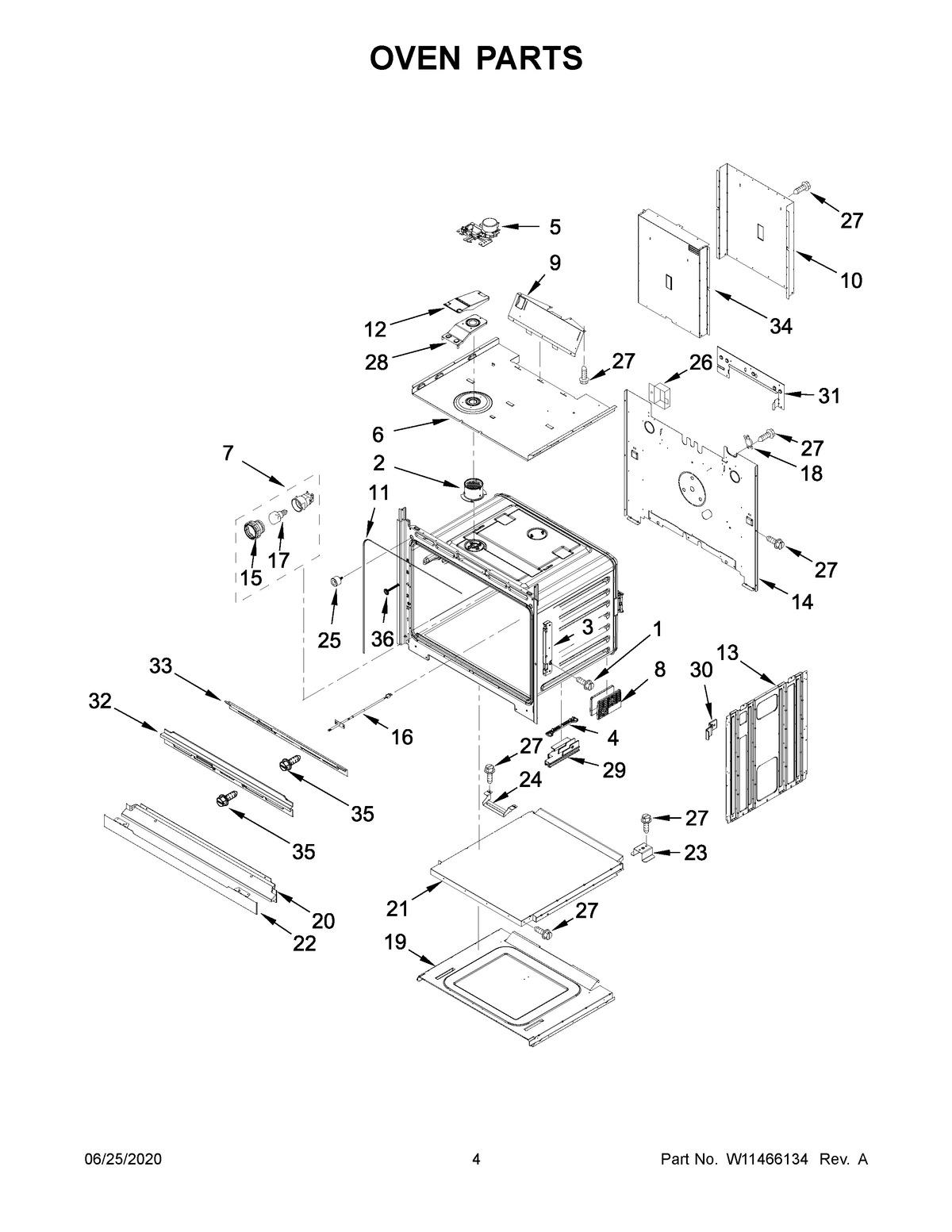

MEW9627FZ04 03 – OVEN PARTS

MEW9627FZ04 03 – OVEN PARTS

Written by

in

MEW9627FZ04 03 – OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK
NIMAY W10520716
NILINER (NOT A SERVICEABLE PART)
1MAY W10254050
2TUBE, VENT
3RECEIVER, HINGE
4SPACER, BASE
5LATCH, MOTORIZED
6CHASSIS, TOP
7ASSEMBLY, LIGHT
8FOOT, BASE
9DEFLECTOR, BLOWER
10DUCT, CHASSIS BACK (LOWER)
11MAY W10282961
12COVER, VENT EXHAUST
13SIDE, CHASSIS (RIGHT)
14BACK, CHASSIS
15LENS, LIGHT
16MAY W10622170
17BULB, LIGHT
18THERMOSTAT
19MAY W10282901
20MAY W10351280
21CHASSIS, BOTTOM DUCT
22MAY W10327378
23MAY W10213759
24SPACER, CHASSIS BOTTOM DUCT
25BUMPER & SCREW
26MAY 8285593
27MAY 7101P426- 60
28BASE, VENT EXHAUST
29AMAY W10618104
29MAY W10618103
30MAY W10347649
31MAY W10588736
32MAY W10730176
33MAY W10283037
34DUCT, CHASSIS BACK
35SCREW
36MAY W10283016
