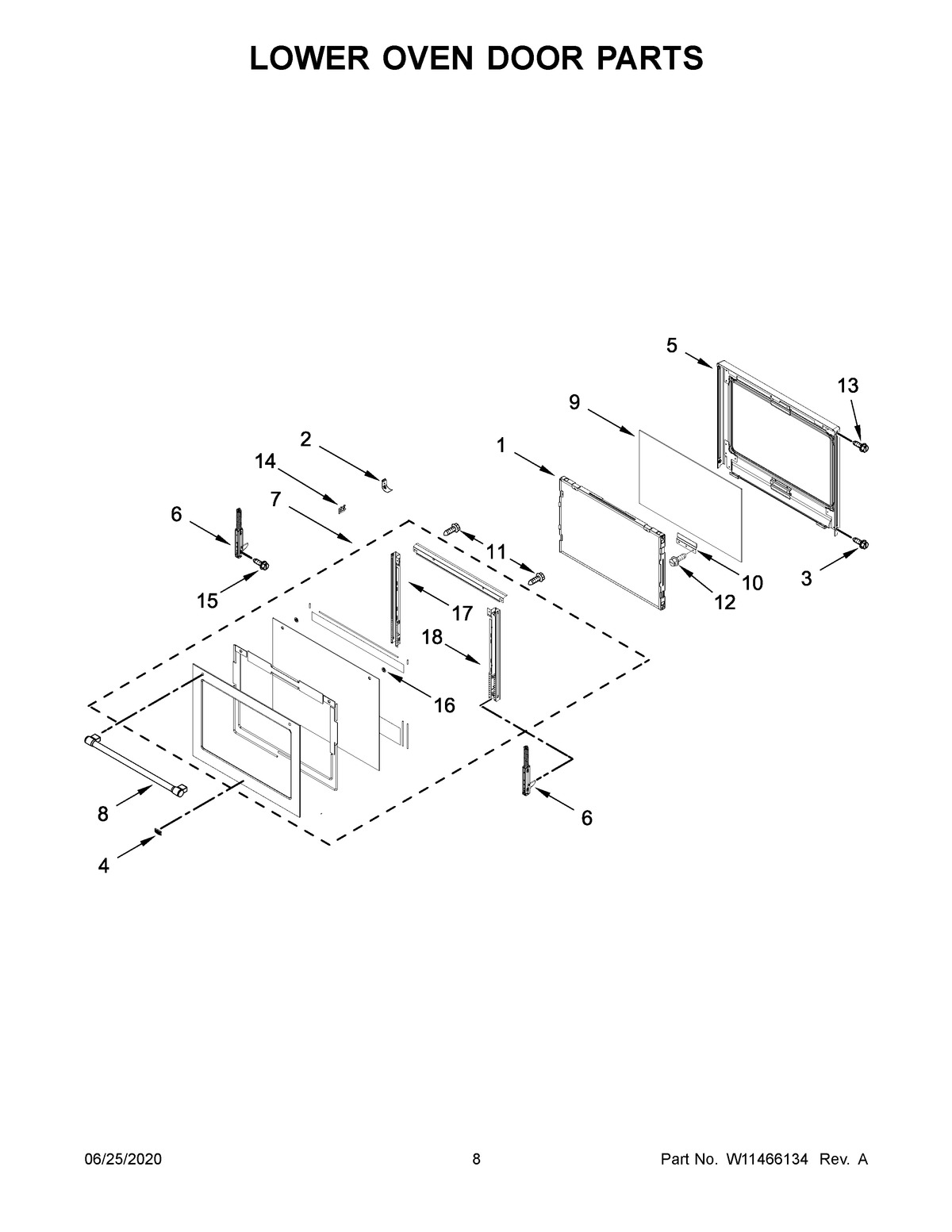

MEW9627FZ04 05 – LOWER OVEN DOOR PARTS

MEW9627FZ04 05 – LOWER OVEN DOOR PARTS

Written by

in

MEW9627FZ04 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
1	MAY W11383650
2	MAY W10284285
3	MAY 7101P635-60
4	BADGE
5	ASSEMBLY, LINER WELDED
6	MAY W10639071
7	MAY W11318330
8	MAY W10834519
9	MAY W11368483
10	MAY W10284297
11	SCREW
12	MAY 7101P427-60
13	MAY 7101P426- 60
14	MAY W10653954
15	SCREW
16	WASHER, DOOR
17	RAIL, DOOR SIDE (LEFT)
18	RAIL, DOOR SIDE (RIGHT)
