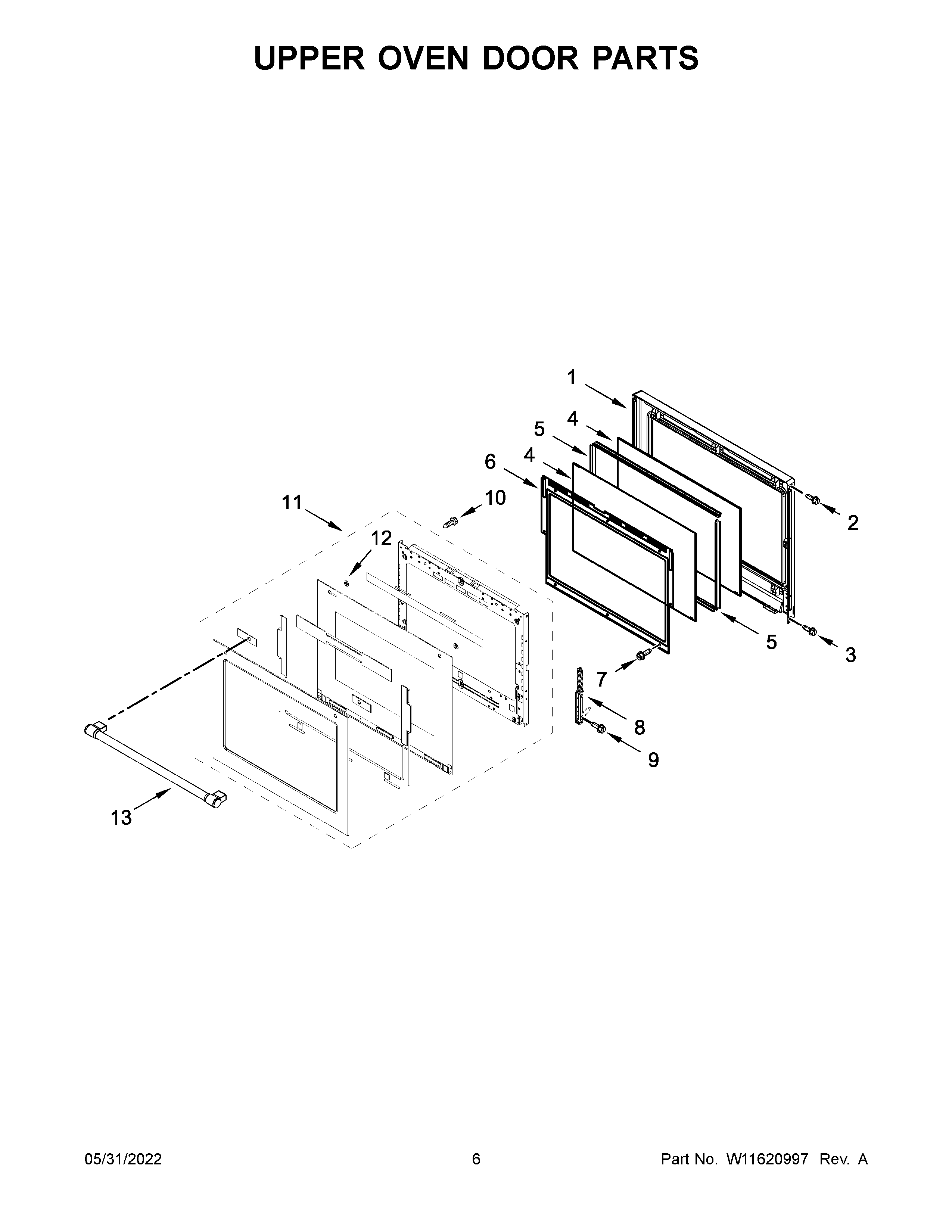

MEW9627FZ20 04 – UPPER OVEN DOOR PARTS

Products

PositionProduct
1W11598186 Whirlpool Glass Frame
2SCREW
3W11617225 Whirlpool Oven Screw
4WPW10284902 Whirlpool Door Glass
5W11598187 Whirlpool Bracket Assembly
6W11598188 Whirlpool Retainer
7SCREW
8W11598229 Whirlpool Door Hinge Assembly
8AW11598230 Whirlpool Door Hinge
9WP3196183 Whirlpool Screw
10W11602624 Whirlpool Oven Screw
11W11600243 Whirlpool Door Glass
12W11676355 Whirlpool Washer
13W10915198 Whirlpool Door Handle
