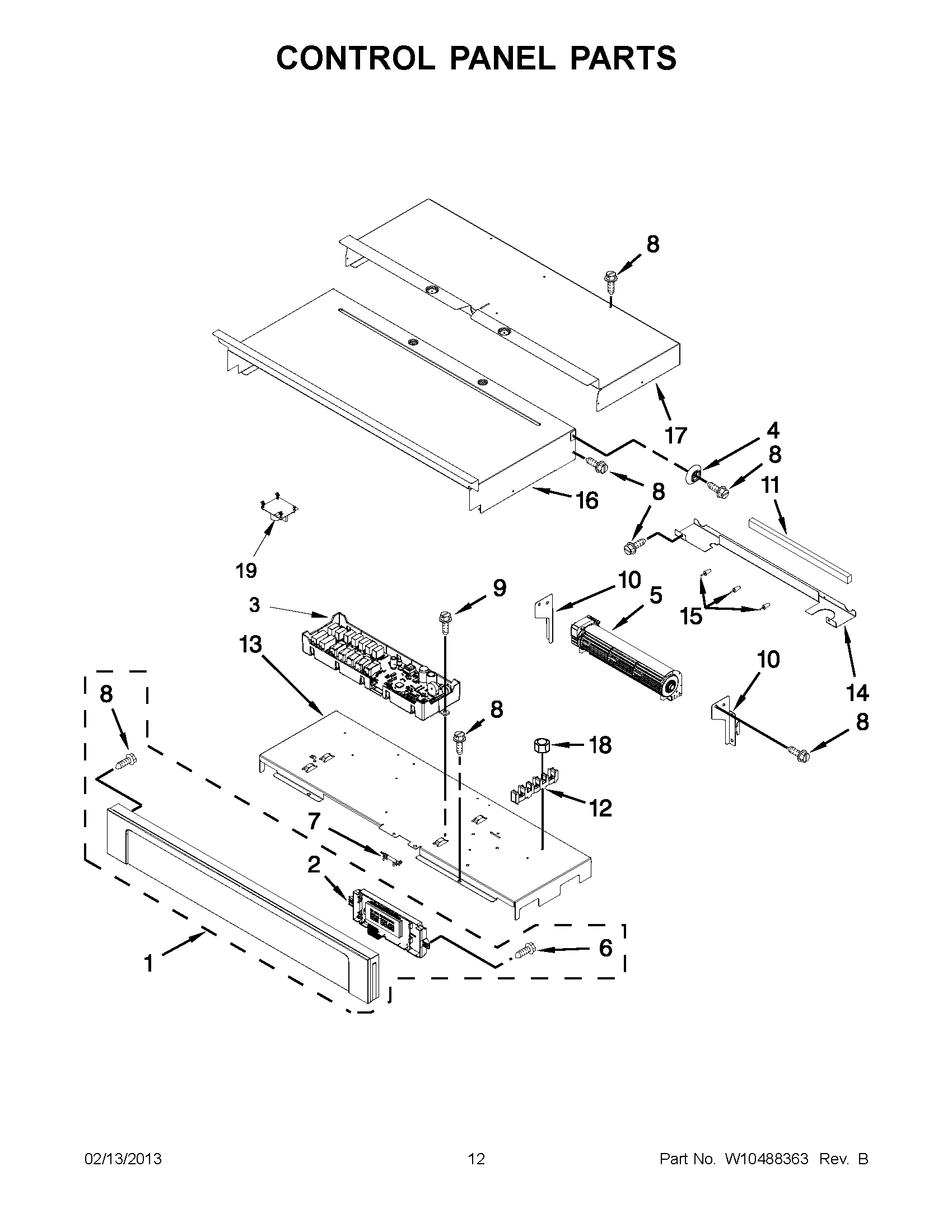

MEW9630AB00 06 – CONTROL PANEL PARTS

MEW9630AB00 06 – CONTROL PANEL PARTS

Written by

in

MEW9630AB00 06 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10354539
1	MAY W10354538
1	MAY W10354540
2	MAY W10259691
3	BOARD, MRC2 MAIN
4	MAY W10363824
5	BLOWER (LOWER)
6	MAY 7101P403-60
7	MAY W10436435
8	MAY 7101P426- 60
9	MAY 7101P434-60
10	MAY W10351257
10	MAY W10283078
11	BLOCK, FOAM
12	MAY 7401P038-60
13	MAY W10347650
14	MAY W10509164
15	MAY W10351295
16	MAY W10318192
17	CHASSIS, COVER TOP BACK 30“
18	WP7103P027-60 Whirlpool Nut
19	BOARD, POWER SUPPLY
