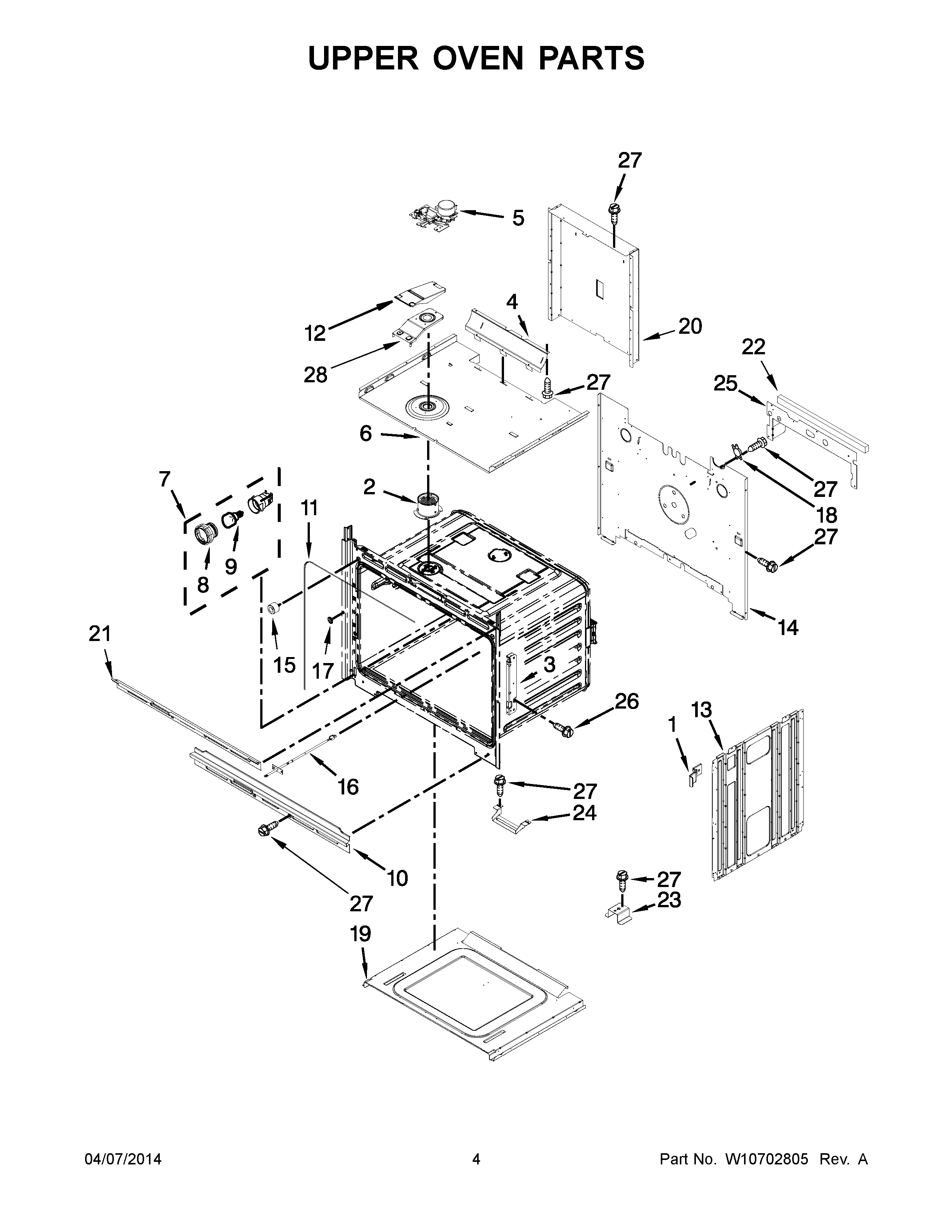

MEW9630AS02 03 – UPPER OVEN PARTS

MEW9630AS02 03 – UPPER OVEN PARTS

Written by

in

MEW9630AS02 03 – UPPER OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10347649
2	MAY W10282946
3	MAY W10616802
4	MAY W10671661
5	MAY W10314880
6	MAY W10641573
7	LIGHT, INDICATOR
8	MAY W10412722
9	MAY W10412711
10	MAY W10283040
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10696134
15	BUMPER & SCREW
16	MAY 7430P043-60
17	MAY W10283016
18	THERMOSTAT
19	MAY W10282900
20	DUCT, CHASSIS BACK
21	VENT, TOP 30"
22	BLOCK, FOAM
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	MAY W10504028
26	MAY W10254050
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
