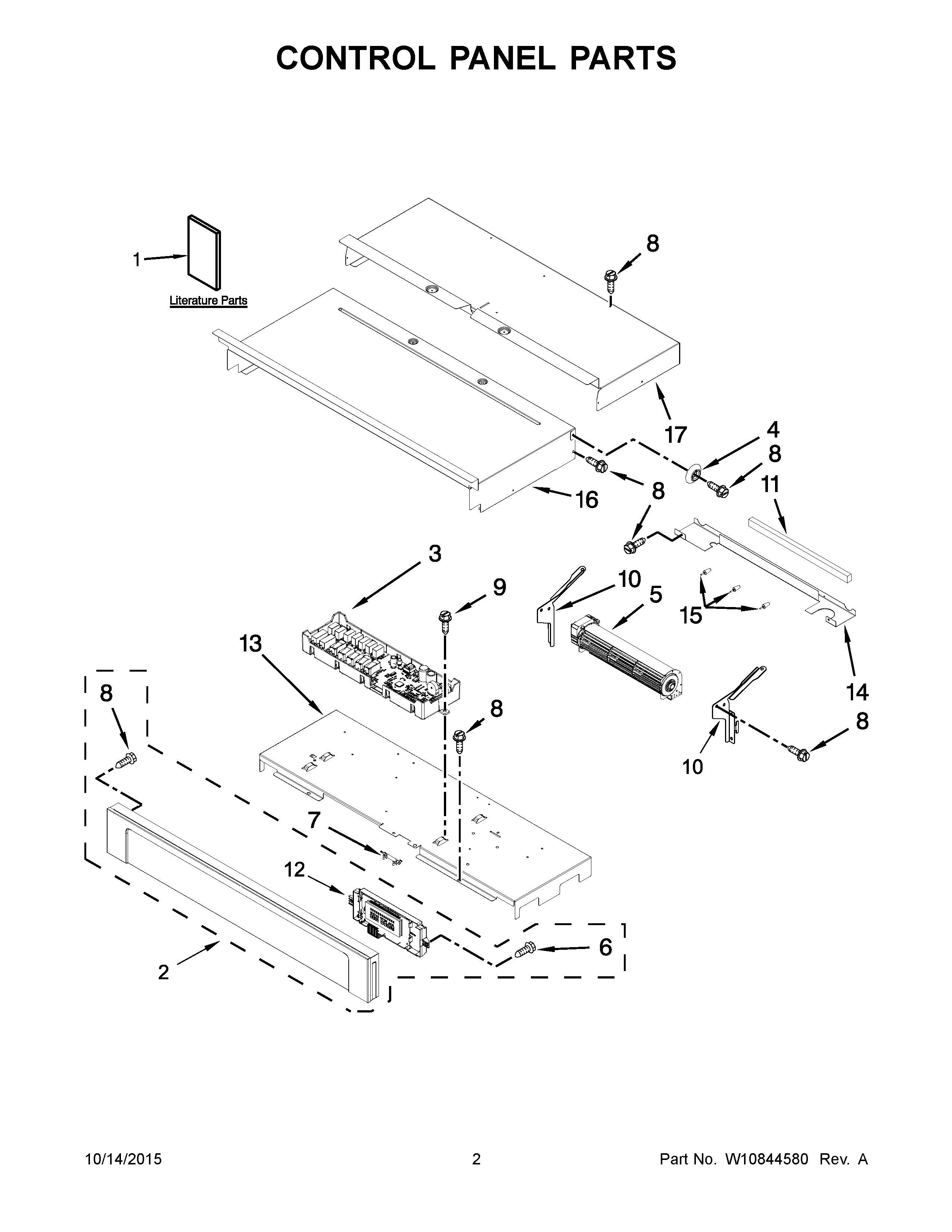

MEW9630DS02 02 – CONTROL PANEL PARTS

MEW9630DS02 02 – CONTROL PANEL PARTS

Written by

in

MEW9630DS02 02 – CONTROL PANEL PARTS

Products

Position	Product
NI	CLIP, HARNESS
NI	BRACKET, HARNESS
NI	CLAMP, CONDUIT
NI	MAY W10774727
NI	STRAP, LEAD GROUND
NI	HARNESS, SIGNAL
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, DOOR LATCH
NI	HARNESS, EOL (MRC)
NI	MAY 4450800
NI	MAY W10679413
1B	MAY W10796080
1A	MAY W10674133
1	MAY W10795607
2	MAY W10812323
3	MAY W10759200
4	SPACER, LATERAL
5	MAY W10661038
5A	MAY W10641253
6	MAY 7101P403-60
7	MAY W10545291
8	MAY 7101P426- 60
9	MAY 7101P434-60
10A	BRACKET, BLOWER (RIGHT)
10	BRACKET, BLOWER (LEFT)
11	BLOCK, FOAM
12	ASSEMBLY, DISPLAY
13	MAY W10347650
14	CHASSIS, BACK DIVIDER
15	MAY W10351295
16	MAY W10318192
17	CHASSIS, COVER TOP BACK 30"
