MEW9630DS02 03 – OVEN PARTS

MEW9630DS02 03 – OVEN PARTS

Written by

in

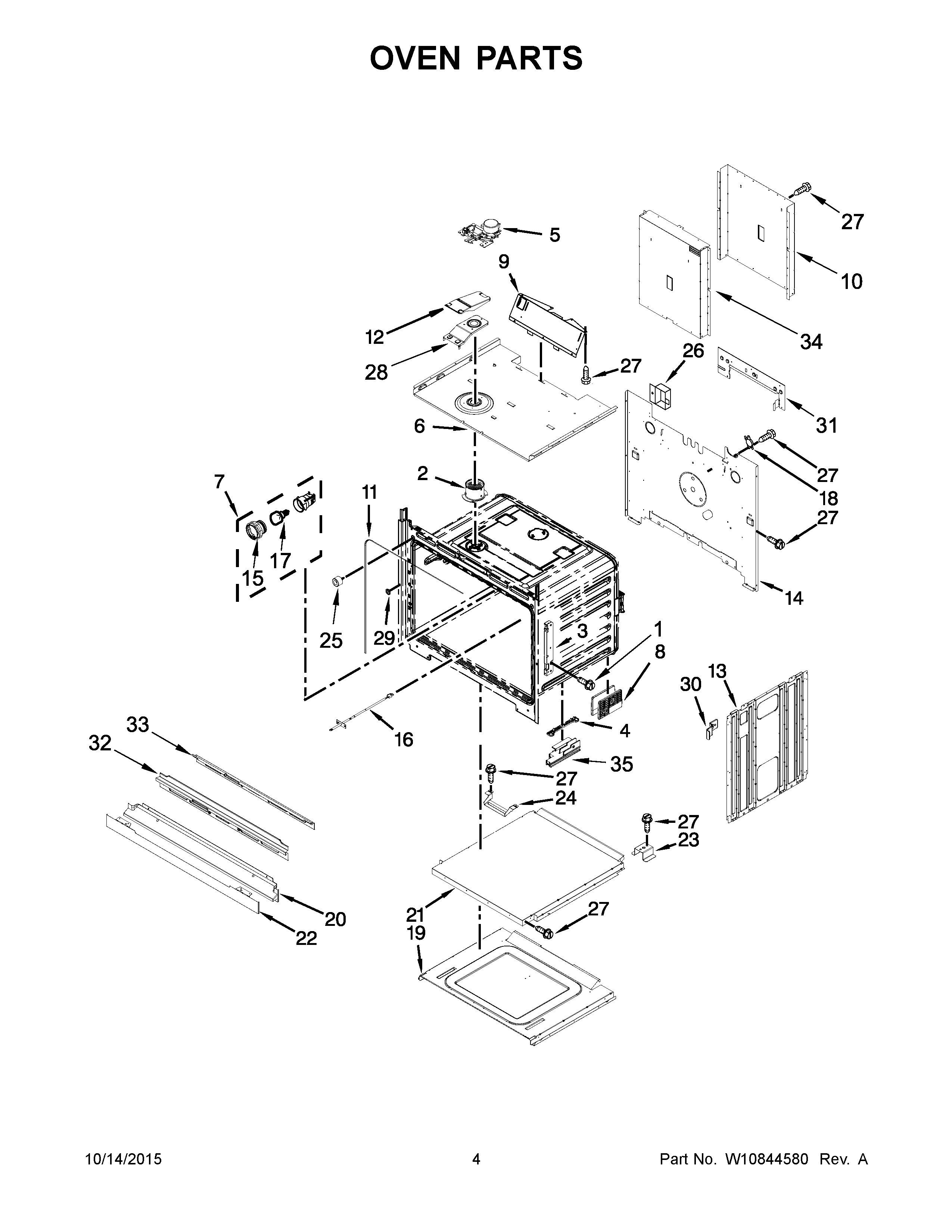

MEW9630DS02 03 – OVEN PARTS

Products

Position	Product
NI	MAY W10282944
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10254050
2	MAY W10282946
3	MAY W10616802
4	SPACER, BASE
5	MAY W10314880
6	MAY W10813743
7	MAY W10734063
8	FOOT, BASE
9	MAY W10641572
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	MAY W10813703
15	MAY W10412722
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	MAY W10282900
20	MAY W10351279
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10283016
30	MAY W10618106
31	MAY W10588736
32	MAY W10283040
33	VENT, TOP 30"
34	DUCT, CHASSIS BACK
35A	MAY W10618104
35	MAY W10618103
