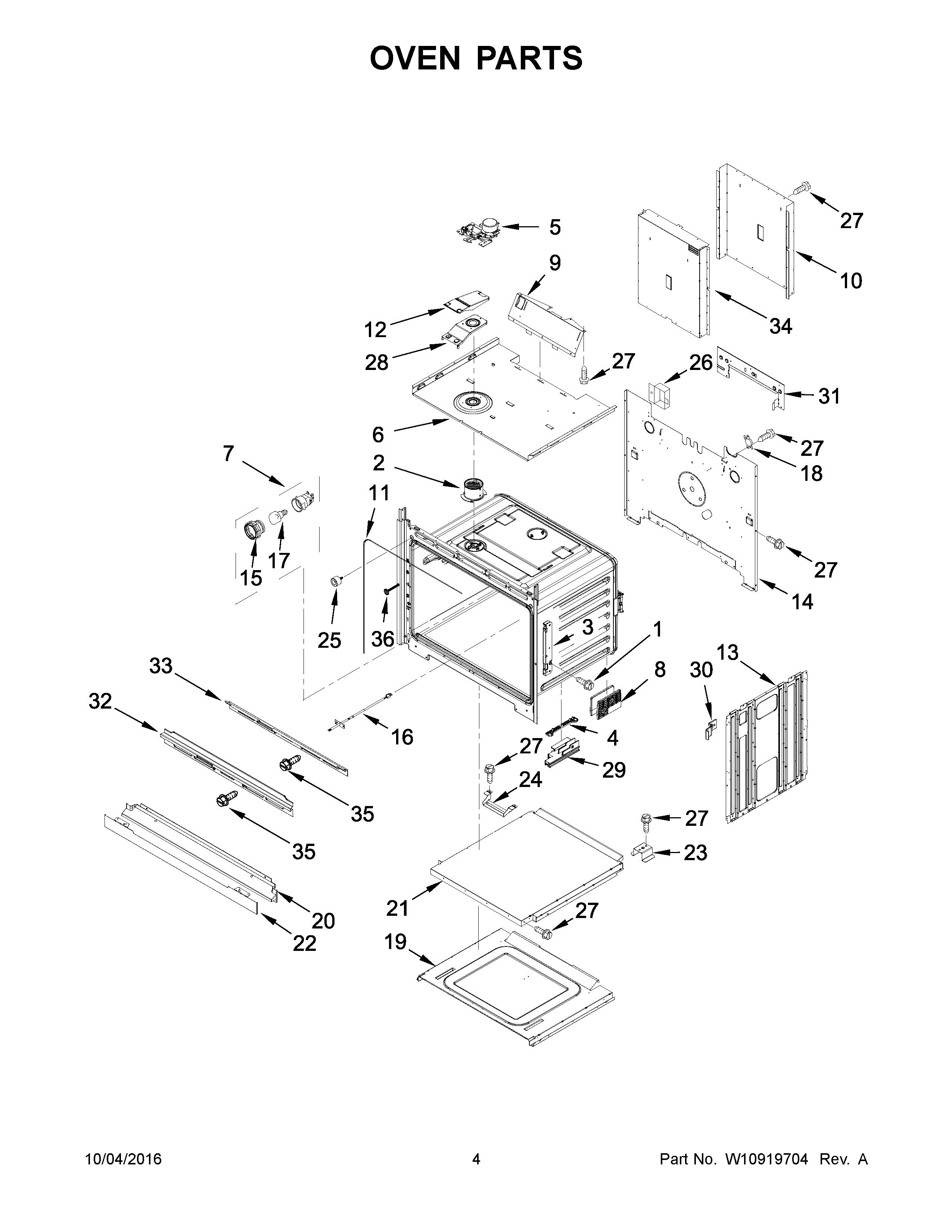

MEW9630FW00 03 – OVEN PARTSadmin2025-04-26T09:07:37+00:00MEW9630FW00 03 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY W10282944 |
| NI | INSULATION, WRAP |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY W10254050 |
| 2 | MAY W10282946 |
| 3 | MAY W10616802 |
| 4 | SPACER, BASE |
| 5 | LATCH, MOTORIZED |
| 6 | MAY W10813743 |
| 7 | MAY W10734063 |
| 8 | FOOT, BASE |
| 9 | MAY W10641572 |
| 10 | DUCT, CHASSIS BACK (LOWER) |
| 11 | MAY W10282960 |
| 12 | COVER, VENT EXHAUST |
| 13 | SIDE, CHASSIS (RIGHT) |
| 14 | MAY W10813703 |
| 15 | MAY W10412722 |
| 16 | MAY W10622170 |
| 17 | MAY W10412711 |
| 18 | THERMOSTAT |
| 19 | BASE, CHASSIS |
| 20 | MAY W10327373 |
| 20A | MAY W10506344 |
| 21 | CHASSIS, BOTTOM DUCT |
| 22 | MAY W10351236 |
| 22A | MAY W10504026 |
| 23 | MAY W10213759 |
| 24 | SPACER, CHASSIS BOTTOM DUCT |
| 25 | BUMPER & SCREW |
| 26 | MAY 8285593 |
| 27 | MAY 7101P426- 60 |
| 28 | BASE, VENT EXHAUST |
| 29 | MAY W10618103 |
| 29A | MAY W10618104 |
| 30 | MAY W10347649 |
| 31 | MAY W10588736 |
| 32 | MAY W10283040 |
| 33 | VENT, TOP 30" |
| 34 | DUCT, CHASSIS BACK |
| 35 | MAY W10607120 |
| 36 | MAY W10283016 |
