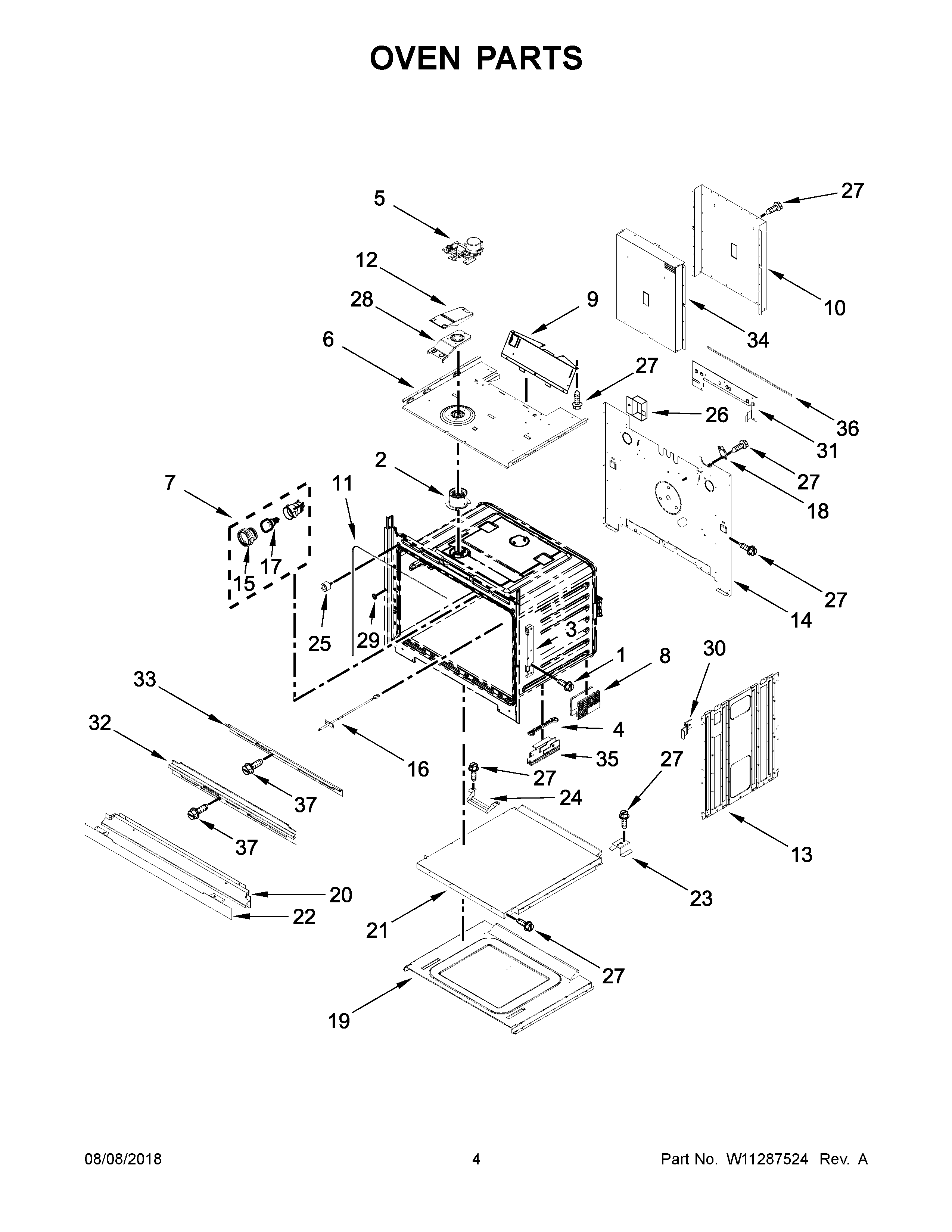

MEW9630FZ03 03 – OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
NI	MAY W10282944
1	MAY W10254050
2	TUBE, VENT
3	MAY W10616802
4	SPACER, BASE
5	LATCH, MOTORIZED
6	TOP, CHASSIS
7	MAY W10734063
8	FOOT, BASE
9	DEFLECTOR, BLOWER
10	DUCT, CHASSIS BACK (LOWER)
11	MAY W10282960
12	COVER, VENT EXHAUST
13	SIDE, CHASSIS (RIGHT)
14	BACK, CHASSIS
15	MAY W10412722
16	MAY W10622170
17	MAY W10412711
18	THERMOSTAT
19	BASE, CHASSIS
20	ASSEMBLY, BOTTOM VENT (STAINLESS)
21	CHASSIS, BOTTOM DUCT
22	TRIM, BOTTOM VENT (STAINLESS)
23	MAY W10213759
24	SPACER, CHASSIS BOTTOM DUCT
25	BUMPER & SCREW
26	MAY 8285593
27	MAY 7101P426- 60
28	BASE, VENT EXHAUST
29	MAY W10283016
30	MAY W10347649
31	MAY W10588736
32	MAY W10283040
33	VENT, TOP 30"
34	DUCT, CHASSIS BACK
35A	MAY W10618104
35	MAY W10618103
36	GASKET, RUBBER
37	MAY 7101P427-60
